GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-19
Copyright © 2013, Diversey Inc.
05.14.10 tank group - clear water tank - 455B_455E_V1.00.fm
5.2 Tank group
5.2.1 Removing of clear water tank

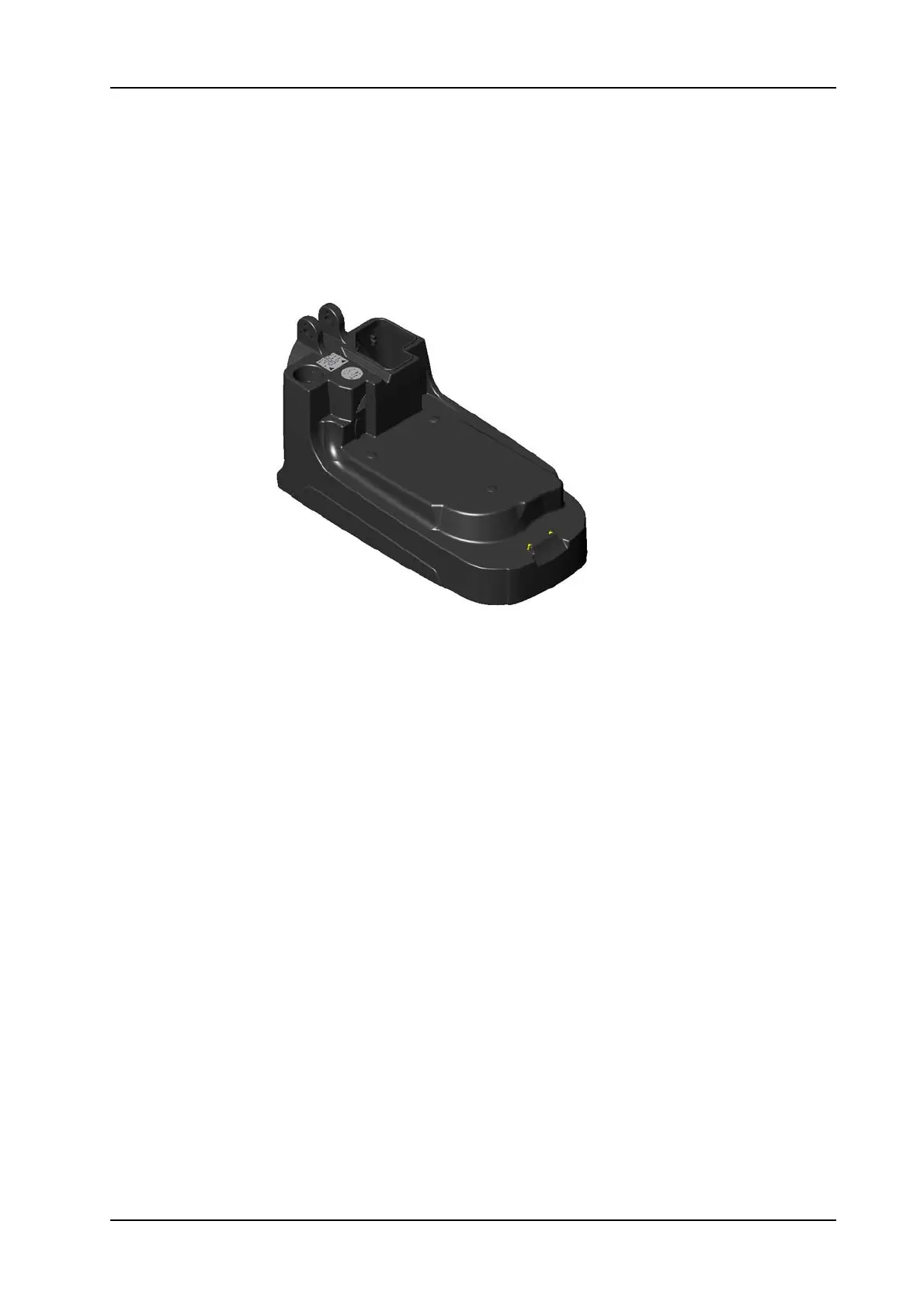

Picture 23: Clear water tank
• Disconnect the two flexible hoses (02/106,132) from the tank
cover (02/101).
• Remove the tank cover and the recovery tank (02/105).
• Loosen the hose clamp (03/118) from the water regulation set
(03/122).
• Remove the hose from the water regulation set.
• Remove the 5 screws (02/124) from the cover, vacuum unit (03/
103).
• Unclip the cable cover (03/102) from the cover, vacuum unit.
• Remove the cover, vacuum unit together with the vacuum motor.
• Unlock the battery compartment by removing the two screws
(02/122) from the tank brackets (02/123) on the LH and RH side.
• Tilt the clear water tank.
