GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-41
Copyright © 2013, Diversey Inc.
05.42.10 lower part - castor wheel - 455B_455E_755B eco_755E_755B power_855B power_V1.00.fm
5.7 Lower part
5.7.2 Mounting of castor wheel

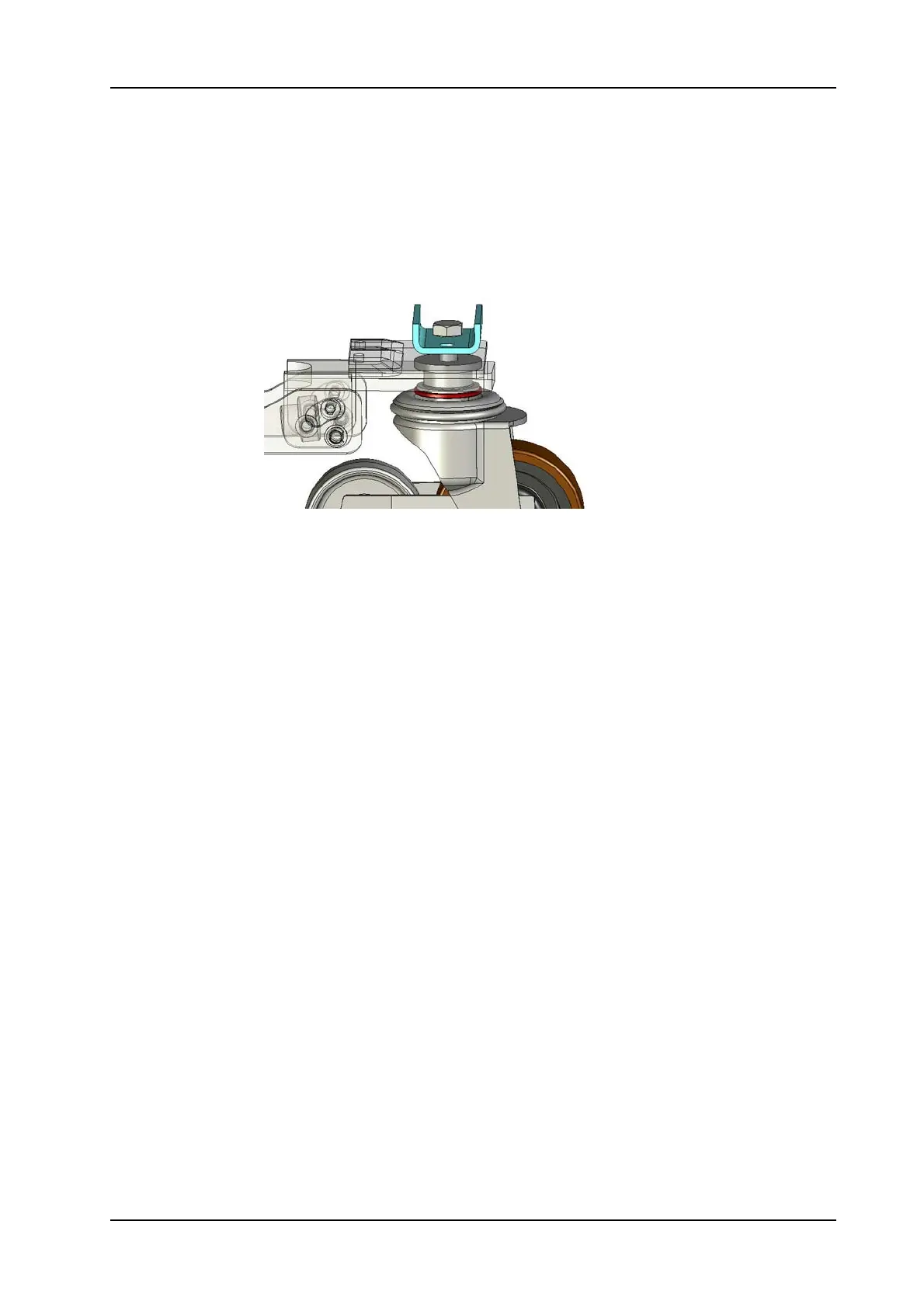

Picture 63: Castor wheel detail
• Assemble castor wheel and squeegee support according to e-
spares.
• Tighten the fixation screw with a 19 mm fork spanner.
• Lock battery compartment on the RH side with the screw of the
locking system.
• Lift up the machine.
• Lock battery compartment on the LH side with the screw of the
locking system.
Adjustment
Tighten the screw with 70 Nm.
Service
Apply gear/bearing lubricant (455:07/131, 755B:05/134, 755E:06/
127) on the bush (455:07/123, 755B:05/114, 755E:06/124).
Apply adhesive locking (455:07/130, 755B:05/133, 755E:06/118) on
screw (455:07/103, 755B:05/104, 755E:06/117).
