5.1 Handle
5.1.6 Mounting of handle adjustment lever

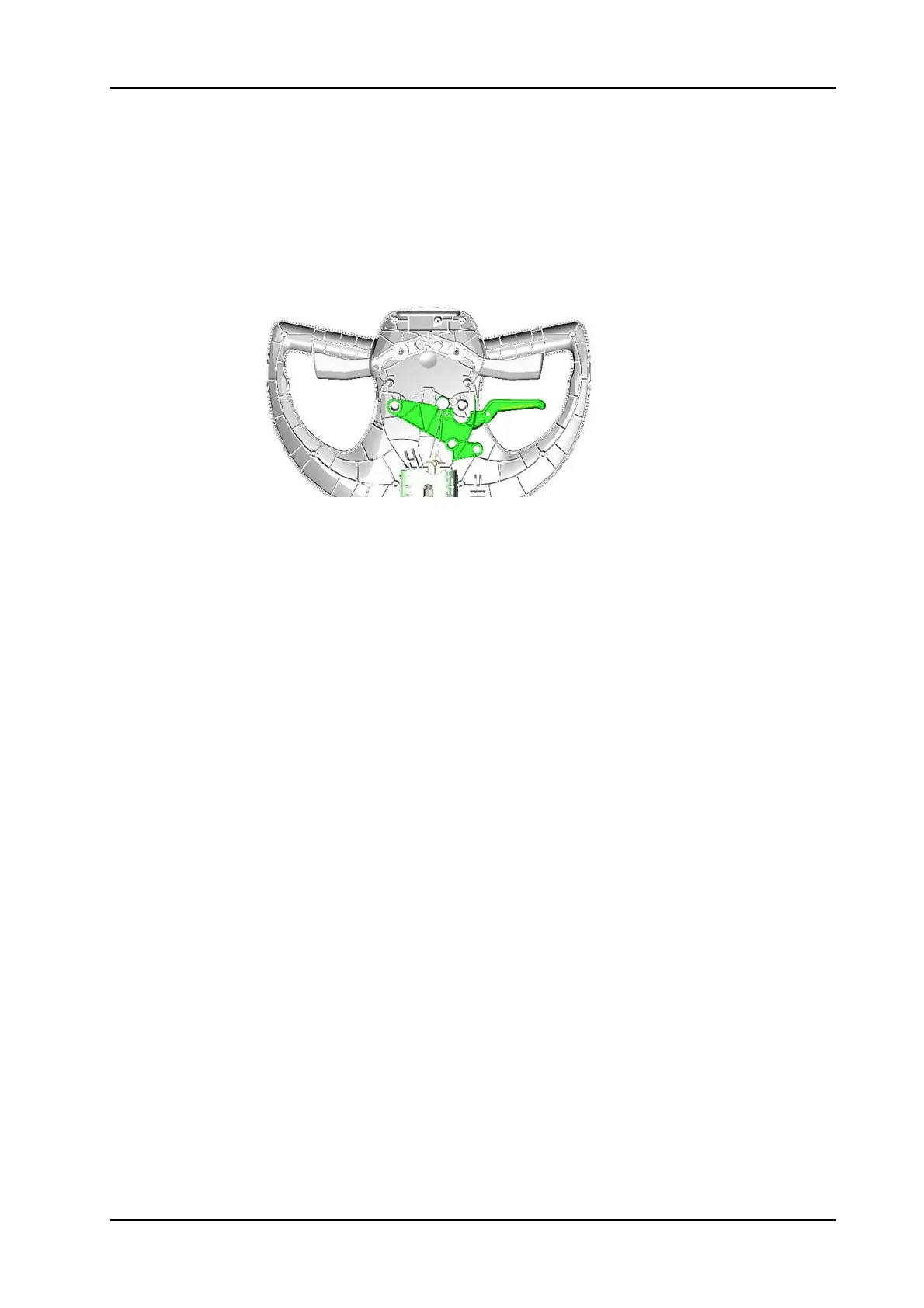

Picture 8: Handle adjustment lever
• Mount the handle adjustment lever onto handle.
• Mount the eccentric shaft together with the end bolt of the
bowden cable.
• Complete assembling according to the chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
