GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-52
Copyright © 2013, Diversey Inc.
05.68.50 brush drive - motor & motor belt - 455B_755B eco_755B power_855B power_V1.00.fm
5.9 Brush drive
5.9.7 Removing of motor & motor belt

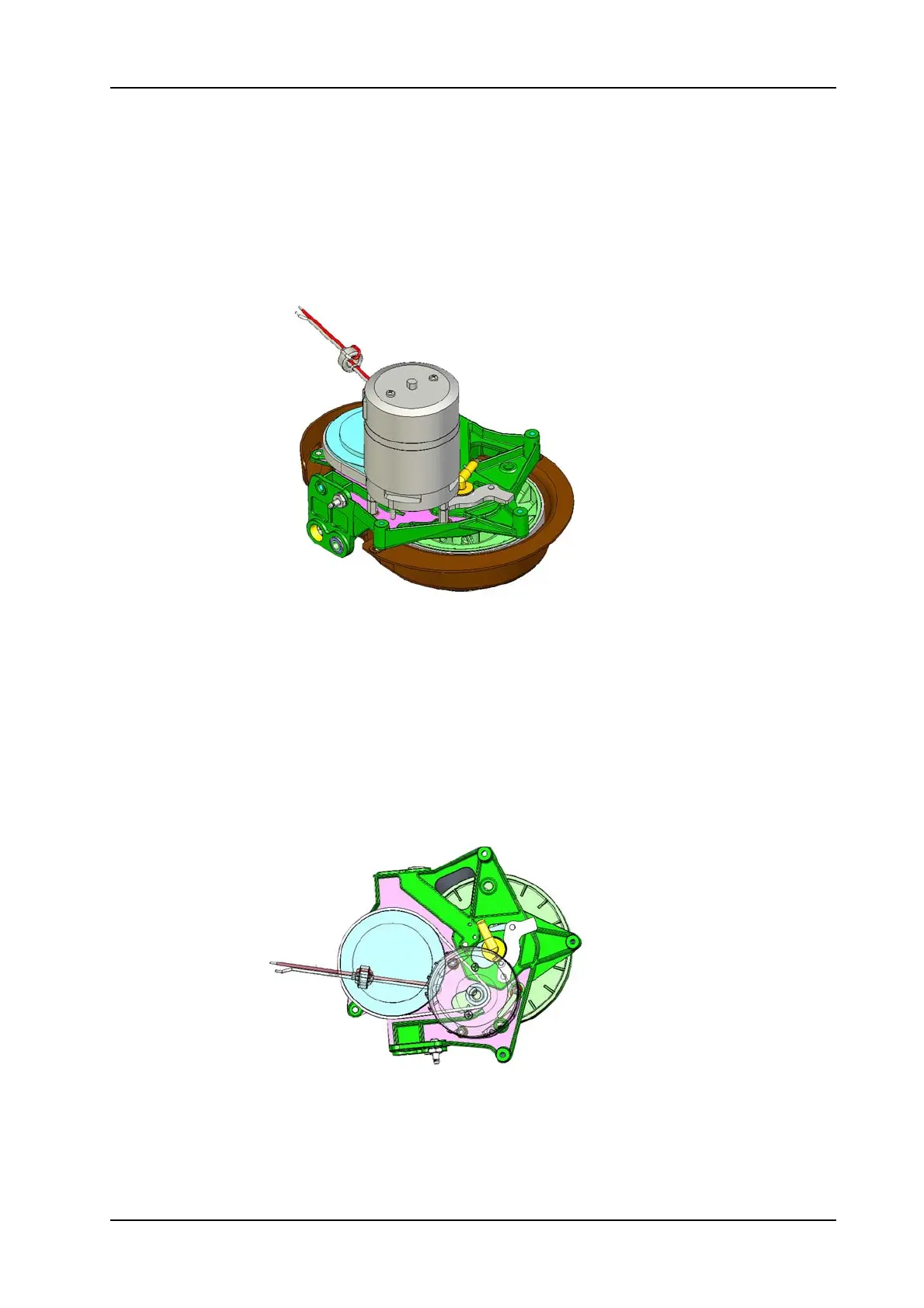

Picture 80: Brush drive
• Remove brush drive unit according to chapter REMOVING OF
BRUSH DRIVE UNIT.
• Remove brush belt according to chapter REMOVING OF BRUSH
BELT - NEW SETUP/OLD SETUP.
• Remove brush pulley according to chapter REMOVING OF PULLEY
- NEW SETUP/OLD SETUP.
• Remove the two screws (09/134) and the one counter head
screw (09/135).
• Remove the motor (09/131) and the motor belt (08/111).
Picture 81: Brush motor belt
