GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-19
Copyright © 2013, Diversey Inc.
05.10.36 handle - articulation - 455B_V1.00.fm
5.1 Handle
5.1.13 Mounting of articulation

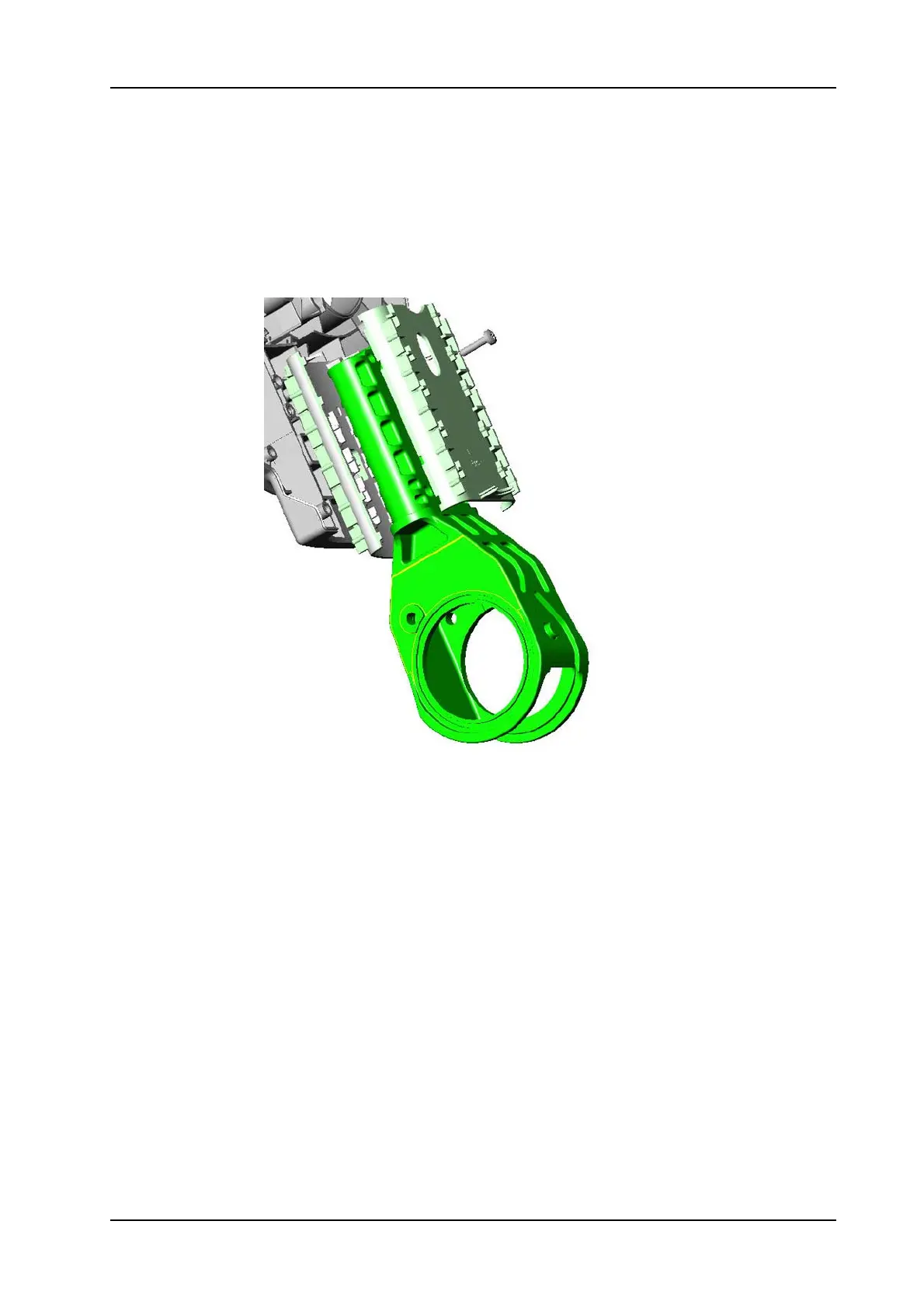

Picture 22: Articulation
• Mount the guide bar.
• Mount the articulation.
• Mount the screw from the handle housing.
• Mount the bowden cable according to chapter MOUNTING OF
BOWDEN CABLE.
• Mount the toothrockers according to chapter MOUNTING OF
TOOTHROCKER.
• Mount the handle cover according to chapter MOUNTING OF
HANDLE COVER AND ELECTRONICS.
