GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-47
Copyright © 2013, Diversey Inc.
05.66.10 brush drive - brush drive unit - 455B_755B eco_755B power_855B power_V1.00.fm

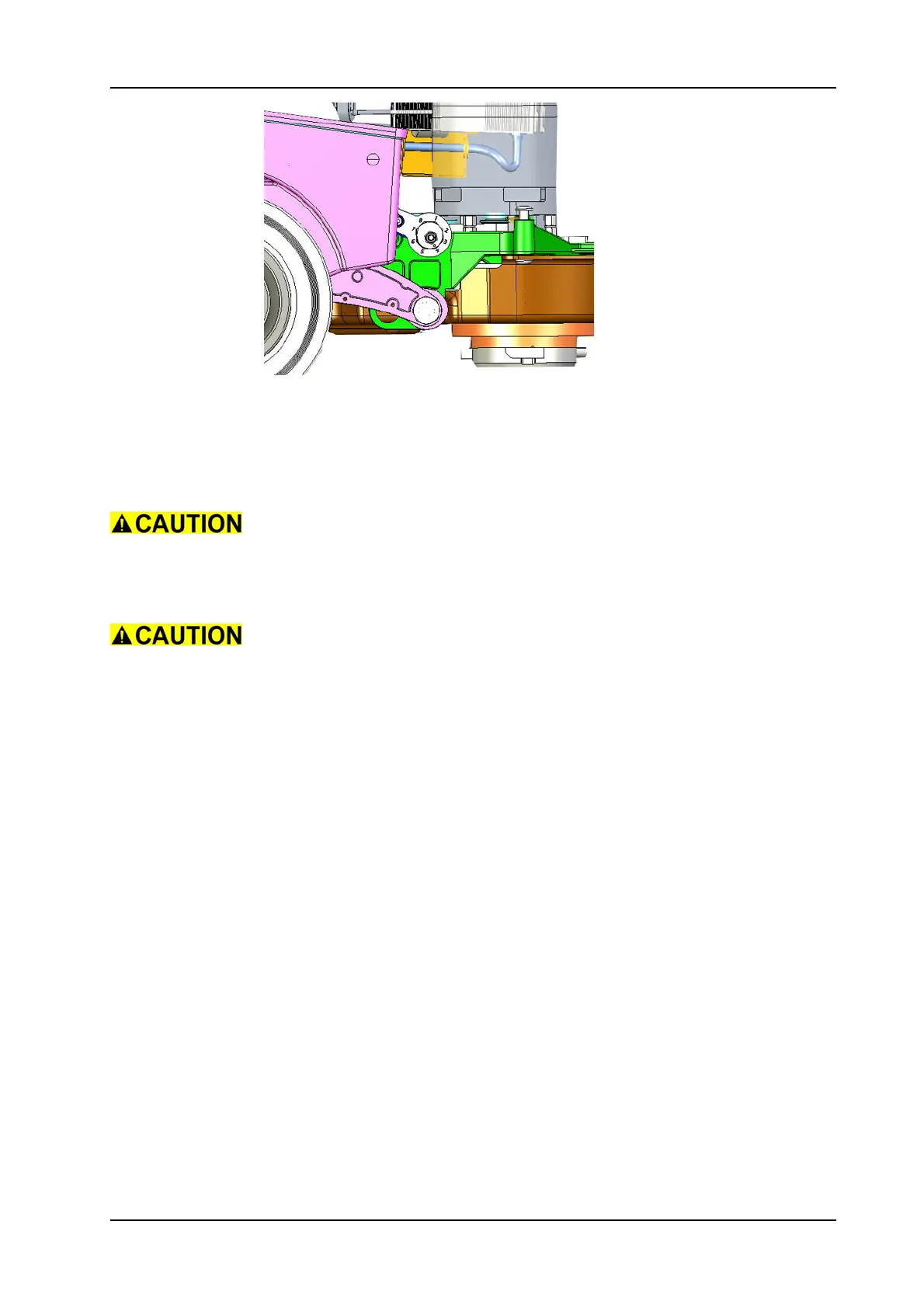

Picture 72: Brush drive setting RH
• Position a new self locking nut (M6) at the eccentric disc.
• Position two new self locking nuts (M8) at the bold and the
eccentric shaft.
• Tighten all self locking nuts.
Do not use the locking lever (455B:06/116, 755B:07/116) to tighten
the eccentric shaft (455B:06/110, 755B:07/110).
• Connect the brush motor to the connection block.
Connect the wires of the brush motor and the cable strand matching
the colours.
• Connect the fresh water hose to the brush drive unit.
• Position the brush housing on the brush drive unit.
• Position the brush housing screws and tight them.
• Close and lock battery compartment and lock it with the screws
of the looking system.
