Model PH90 Operating Procedures

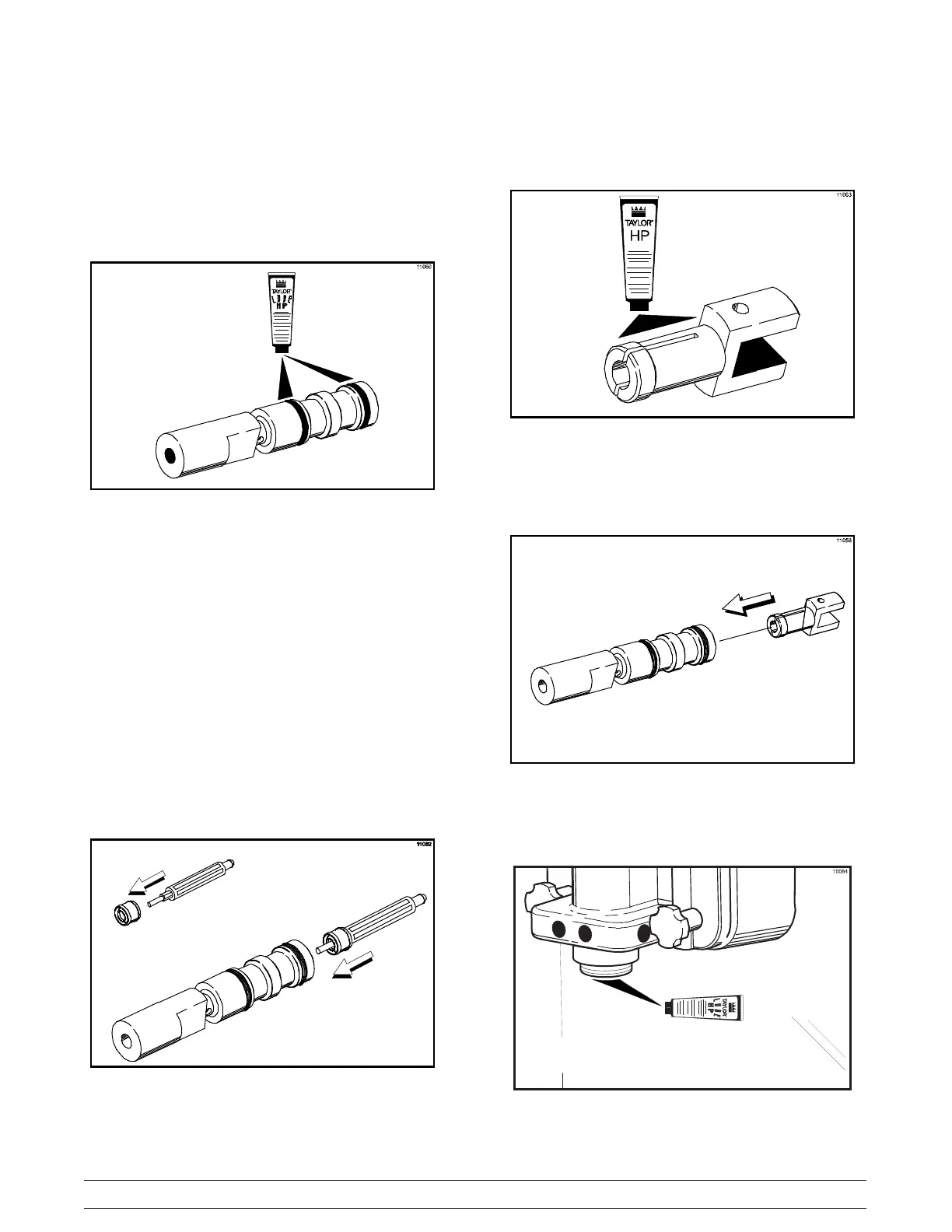

Step 8
Inspect draw valve o- rings for cuts or nicks and
replace if they are damaged. If draw valve o- rings are
in good condition, slide the two o- rings into the
grooves of the draw valve and lubricate.
Figure 17
Step 9
Lubricate the outer diameter of the spinner shaft seal.
Fill the cups on each end of the seal with lubricant.
Insert the spinner shaft seal into the bottom of the draw
valve as far as it will go. The spinner shaft seal should
fit into the seal groove located inside the draw valve
cavity.
Important: Inspect to see that the spinner shaft seal
is correctly installed in the groove. A worn, missing, or
improperly installed spinner shaft seal will cause
product leakage out the top of the draw valve.
Figure 18
Step 10
Place an even coat of lubricant on the smaller end of
the driven spinner.
Figure 19
Step 11
Squeezing the split end together , insert the driven
spinner through the metal opening of the draw valve
until it snaps into place.
Figure 20
Step 12
Lubricate the inside of the freezer door spout, top and
bottom.
Figure 21
