Model PH90Operating Procedures
Step 2

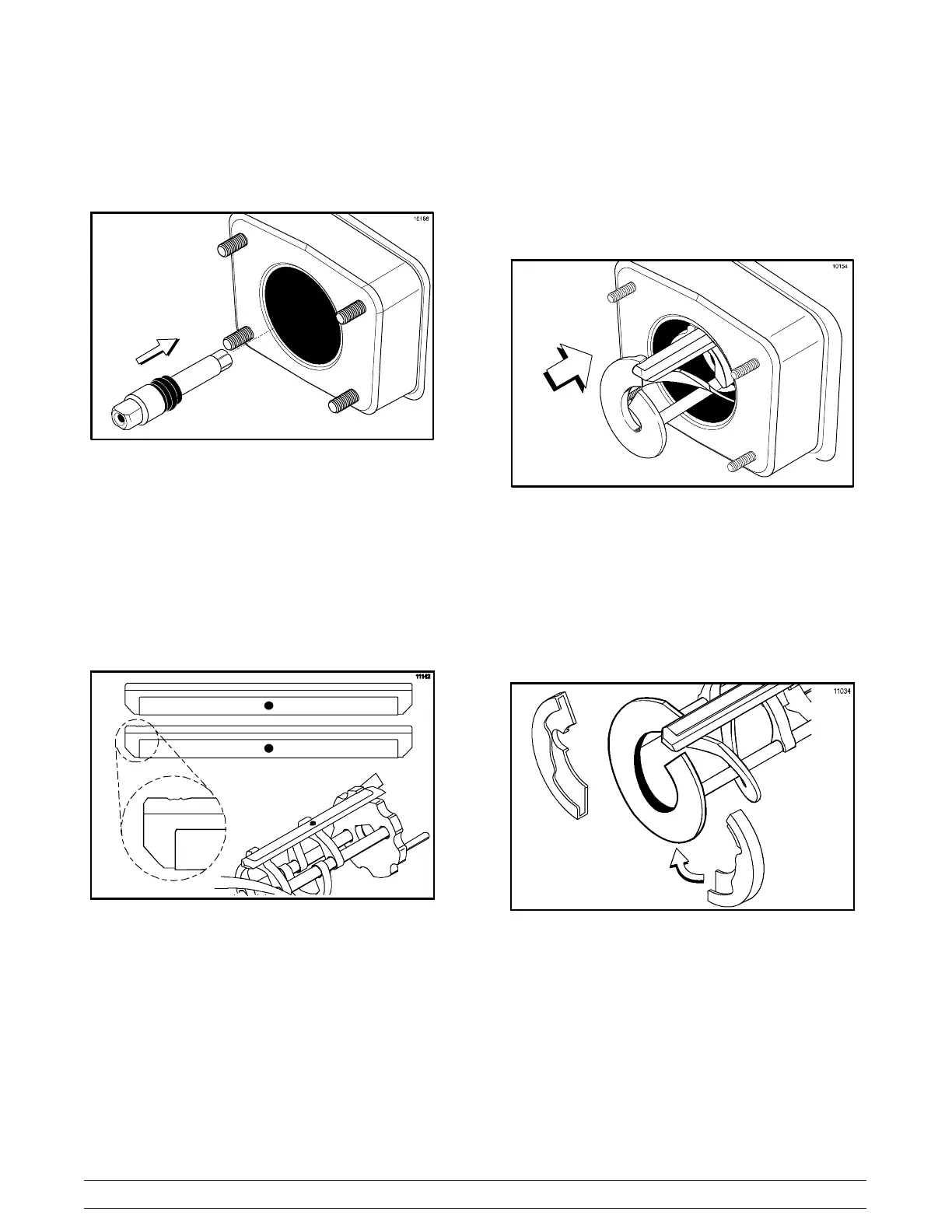

Insert the drive shaft through the rear shell bearing in
the freezing cylinder and engage the hex end firmly
into the drive coupling.
Figure 30
Step 2
Check the scraper blades for any nicks or signs of
wear. If any nicks are present, or if the blades are worn,
replace both blades. If the blades are in good
condition, install the scraper blade clips over the
scraper blades. Place the rear scraper blade over the
rear holding pin on the beater .
Note: Scraper blades should be replaced every 3
months.
Figure 31
Note: The hole on the scraper blade must fit securely
over the pin to prevent costly damage.
Step 3
Holding the rear blade on the beater, slide it into the
freezing cylinder halfway. Install the front scraper
blade over the front holding pin.
Figure 32
Step 4
Install the beater shoes.
Figure 33
