Model PH90 Operating Procedures

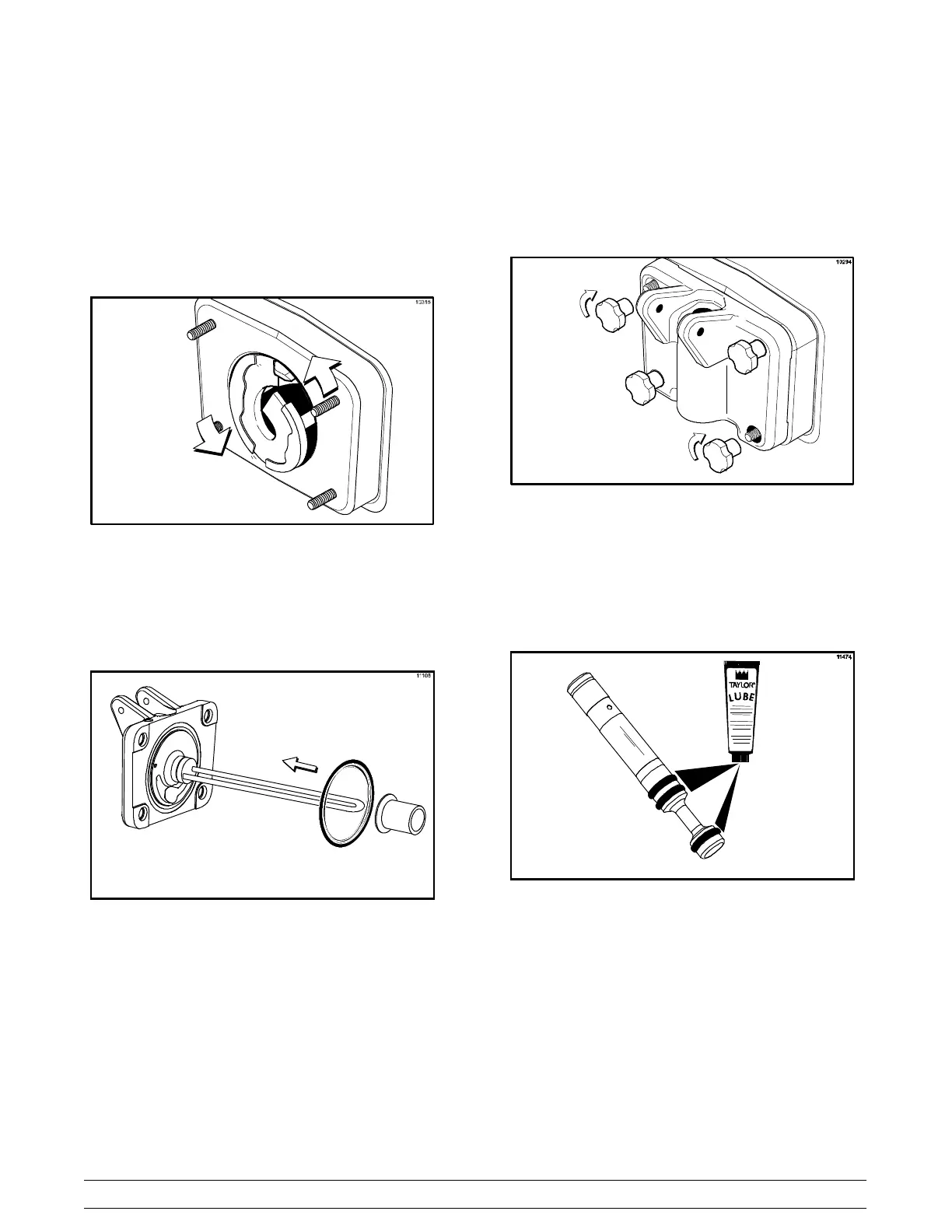

Step 5
Slide the beater assembly the rest of the way into the
freezing cylinder.
Make sure the beater assembly is in position over the
drive shaft. Turn the beater slightly to be certain that
the beater is properly seated. When in position, the
beater will not protrude beyond the front of the freezing
cylinder.
Figure 34
Step 6
Place the door gasket into the groove on the back of
the freezer door . Slide the front bearing over the baffle
rod so the flanged edge is against the door . DO NOT
lubricate the gasket or bearing.
Figure 35
Step 7
Insert the baffle rod through the beater in the freezing
cylinder. With the door seated on the freezer studs,
install the handscrews. Tighten equally in a
criss- cross pattern to insure the door is snug.
Figure 36
Step 8
Install the draw valve. Slide the 3 o- rings into the
grooves on the draw valve and lubricate.
Figure 37
