Model PH90 Operating Procedures
Note: The soft serve side features an adjustable draw
handle to provide portion control, giving a better
consistent quality to your product and controlling
costs. The draw handle should be adjusted to provide
a flow rate of 5 to 7- 1/2 oz. (142 g. to 213 g.) of product
by weight per 10 seconds. To INCREASE the flow rate,
turn the adjustment screw COUNTER- CLOCK WISE
and CLOCKWISE to DECREASE the flow rate.
IMPORTANT: Once the draw rate is
set, tighten the lock nut with a wrench.

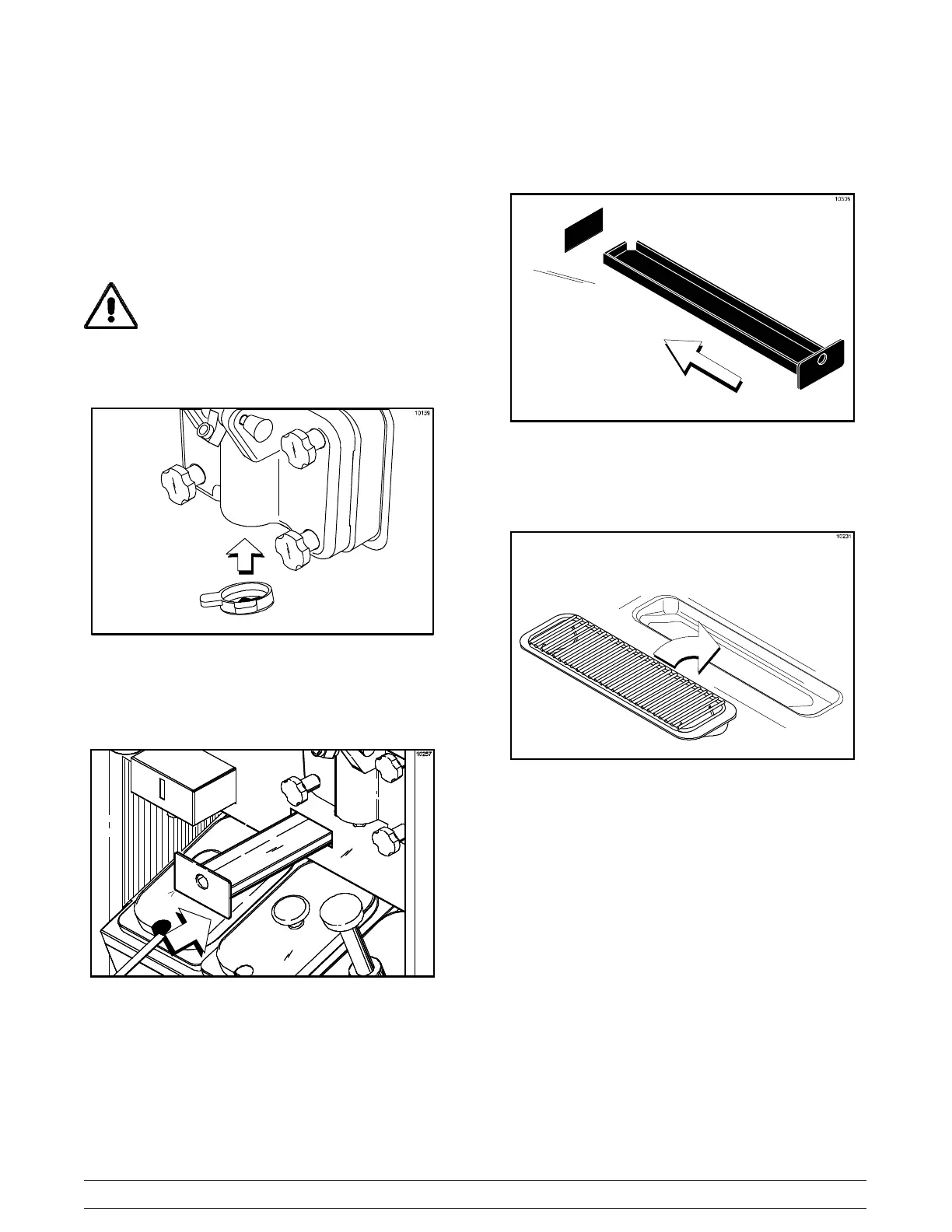

Step 13
Snap the design cap over the bottom of the door spout.
Figure 42
Step 14
Slide the long drip pan into the hole in the front panel
above the syrup topping dispensers. Slide the two
shorter drip pans into the holes in the rear panel.
Figure 43
Step 15
Install the two notched drip pans in the left and right
side panels.
Figure 44
Step 16
Install the front drip tray and splash shield under the
door spouts.
Figure 45
