56
Model PH90Operating Procedures

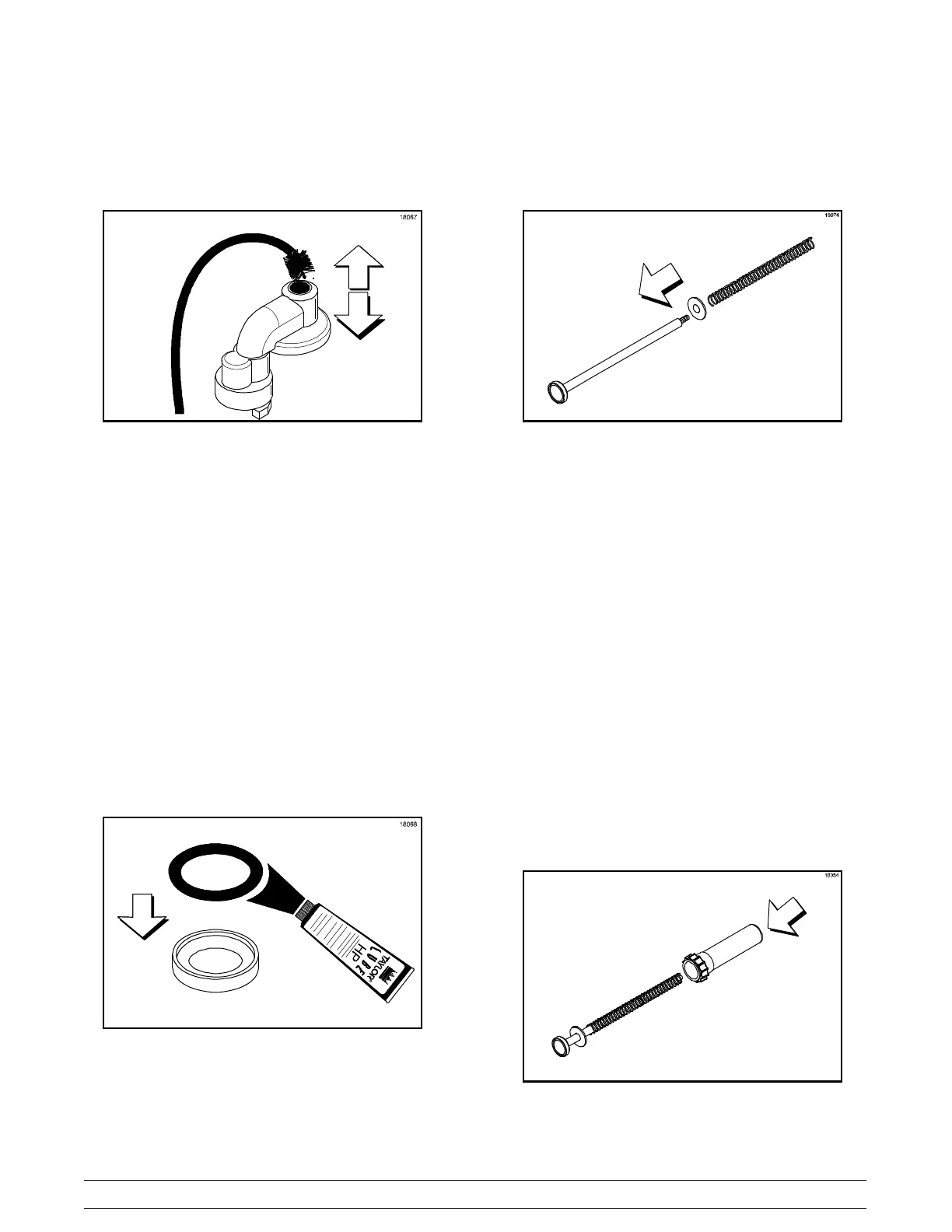

Step 10
Insert the brush into the bottom side of the inlet valve.
Move the brush back and forth to scrub this area,
specifically around the steel ball.
Figure 116
Step 11
Advance the brush completely through the inlet valve,
and pull the brush out of the valve body.
Step 12
Rinse all parts with clean water.
Step 13
Sanitize parts following your local sanitation
requirements. Allow parts to air dry after sanitation.
Syrup Pump Assembly
After pump disassembly and cleaning, assemble the
pump.
Step 1
Lubricate and install the seal o- ring into the seal.
Figure 117
Step 2
Install the seal assembly onto the piston end of the
plunger assembly.
Step 3
Install the washer and spring onto the plunger
assembly.
Figure 118
Step 4
Install the plunger insert into the plunger tube by
positioning the end of the insert with the beveled edge
and smaller hole to enter into the plunger tube first.
Step 5
Install the plunger nut onto the plunger tube.
Step 6
Install the knob o- ring into the groove provided in the
knob.
Step 7
Install the plunger tube assembly onto the plunger
assembly by inserting the plunger assembly into the
larger opening on the plunger tube. Push the plunger
assembly, compressing the spring, until the threaded
end of the stem projects through the smaller opening
on the plunger tube and the insert.
Figure 119
