58  Chapter 7 - Parameters Description User Manual
d.052 Motor OL (Motor overload)
Motor overload (100% = alarm threshold).
Code Name [Code] & Function Default MIN MAX Unit Variation IPA
d.050 Heatsink temp °C 1 010
d.051 Drive OL % 0.1 011
d.052 Motor OL % 0.1 012
Inputs/Outputs
d.100 Dig inp status (Digital inputs status)
Status of the digital inputs acquired by the drive. They can come from drive regulation board terminal inputs or
virtual inputs (ex.: by serial or field bus cards).

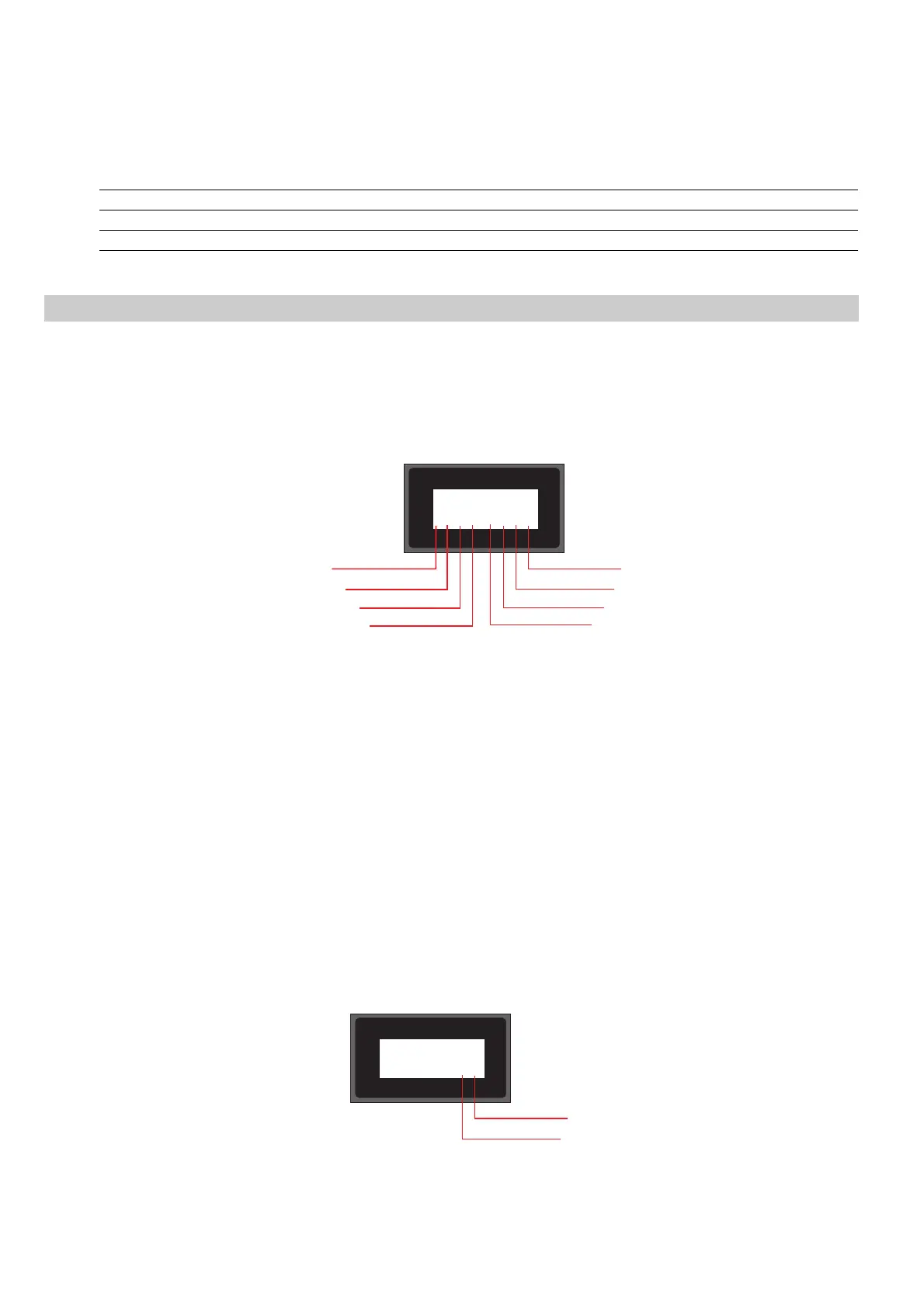

Example of displaying digital inputs with 7 segments display:
R
.I
..I
.
Digital input2=OFF
Digital input1=ON
Digital input3=OFF
Digital input4=OFF
Digital input8=OFF
Digital input7=OFF
Digital input6=OFF
Digital input5=ON
d.101 Term inp status (Teminal inputs status)
Status of the digital inputs terminal of the drive regulation board.
See example d.100
d.102 Vir dig inp stat (Virtual digital inputs status)
Status of the virtual digital inputs received by serial link or field bus card.
See example d.100
d.150 Dig out status (Digital outputs status)
Status of the digital outputs executed by the drive, on the drive regulation terminal outputs or virtual outputs (ex.:
by serial or field bus cards).
Example of displaying, of digital outputs with 7 segments display:
R
..I
.
Digital output2=OFF
Digital output1=ON
.
