74
83532002 Rev C
SW1-3 setting
Output Voltage programming
VPGM (J1-9)
Current limit programming
IPGM (J1-10)
UP 0-10V 0-10V
DOWN 0-5V 0-5V
Table 7-3: SW1-3 Setting and Programming Range (Remote Voltage PGM)
1
14
1
25
1012
8
9
23 22
+
+
OUTPUT CURRENT
PROGRAMMING
OUTPUT
PROGRAMMING
J1 connector, rea
r panel view

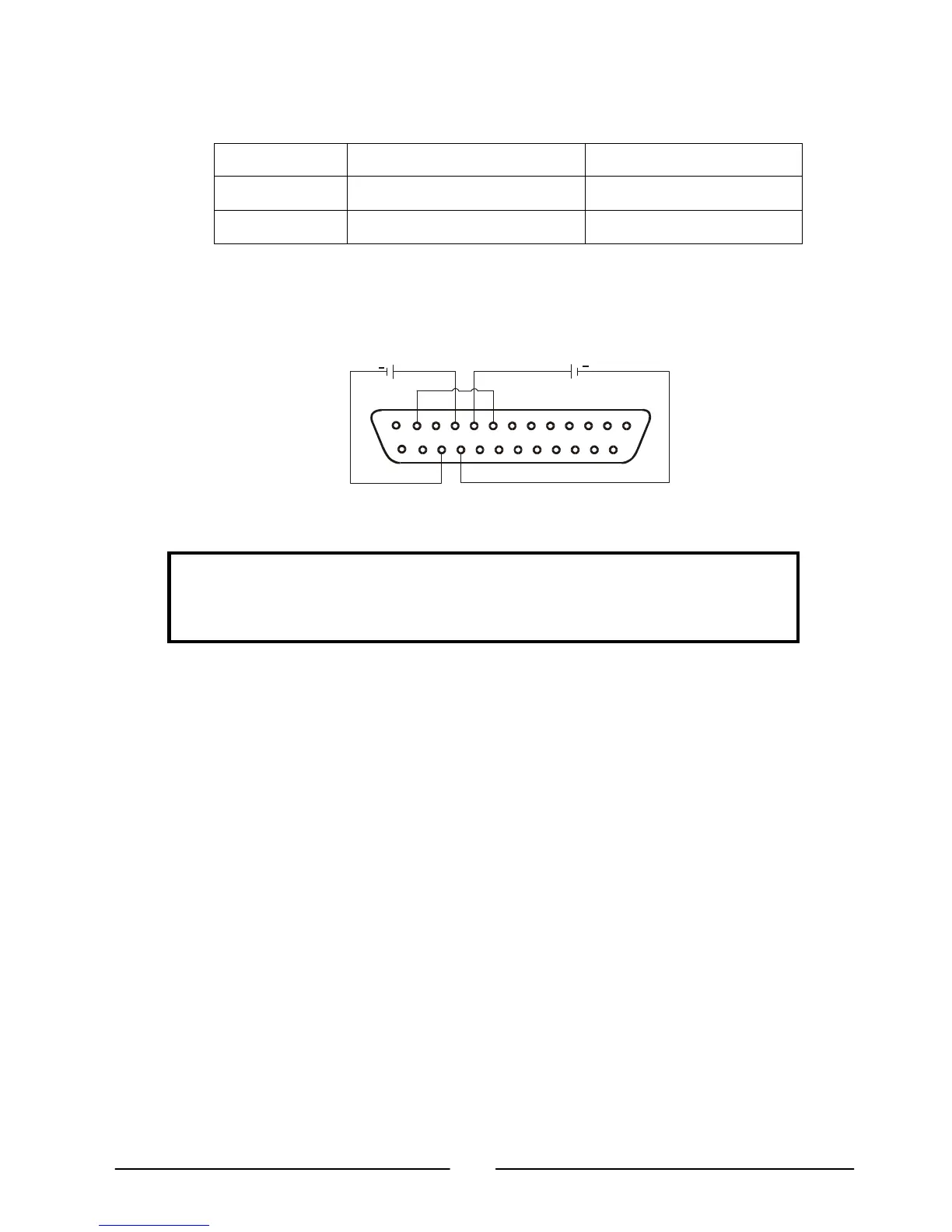

Fig. 7-1: Remote voltage programming connection
NOTE
Use a shielded cable (refer to Section 4.4)
