TEC MA-1595-1 SERIES - Display Indications and Error Messages

5. DISPLAY EO1-11152
5. DISPLAY
5- 1
5. DISPLAY
The operator display is located at the top of the ECR just above the keyboard.

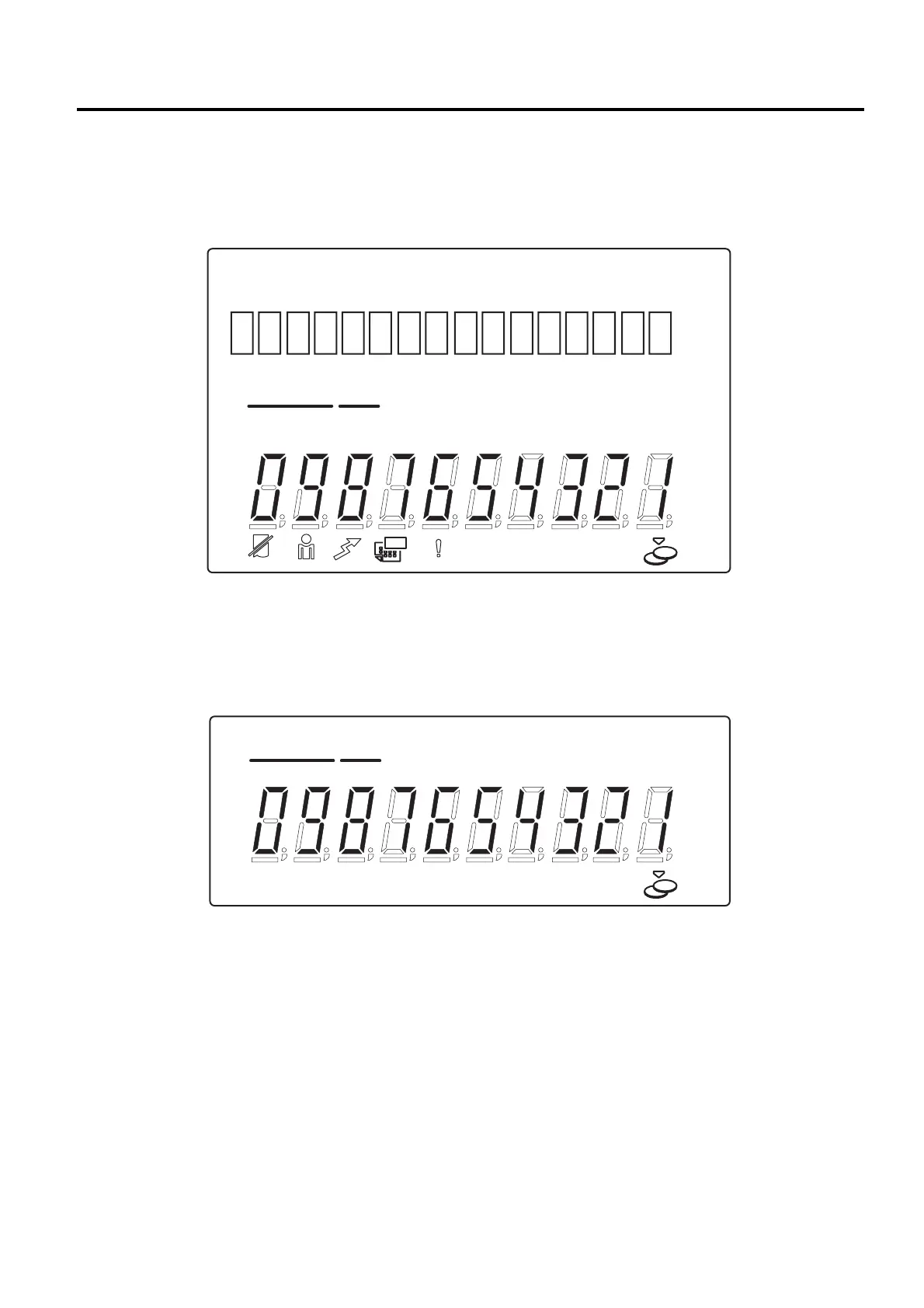

OPERATOR DISPLAY (Front Display)
Upper Row
Lower Row
The customer display can be moved horizontally, and thus is fully adjustable according to the position of the
customer.
CUSTOMER DISPLAY (Rear Display)
Lower Row
TL ST
DPT X
(
()
)
TL ST
DPT X
