TEC MA-1595-1 SERIES - Master-Satellite System Setup and RTR Declaration

1. INTRODUCTION EO1-11152
1. INTRODUCTION
1- 1
1. INTRODUCTION
Making the most of the functions of the previously described MA-1595 standalone, the MA-1595 can be
developed into a master-satellite system.
For Master-Satellite, a Batch-consolidation or Scanning system of a maximum of 16 terminals can be built. By
connecting a PC, the system can also be expanded into a transaction data capture system.
Operational functions on each terminal ECR basically stay the same as on a standalone ECR, except those
deleted, changed, or added for this M/S system use which are described later.

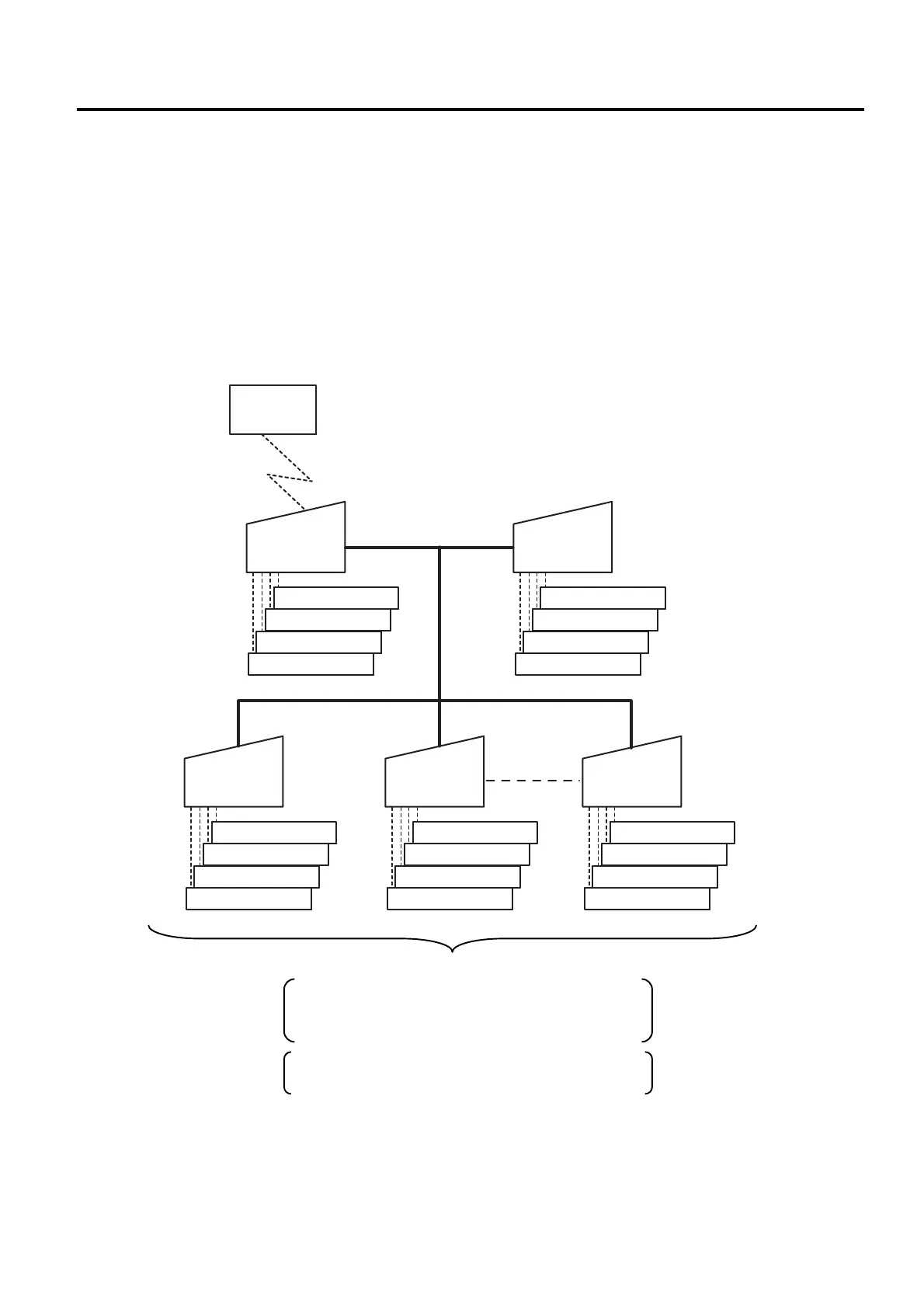

2. SYSTEM CONFIGURATION
Batch-consolidation System: Max. 16 terminals
Master Terminal ... 1 unit
Backup Master Terminal ... 1 unit System including
Satellite Terminal ... Max. 14 units Backup Master Terminal
or
Master Terminal ... 1 unit System not including
Satellite Terminal ... Max. 14 units Backup Master Terminal
Scanning System: Max. 4 terminals
Remote Slip Printer: TM-U295 (EPSON)
Scanner: PSC-6000/2500
Scale: SL-47
EFT: Data Tran-LT DATA CAP
Data Tran-SL DATA CAP
Satellite
Terminal
Remote Slip Printer
Scanner
Scale
EFT
RS-232C
Satellite
Terminal
Remote Slip Printer
Scanner
Scale
EFT
RS-232C
Satellite
Terminal
Remote Slip Printe
r
Scanner
Scale
EFT
RS-232C
Backup Master
Terminal
Remote Slip Printer
Scanner
Scale
EFT
RS-232C
Master
Terminal
Remote Slip Printer
Scanner
Scale
EFT
RS-232C
UDP
PC
TCP/IP
