4. READ AND RESET REPORTS EO1-11152
4.2 In-Line Reports
4- 8

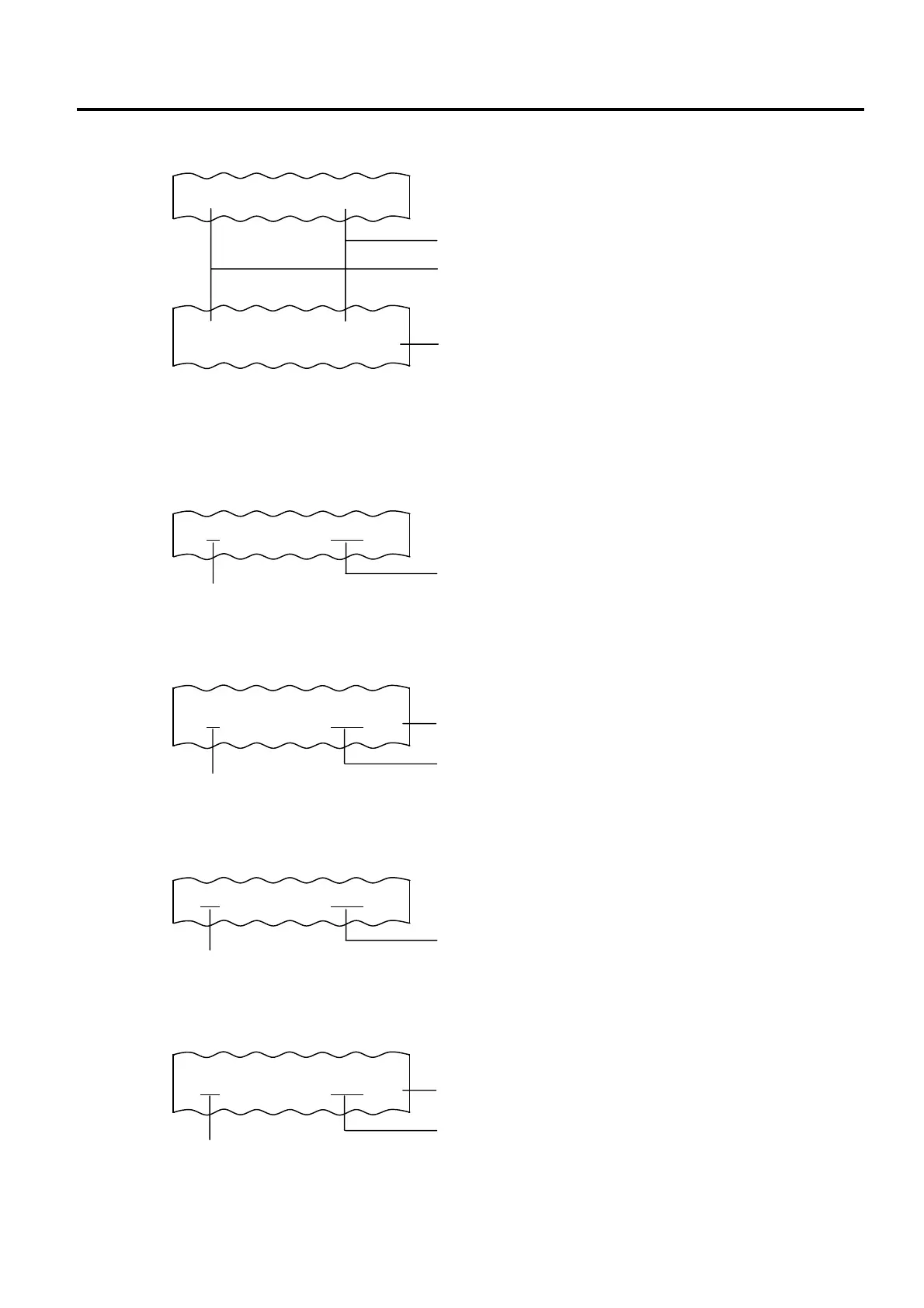

JOURNAL INDICATIONS ON INDIVIDUAL TERMINALS (when report data is collected)
Read Report Collection Indication
Time of data collection
Report ID No. (X is replaced by Z on reset reports.)
Reset Report Collection Indication
Time of Clear Command receiving
JOURNAL INDICATIONS FOR A SYSTEM WITH THE CVS SPEC. SELECTED
The following journal prints indicate that data in each table has copied into the communication buffer.
(1) Copy of daily read data has completed.
Time of copy completion
Report ID No.
(2) Copy of daily reset data has completed.
Clear of the table has completed
Time of copy completion and clear completion
Report ID No.
(3) Copy of GT read data has completed.
Time of copy completion
Report ID No.
(4) Copy of GT reset data has completed.
Clear of the table has completed
Time of copy completion and clear completion
Report ID No.
∗ X 03 15:40TM ∗
∗ Z 03 15:40TM ∗
= Z 03 15:40TM =
& X 03
15:40TM &
& Z 03 15:40TM &
! Z 03
15:40TM !
& X203
15:40TM &
& Z203 15:40TM &
! Z203
15:40TM !
