Technica Engineering IVN2Eth User Manual

CM Eth Combo User Manual
11

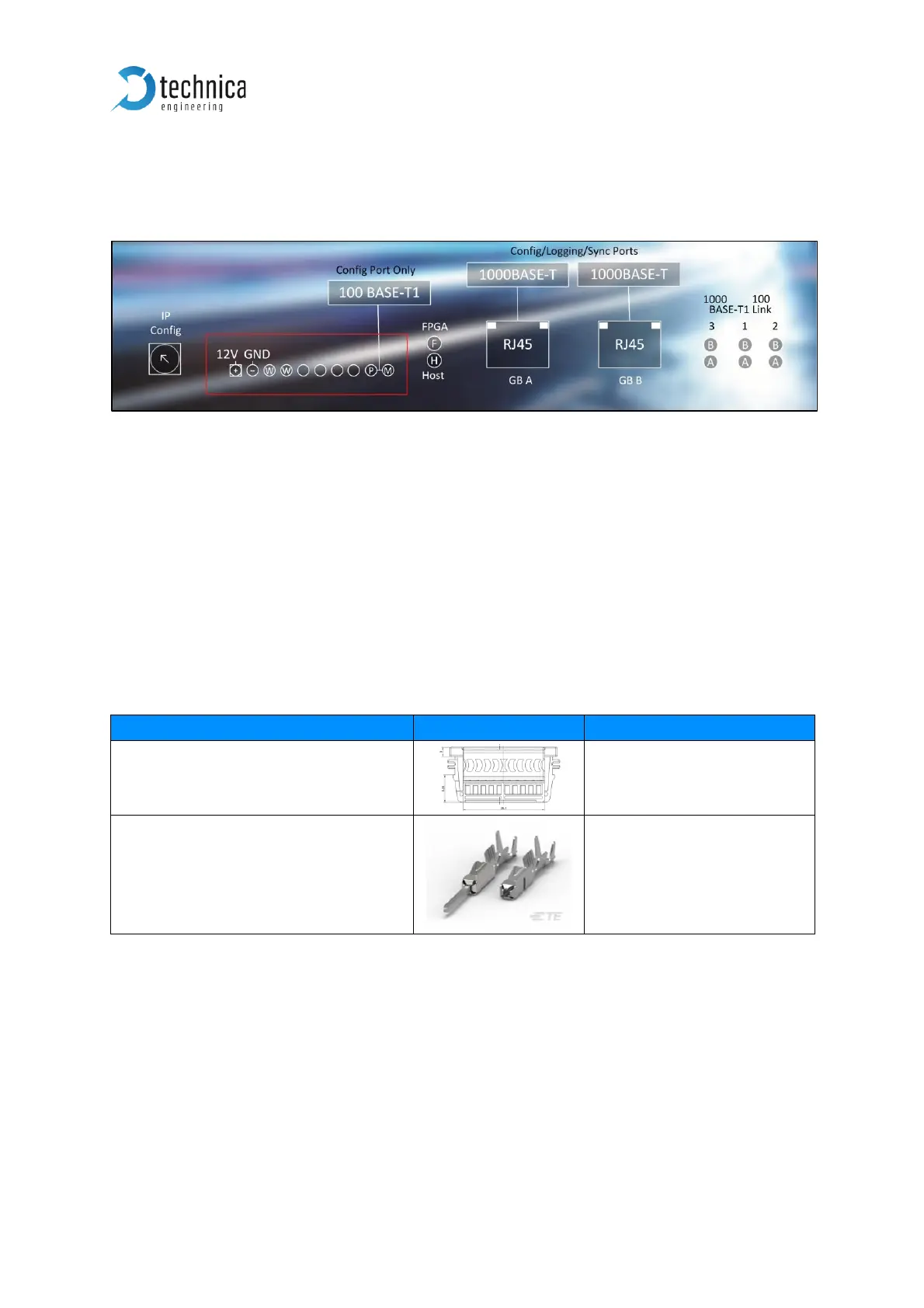

2.1.1 Power Connector - Black MQS Connector Frontside (10
pins one row)
Figure 2-2: Power Connector
Power supply for the device is supplied by Pin 1 (12Volt) and Pin 2 (Ground)
Requirements for the device itself: 12 Volt DC up to 1 Ampere (typical 600mA).
Warning: If you apply a voltage higher than 18 Volt, the device will be damaged!
In this connector there are also two wakeup lines:
As a digital input, each wake-up line consumes approx. 0.7 mA.
As digital output, each wake-up line supplies max. approx. 60 mA.
The Tyco Electronics (TE) Micro Quad Lock System (MQS) is used.
Name
Part Number
Tyco, MQS Buchsengehäuse 10 Pol Black
1-929423-2
Tyco crimp contact
928999-1
Table 2-1: Parts of black MQS connector
Note: You can use the official Tyco tool for these crimp contacts. A cheap variant is
the crimp tool for “PSK” contacts.

Technica Engineering IVN2Eth Specifications

General

Category	Control Unit
Manufacturer	Technica Engineering
Description	IVN2Eth is a control unit designed for converting automotive communication protocols to Ethernet.
Interfaces	Ethernet, CAN, LIN
Protocol	CAN, LIN, Ethernet
Function	Protocol conversion, data logging
