4.5 Switch Status tab

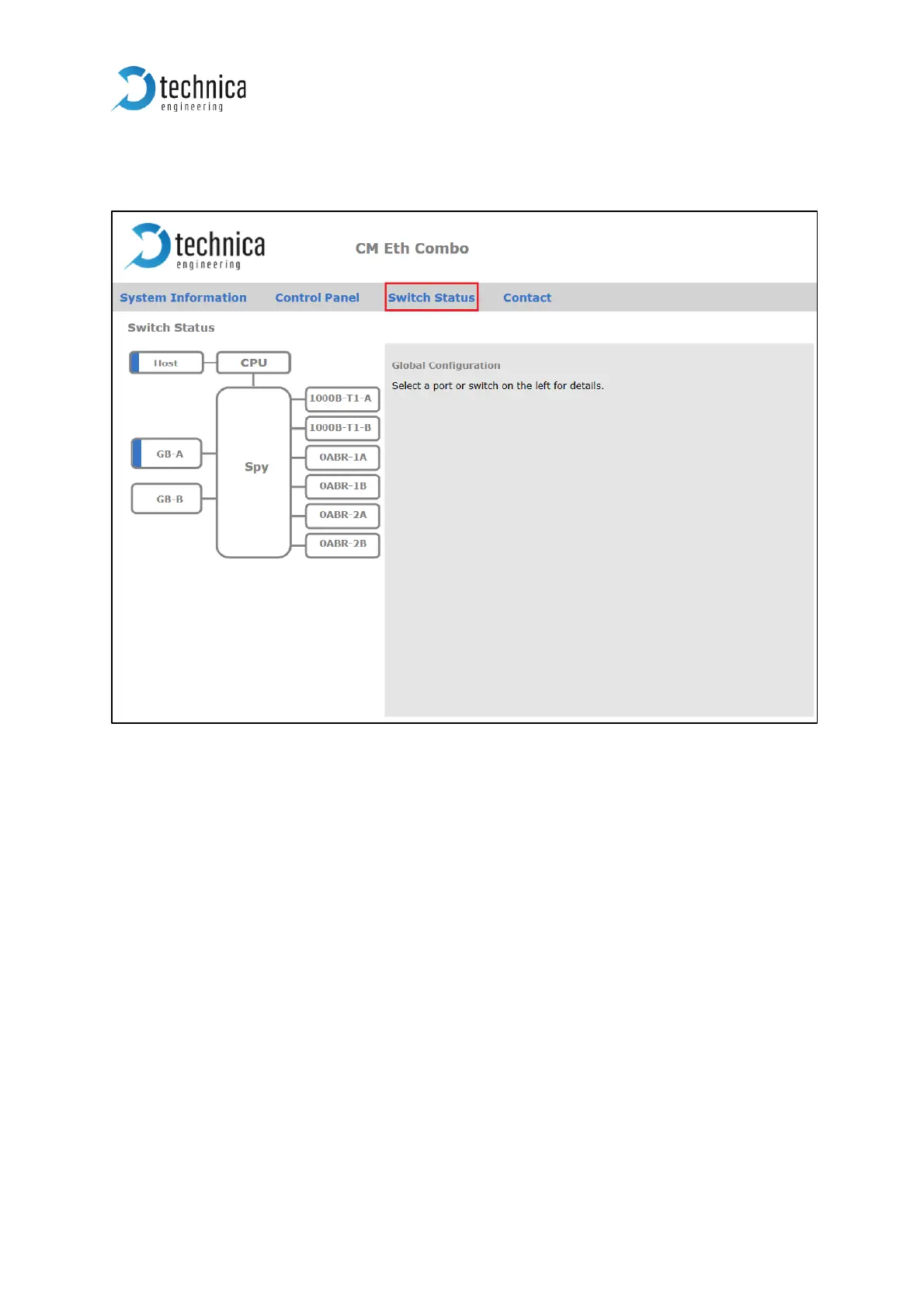

Figure 4-14: Switch Status tab
This is an overview of all ports. A blue bar indicates the linkup on this port. If you select
a port or any other part of the CM_Eth_Combo, it is shown by blue text of the selected
part.
