1 GENERAL INFORMATION
1.1 Functionality and Features of the CM_Eth_Combo

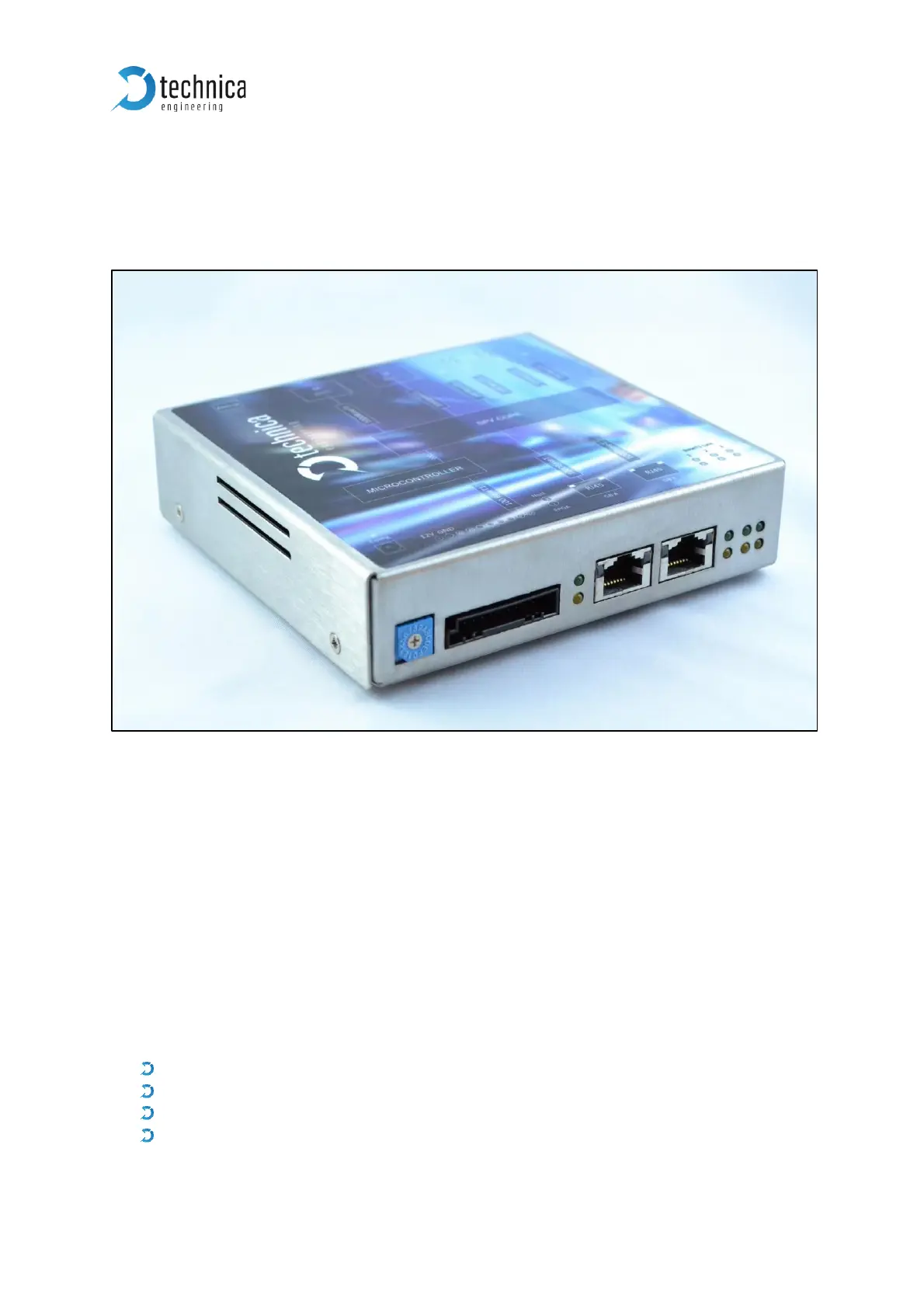

Figure 1-1: Capture_Module_Eth_Combo
The Technica Engineering Capture Module Eth Combo is used to capture the traffic
from 1x 1000BASE-T1 line (between two DUTs) and 2x 100BASE-T1 lines,
correspondingly. The traffic is captured without causing interference on the network
and delivered with a 40 ns resolution hardware time stamp, thus making the analysis
of AVB/TSN traffic possible.
Several devices can be used on the same setup, whenever more T1 ports are needed,
and when other IVN technologies are present, the in-built-synchronization using
802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
Features:
1 Link Line 1000BASE-T1 (2 Ports)
2 Link Line 100BASE-T1 (4 Ports)
Configure easily via Webserver
Network Time Synchronization (802.1AS) – allows to synchronize multiple Eth
Combos or any other “Capture Module”
