Technics SA-DX940 User Manual

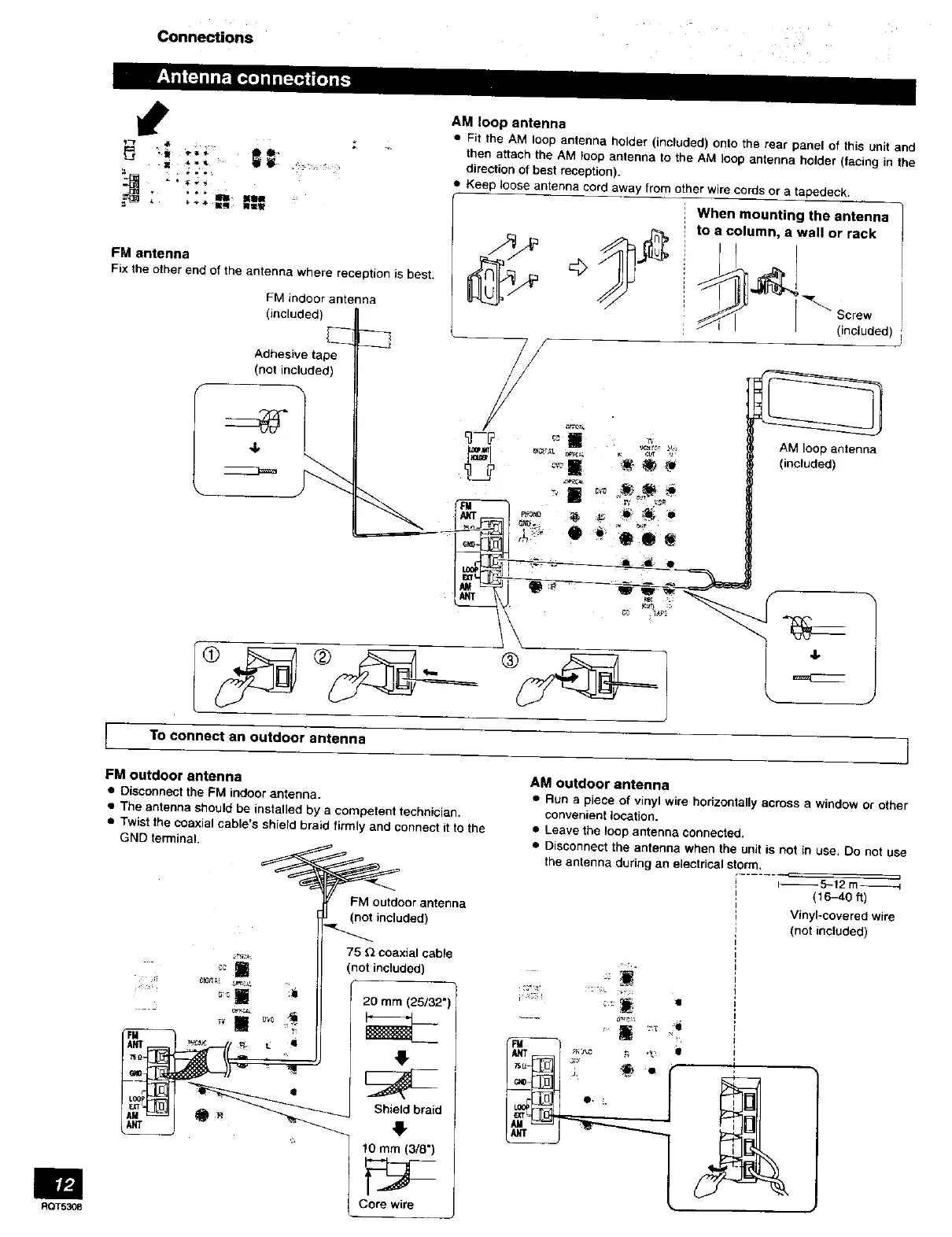

Connections
I
M
FM antenna
Fix the other end of the antenna where reception is best.
FM indoor antenna
(included)
Adhesive tape
(not included)
AM loop antenna
• Fit the AM loop antenna holder (included) onto the rear panel of this unit and
then attach the AM loop antenna to the AM loop antenna holdey Ifacin 9 in the
direction of best reception).
• Keep loose antenna cord away from other wire cords or a tapedeck.
When mounting the antenna
to a column, a wall or rack
(included)
ROT5308
To connect an outdoor antenna
FM outdoor antenna
• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent technician.
• Twist the coaxial cable's shield braid firmly and connect it to tile
GND terminal.
FM outdoor antenna
(not included)
75 _ coaxial cable
_ot included)
20 mm (25/32")
Shield braid
10 mm (3/8")
tSc
Core wire
AM outdoor antenna
• Run a piece of vinyl wire horizontally across a window or other
convenient location.
• Leave the loop antenna connected,
• Disconnect the antenna when the unit is not in use, Do not use
the antenna during an electrical storm,
! F---_ 5-12 m -I---_
I (16_0 ft)
I Vinyl.covered wire
I (not included)
I
I
]
I
I

Technics SA-DX940 Specifications

General

Impedance	8 ohms
Input Sensitivity	200mV (line)
Power Output	100 watts per channel into 8Ω (stereo)
Inputs	CD, Tape, Phono
Tuning Range	FM
Surround Output	100 watts (front), 100 watts (center), 100 watts (rear)
Video Connections	composite
Dimensions	430 x 158 mm
Speaker Load Impedance	8 ohms
