a i i ¸¸ _ :

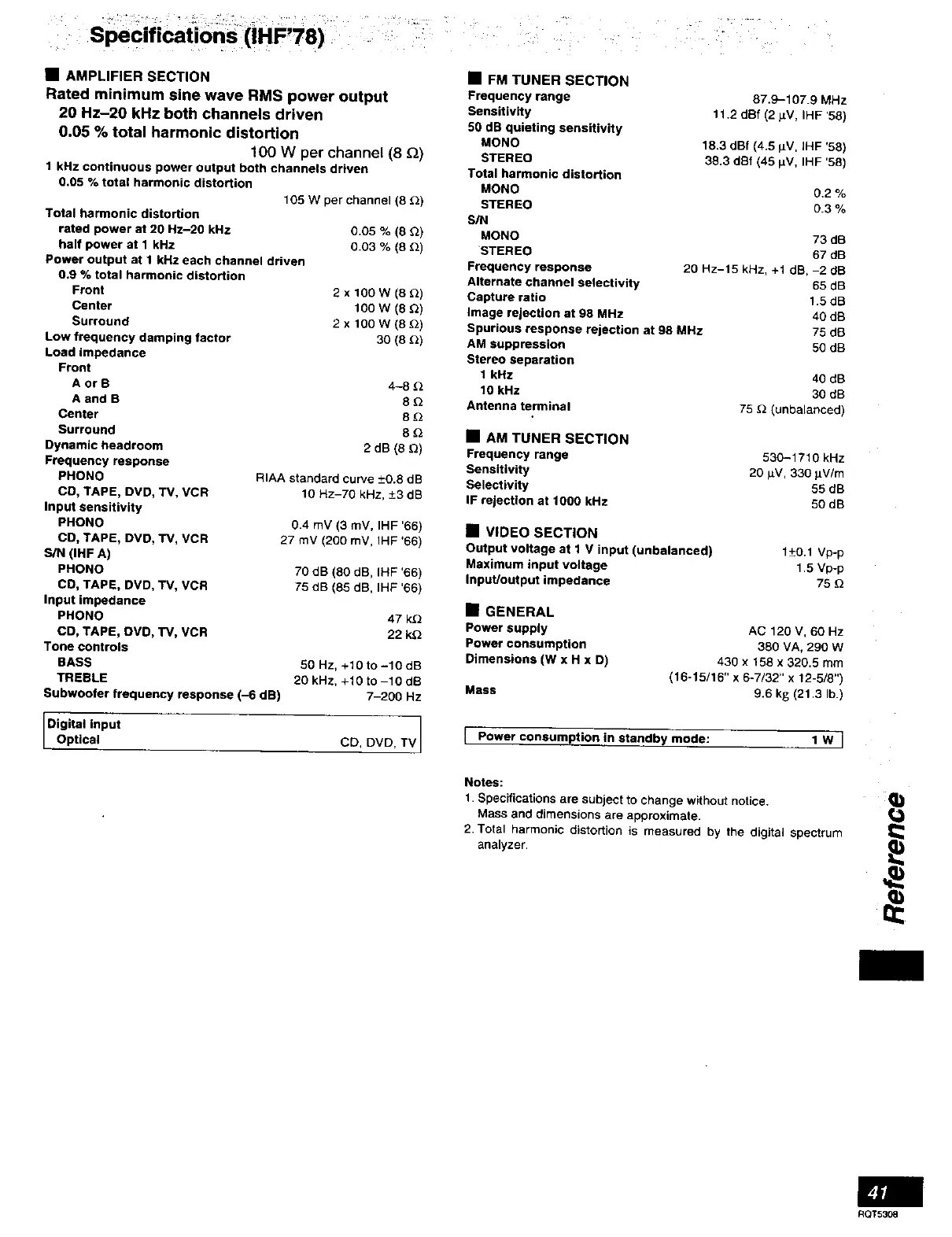

Specifications (iHF 78). :
AMPLIFIER SECTION
Rated minimum sine wave RMS power output
20 Hz-20 kHz both channels driven
0.05 % total harmonic distortion
100 W per channel (8 D)
1 kHz continuous power output both channels driven
0.05 % total harmonic distortion
105 W per channel (8 _)
Total harmonic distortion
rated power at 20 Hz-20 kHz
half power at 1 kHz
Power output at I kHz each channel driven
0.9 % total harmonic distortion
Front
Center
Surround
Low frequency damping factor
Load impedance
Front
AorB
A and B
Center
Surround
Dynamic headroom
Frequency response
PHONO
CD, TAPE, DVD, TV, VCR
Input sensitivity
PHONO
CD, TAPE, DVD, IV, VCR
S/N (IHF A)
PHONO
CD, TAPE, DVD, TV, VCR
Input impedance
PHONO
CD, TAPE, DVD, TV, VCR
Tone controls
BASS
TREBLE
Subwoofer frequency response (-6 dB)
0.05%(s _)
0.03% (8Q)
2x 100W (8Q)
1oo w (8 _)
2x toow(8_)
30 (8 £_)
4-8 D
8D
8D
8D
2dB(SD)
RIAA standard curve +0.8 dB
10 Hz-70 kHz, _+3dB
0.4 mV (3 mV, IHF '66)
27 mV (200 mY, IHF '66)
70 dS (80 dB, IHF '66)
75 dB (85 dB, IHF '66)
47 kQ
22 kD
50 Hz, +10 to-10 dB
20 kHz, +10 to -10 dB
7-200 Hz
Digital CD, DVD, TV
input
Optical
FM TUNER SECTION
Frequency range 87.9-107.9 MHz
Sensitivity 11.2 dSf (2 ]_V, IHF '58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 I_V, ]HF 38)
STEREO 38.3 dBf (45 I_V, IHF %8)
Total harmonic distortion
MONO 0.2 %
STEREO 0.3 %
S/N
MONO 73 dB
STEREO 67 dB
Frequency response 20 HZ-15 kHz, +t riB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
Spurious response reiection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separation
I kHz 40 dB
10 kHz 30 dB
Antenna terminal 75 D (unbalanced)
AM TUNER SECTION
Frequency range 539-1710 kHz
Sensitivity 20 _V, 330 _V/m
Selectivity 55 dB
IF rejection at 1000 kHz 50 dB
VIDEO SECTION
Output voltage at I V input (unbalanced)
Maximum input voltage
Input/output impedance
GENERAL
Power supply
Power consumption
Dimensions (W x H x D)
Mass
I_+0.1 Vp-p
1.5 Vpop
75 D
AC 120 V, 60 Hz
380 VA, 290 W
430 x 158 x 320.5 mm
(16-15/16" x 6-7/32" x 12-5/8")
9.6 k 8 (21,3 Ib.)
Power consumption in standby mode:
lW
Notes:
1 Specifications are subject to change without notice.
Mass and dimensions are approximate.
2 Total harmonic distortion is measured by the digital spectrum
ana{yzer.
RQT530e
