5.3.1.2 Output mode

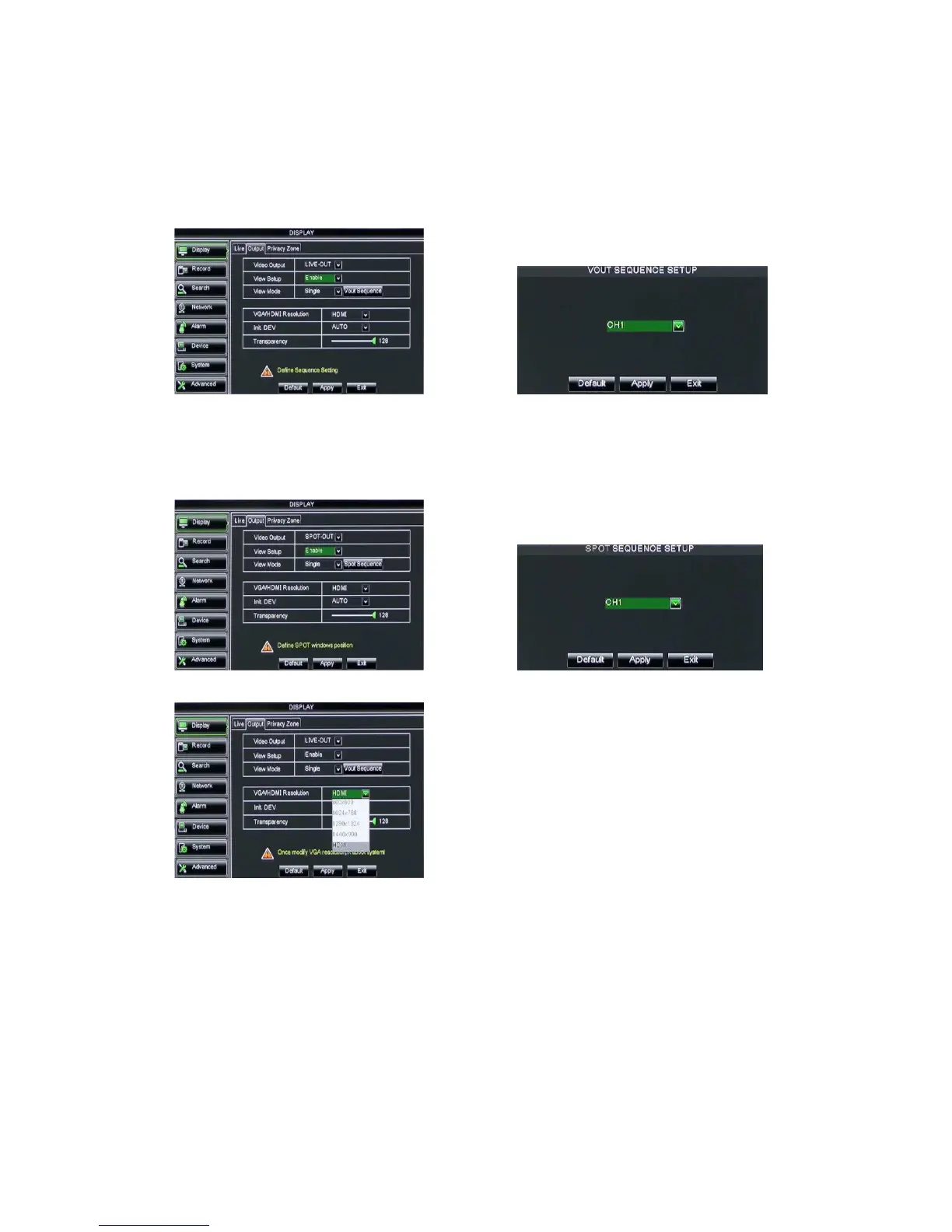

Picture 5-5 Picture 5-6
Picture 5-7 Picture 5-8
Picture 5-9
Display Mode:
Live output: display window will include Single, Quad, 9-split and 16-split mode;
Spot output: display window will include Single, Quad and 9-split mode.
Transparency: allow you adjust menu’s transparency, and its range is 1~128.
Margin: allow you adjust the whole screen’s margin. Details operations please refer to the
Picture 5-10.
Volume: allow you adjust the DVR volume shown as Picture 5-11.
Go to [Main menuDisplayOutput]
to enter into the output set interface
shown as Picture 5-5.
Click [Live] to pop up the interface
shown as Picture 5-6. Now you could
perform channel sequence setting.
Click [Spot output] option and set
relative parameters shown as Picture
Click [Spot sequence] to enter into the
interface shown as Picture 5-8.
Video output: Support CVBS output Live and
Spot mode simultaneously, and Live is main
output, and Spot is auxiliary output.
CH Sequence: the option is defaulted to “Off”
and sequence time is 5 second. User can activate
the option as per request.
Rotate time: allow you set sequence time, and
minimum time can be set to 3 seconds.
VGA/HDMI Resolution: allow you select
VGA or HDMI output, including 800x600,
1024x768, 1280x1024, 1440x900 and HDMI.
