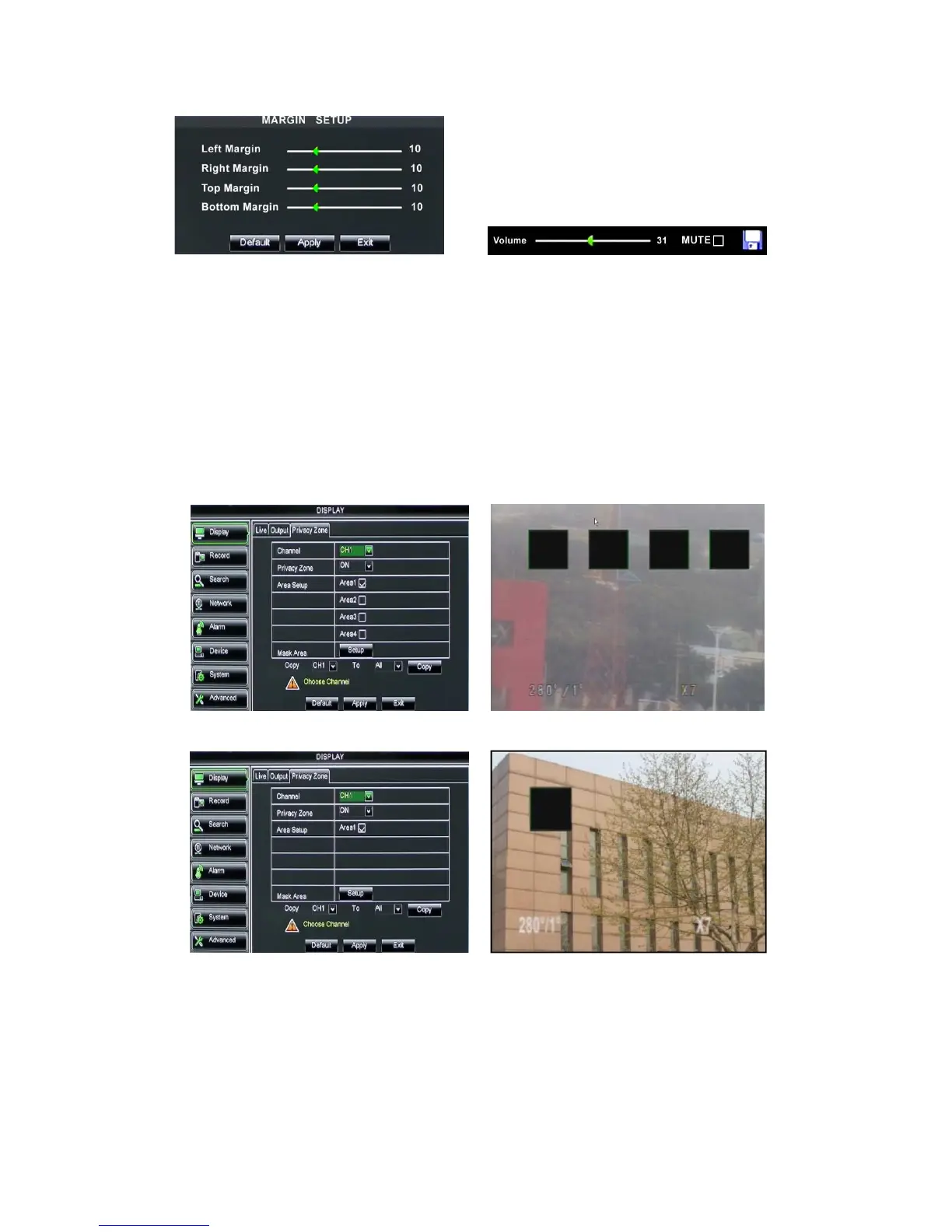

Picture 5-10 Picture 5-11
5.3.1.3 Privacy Zone
The function Allow you setup privacy zone parameters according to Picture 5-12. Each
channel could set up to four privacy zones, and please follow below steps to set:
1. Select the area no (Area 1 ~ Area 4);
2. Click [Setup] to adjust position of mask area;
3. After finishing position adjust, click right key of mouse to return back [Privacy zone]
interface;
4. Click [Apply] to save the above setting.
Picture 5-12 Picture 5-13
5.3.2 Record set
5.3.2.1 Record parameters
Go to [Main menuRecordRecord Para] to enter into the interface shown as Picture 5-14.
This figure is only for 16CH- CIF model reference
