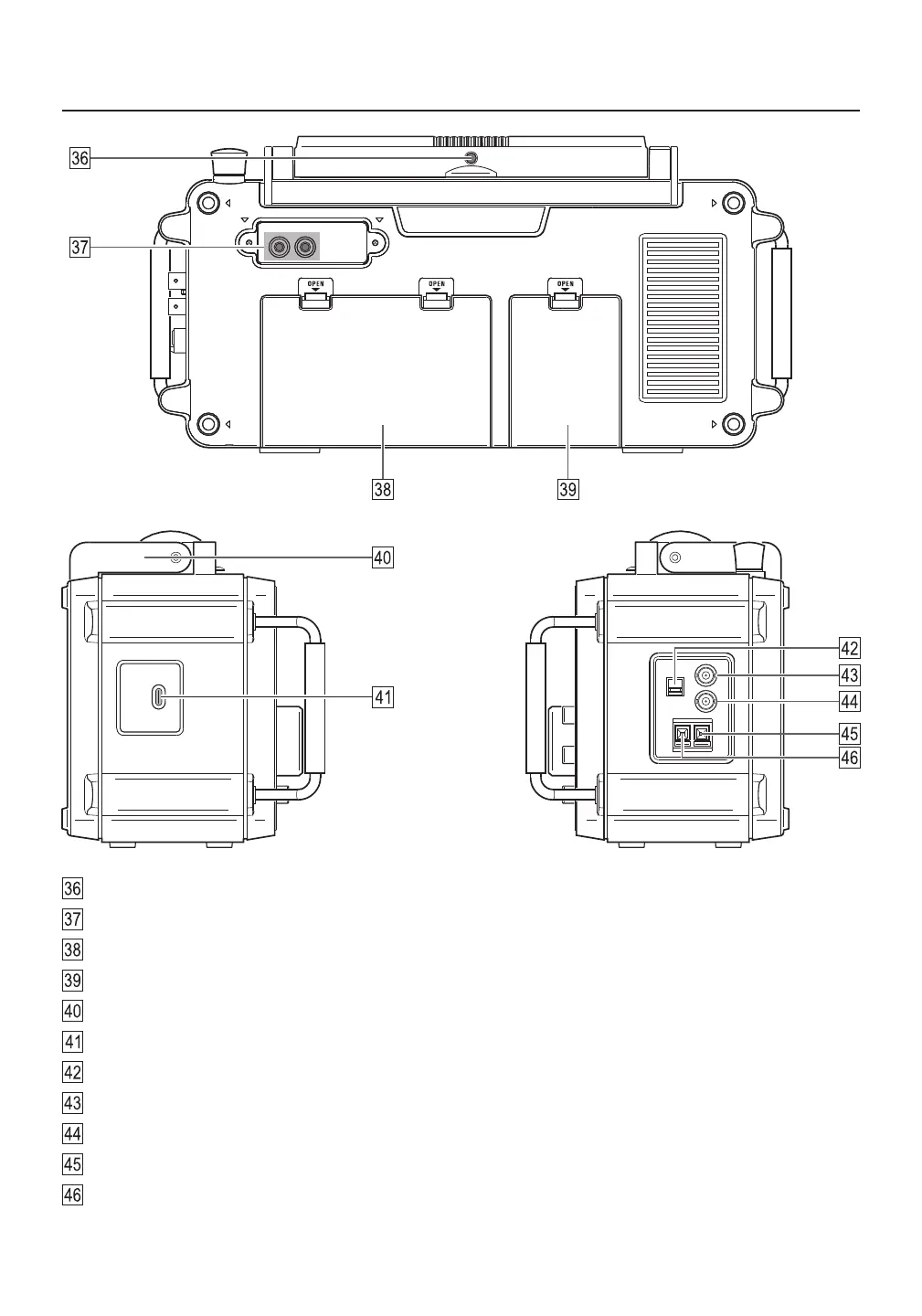

LW/MW ANTENNA INPUT: Longwave/Medium wave external antenna socket (Φ3.5 mm).
LINE OUT: Stereo audio output socket (RCA)
6V battery compartment. Insert 4 D-type (R20/UM1) 1.5V batteries.
8.4V battery compartment. Insert 2 18650 type 4.2V (nominal 3.7V) lithium batteries.
Retractable carry handle
DC 5V 2A: USB-C socket. DC input is only used for charging the 2 18650 lithium batteries.
INT. ANT. / EXT. ANT.: Switch between the telescopic antenna (SW/FM/AIR) and an external antenna.
FM/AIR ANT.: FM/Airband antenna socket (BNC)
SW ANT.: Low-impedance shortwave antenna socket (BNC)
SW ANT.: High-impedance shortwave antenna socket (red), used in conjunction with the ground socket.
GND: Ground socket (black)
