Teknatool Nova 83700 - Assembly Instructions

4
123-0420-029

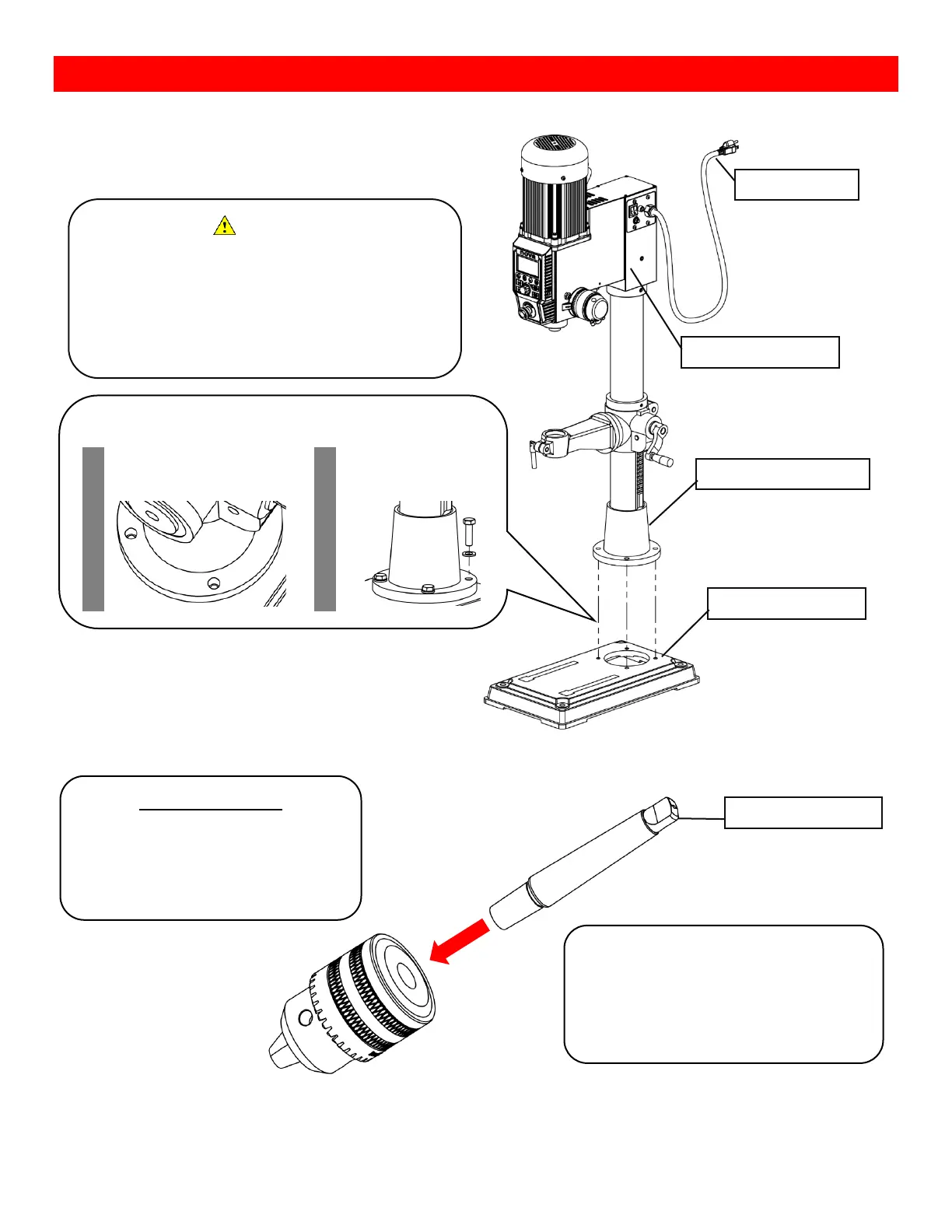

Assembling the Drill Press
Drill Press Body
The NOVA Viking drill press come with its headstock
preassembled with its main column.
Drill Chuck and Arbor
Caution
The headstock assembly can be
heavy and it is a subject to tip over.
It is recommended to have at
least 2 people when assembling
the drill press.
Drill press headstock
Power Cable
Drill press base
Attaching the drill press base
1
.
Align the thread holes
on the drill press base
and column base
2
.
Bolt the bases
together with the M10
bolt
Drill press column base
Before assembling
Wipe down all surfaces which makes
contact with other parts free of any dusts
or lubricants.

Both long and short side of Arbor

Tapered hole of the chuck
Arbor tongue
Insert the short end of the Arbor into the
drill chuck.
Secure the Arbor into the chuck by lightly
tapping the Arbor tongue with a rubber
mallet.
