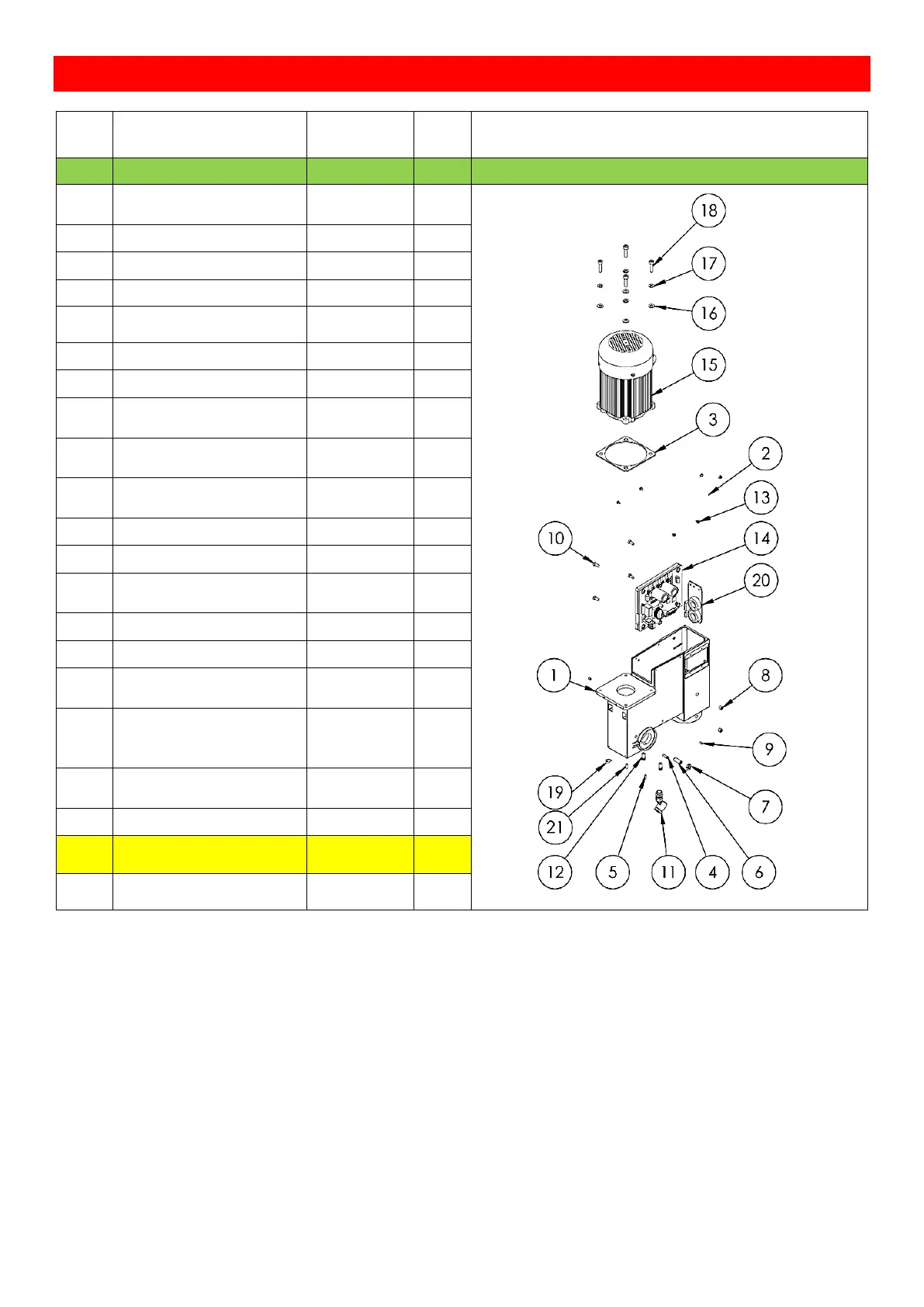

NOVA Viking Drill Press Parts List
ITEM
NO.
Description
SKU
QTY.
1
Headstock Assembly
8379001
1
16inch Drill Press
Headstock Casting
8379011
1
2
Sheet metal top cover
8379013
1
3
Motor Rubber Gasket
8379051
1
4
Mechanical Stop Pin
TP0515
1
5
Spring Base Locking
Screw
8379035
1
6
Quill Pin
8379045
1
7
Quill Pin Nut
NH10
1
8
Headstock Locking
Grub Screw
SZ1010
2
9
Laser Locking Grub
Screw
SZ0508
2
10
Main Board Locking
Screw
CM0616
4
11
LED Light
8379056
1
12
Laser Module 8MM
8379109
2
13
Top Cover Mounting
Screws
MPB0406
6
14
Main Control Board
55448
1
15
1HP DVR Motor
8379009
1
16
Motor Mount Bolt Flat
Washer 8mm
FW08
4
17
Motor Mount Bolt
Spring Lock Washer
8mm
SW08
4
18
Motor Mounting Bolts
M8x35
C08035
4
19
Aluminium Scale Plate
8379108
1
20*
EMI Filter
[For 230V Markets only]
55170
1
21
Pinion Locking Grub
Screw
SZ0608
2
