Zeroing the depth
This is also known as referencing the depth. This function will let the machine know where to start counting the
depth from.

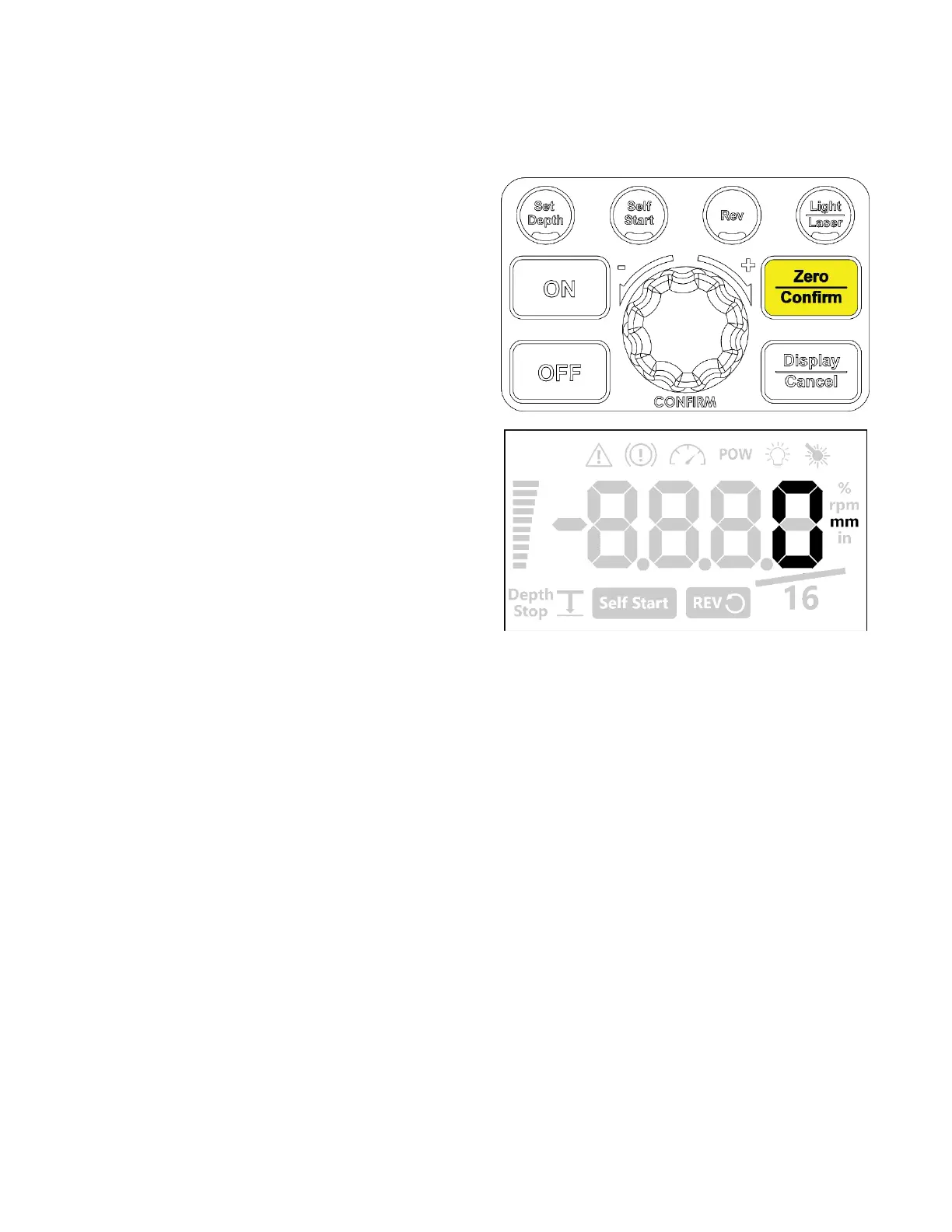

Press the <Zero/ Confirm> button to zero the depth
reading on the drill press.
The depth read out will be set to zero at the current
extension of the quill.
E.g. If the quill is extended by 20mm and when the
depth read out is zeroed, the depth will start counting
positive from the 20mm position.
