7
123-0420-029

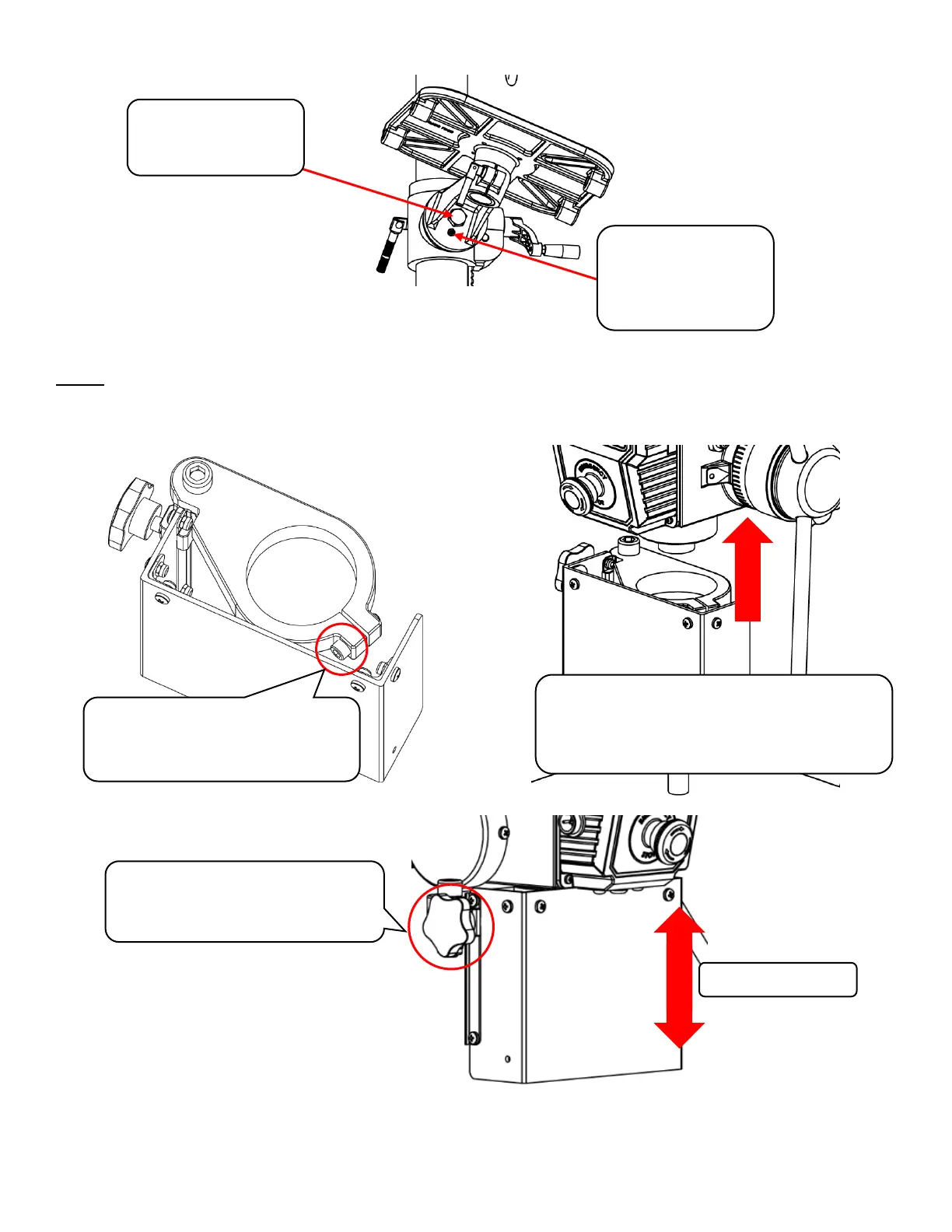

Lock the main table bolt first and then lock the secondary grub screw to secure the table position.
Attaching the Chuck Guard
Note: Only applicable to versions containing the chuck guards at default.
Take the chuck guard out from the packaging and peel off the protective sheet adhered to the guard. Inspect
for any defects on the guard.un
Make sure to have the chuck guard covering the entire chuck.
Lock the main bolt
first after the table
angle has been set
Tighten the grub
screw on the bottom
after tightening the
main bolt.
Loosen the guard locking bolt
by hand or use a 5mm Allen
wrench.
Slide the guard over the drill press quill
and lock it into place by tightening the
guard locking bolt by using a 5mm Allen
wrench.
The vertical position of the
guard can be adjusted by
loosening the knob on the side.
