Using the light and lasers
Available laser and light modes
There are 4 laser and light modes available on the NOVA Viking drill press:
1. Both laser and light on
2. Laser on and light off
3. Laser off and light on
4. Both laser and light off

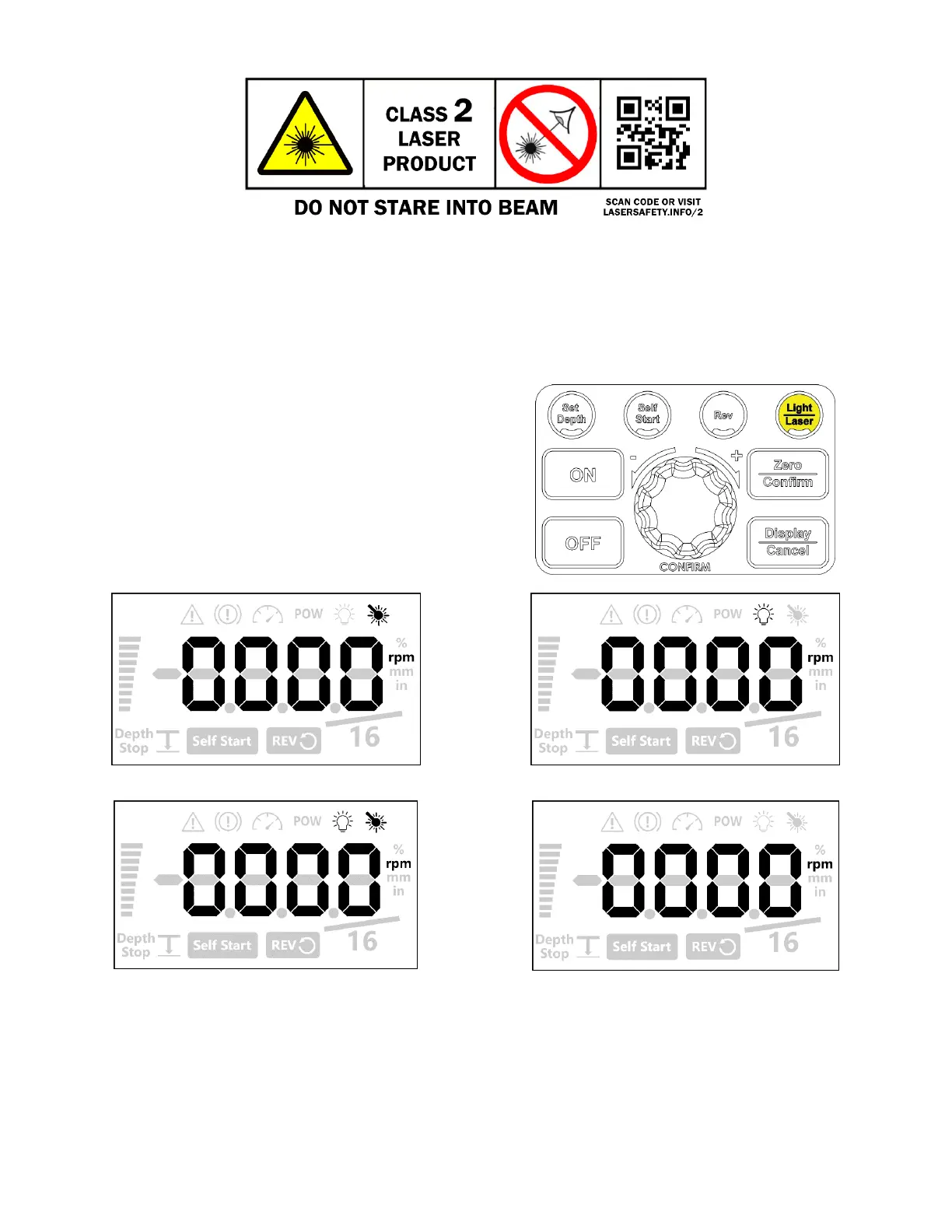

Press the <Light/ Laser> button to cycle through
each of the available modes on the NOVA Viking drill
press.
Each of the modes can be identified as the icons will
be highlighted to indicate which function is turned on.
Laser on
Light on
Laser and light on
Both off
The laser not accurately aligning?
Refer to <page 33> on how to adjust the laser modules
