Teknatool Nova 83700 - Controls and Operation; Drill Press Interface Overview

10
123-0420-029

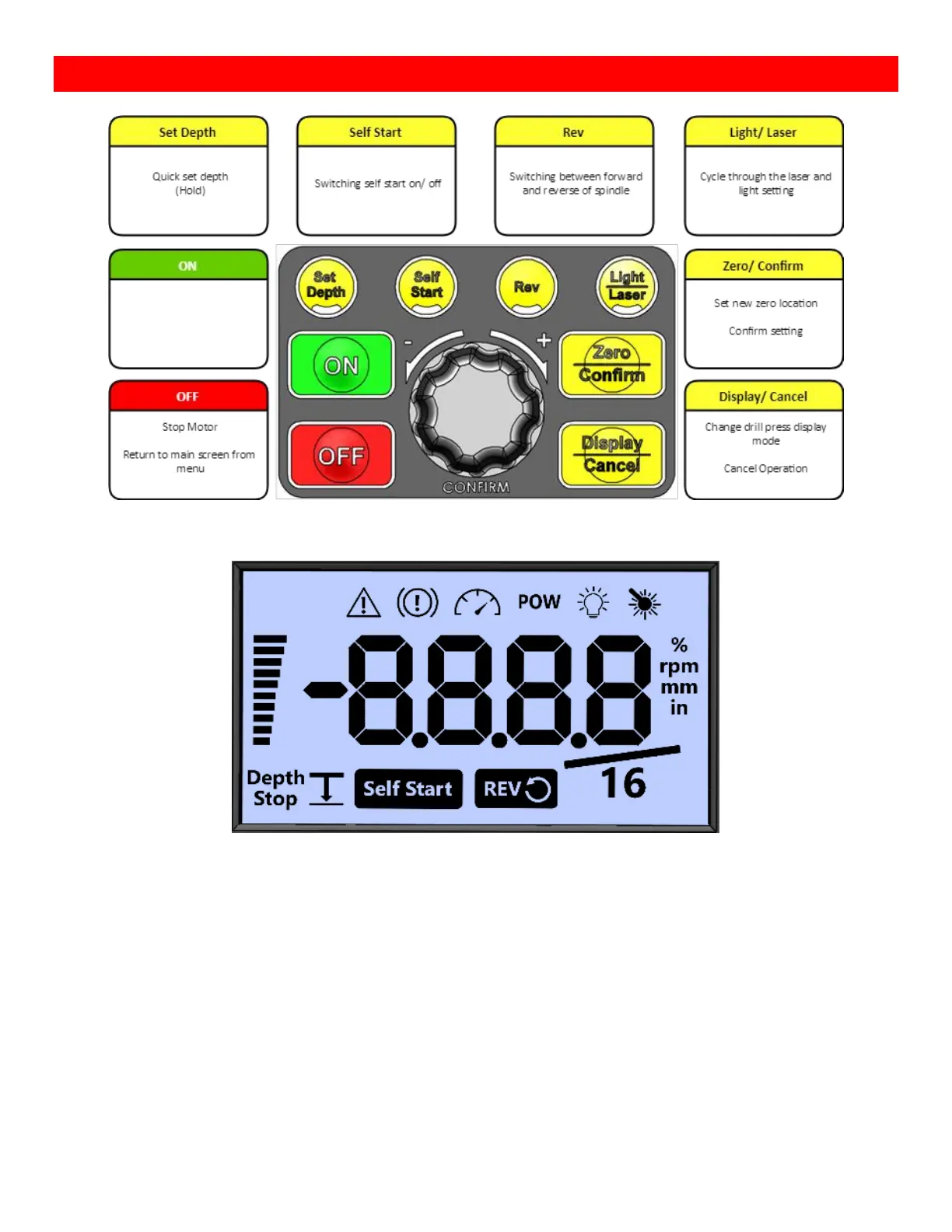

Drill Press Interface
Keypad Buttons
Display Icons
The icons are lit on the screen to indicate various information shown on the screen. The table on the next page
explains the definitions of each icons displayed on the screen.
The spindle can be
electronically locked in
place by holding the “On”
button for three seconds.
Start Motor
Reset value in select menus
