Teknatool Nova 83700 - Page 42

36
123-0420-029
5

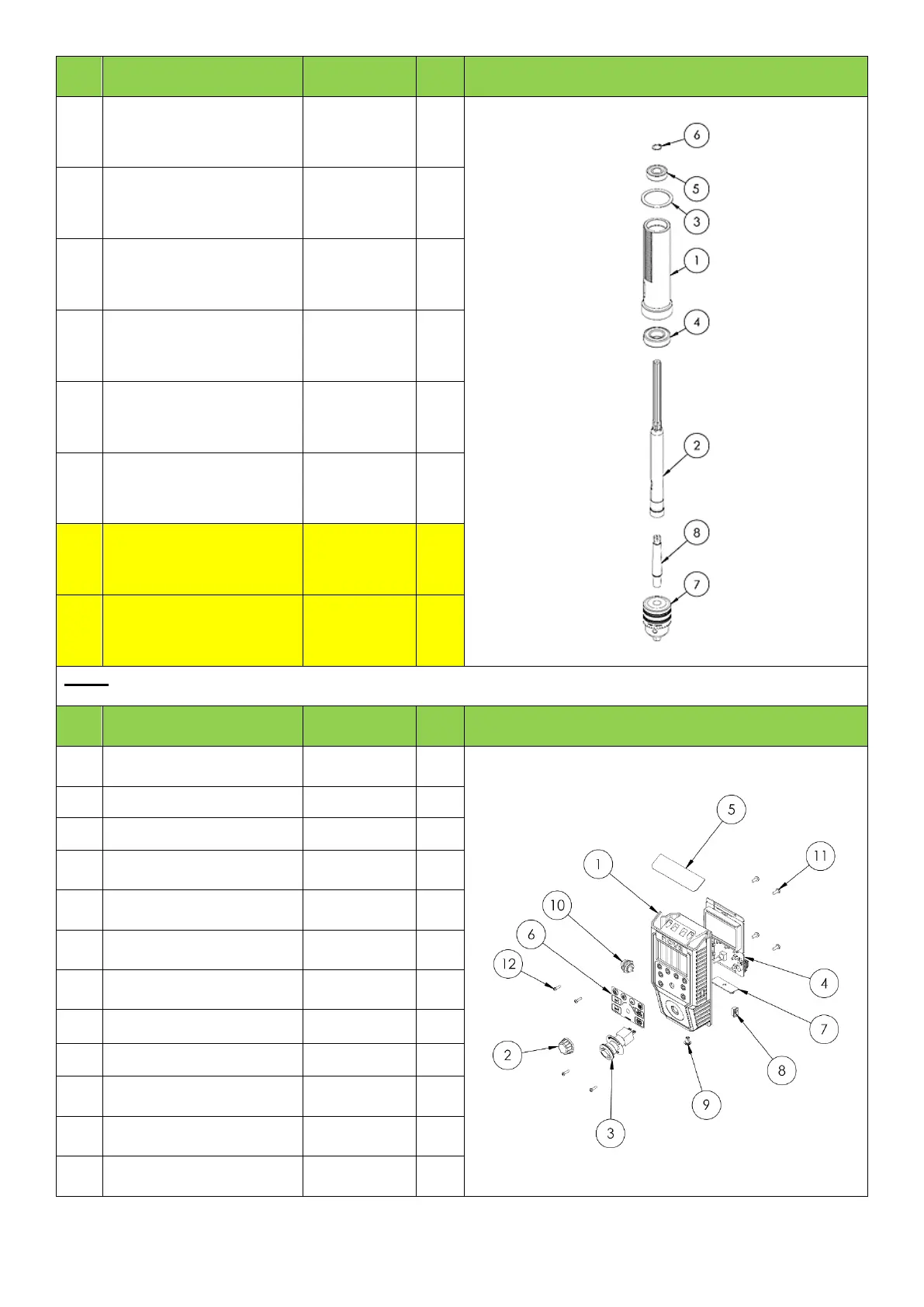

4.5inch Quill and
Spindle Assembly
8379005
1
1
Drill Press Quill
8379016
1
2
Spindle
8379015
1
3
Quill Rubber Space
Washer
RW45
1
4
6205 Ball Bearing
6205LLB
1
5
6004 Ball Bearing
6004LLB
1
6
Spindle Retaining
Circlip
EC15
1
7
Drill Press Chuck
8379068
1
8
Arbor
8379019
1
Note: Items highlighted is not included as part of the subassembly
6
HMI Control Panel
Assembly
8379006
1
1
Drill Press HMI Plastic
Panel
8379014
1
2
Speed Dial
8379076
1
3
EMS
8379047
1
4
Interface Board with
LCD
55449
1
5
HMI Top Plate
8379075
1
6
Drill Press Keypad
Membrane
8379018
1
7
LED Lights Board
55451
1
8
USB Rubber Cap
8379077
1
9
Plastic Rivet
8379074
1
10
Interlock chuck guard
female connector
55526
1
11
HMI Board Mounting
Screw
MPB0408
4
12
HMI Panel Mounting
Screw
MPB0312
4
