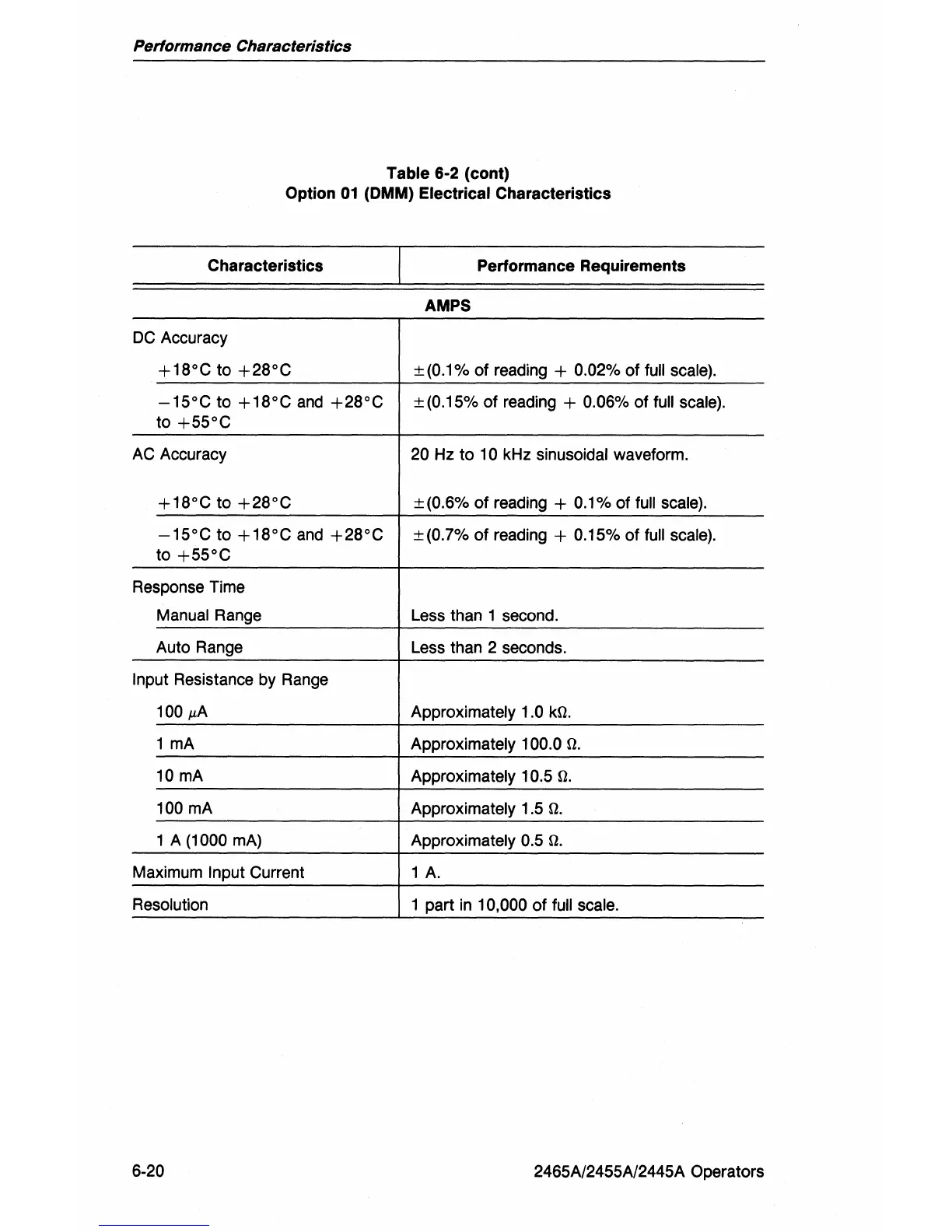

Performance Characteristics
Table 6-2 (cont)
Option
01
(OMM) Electrical Characteristics
Characteristics Performance Requirements
AMPS
DC
Accuracy
+
18°C to
+28°C
±(0.1% of reading + 0.02% of full scale).
-15°C
to
+18°C
and
+28°C
±(0.15% of reading + 0.06% of full scale).
to
+55°C
AC
Accuracy
20
Hz
to
10kHz
sinusoidal waveform.
+18°C
to
+28°C
± (0.6% of reading +
0.1
% of full scale).
-15°C
to + 18°C
and
+28°C
±(0.7% of reading + 0.15% of
full
sea/e).
to
+55°C
Response Time
Manual Range Less than 1 second.
Auto Range Less than 2 seconds.
Input Resistance
by
Range
100
!LA
Approximately 1.0 kn.
1
mA
Approximately 100.0 n.
10
mA
Approximately 10.5 n.
100
mA
Approximately 1.5 n.
1 A (1000 mAl Approximately 0.5 n.
Maximum Input Current
1A.
Resolution 1 part
in
10,000 of full scale.
6-20
2465A/2455A/2445A Operators
