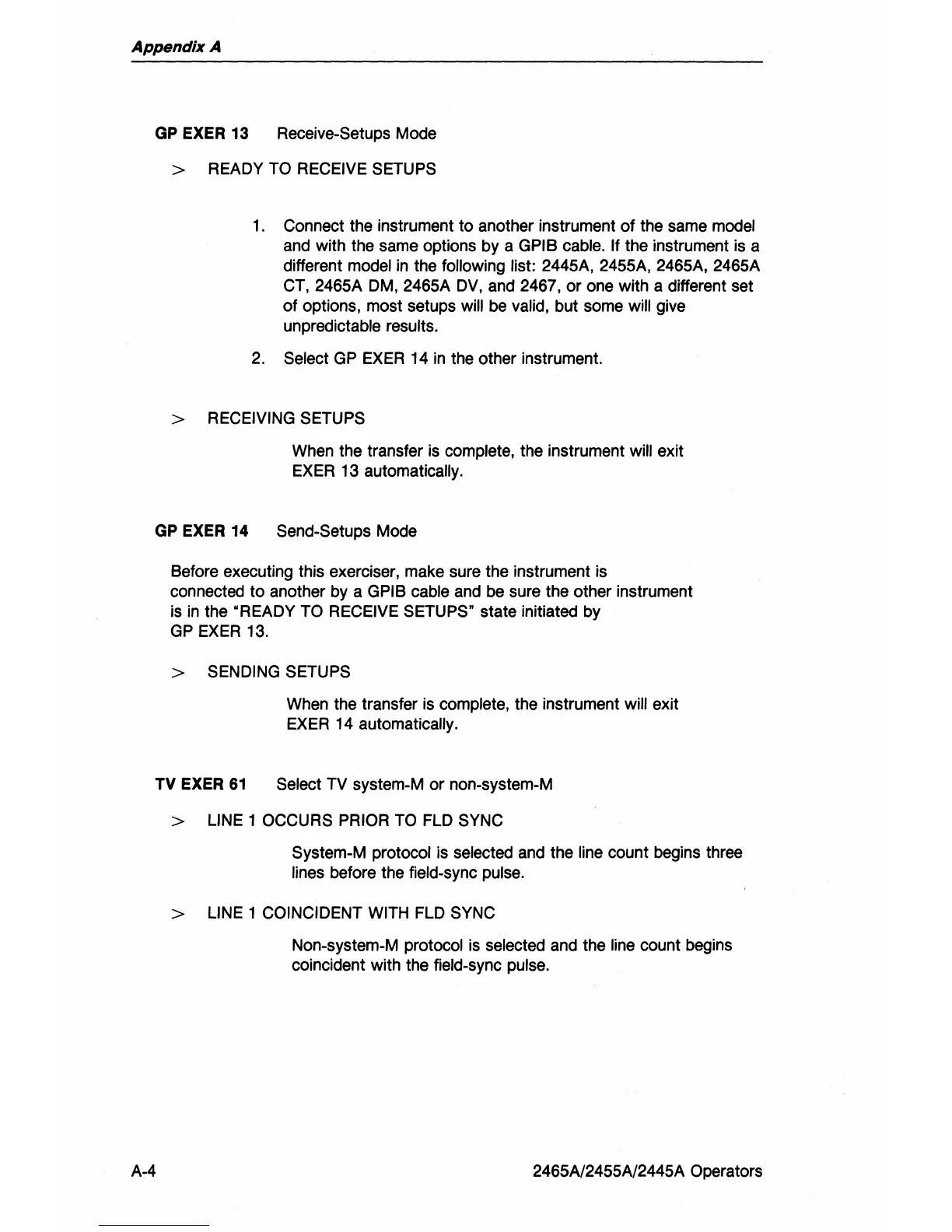

Appendix
A
GP
EXER 13 Receive-Setups Mode
> READY TO RECEIVE SETUPS
1 . Connect the instrument to another instrument
of
the same model
and with the same options by a GPIB cable. If the instrument
is
a
different
model
in
the following list: 2445A, 2455A, 2465A, 2465A
CT, 2465A
OM,
2465A
DV,
and 2467, or one with a different set
of
options, most setups will be valid, but some will give
unpredictable results.
2.
Select
GP
EXER
14
in
the other instrument.
> RECEIVING SETUPS
When the transfer is complete, the instrument will exit
EXER 13 automatically.
GP
EXER 14 Send-Setups Mode
Before executing this exerciser, make sure the instrument
is
connected
to
another by a GPIB cable and be sure the other instrument
is
in
the "READY
TO
RECEIVE SETUPS" state initiated by
GP
EXER 13.
> SENDING SETUPS
When the transfer is complete, the instrument will exit
EXER 14 automatically.
TV EXER
61
Select TV system-M or non-system-M
A-4
> LINE 1 OCCURS PRIOR
TO
FLO
SYNC
System-M protocol
is
selected and the line count begins three
lines before the field-sync pulse.
> LINE 1 COINCIDENT WITH
FLO
SYNC
Non-system-M protocol
is
selected and the line count begins
coincident with the
field-sync pulse.
2465A/2455A/2445A Operators
