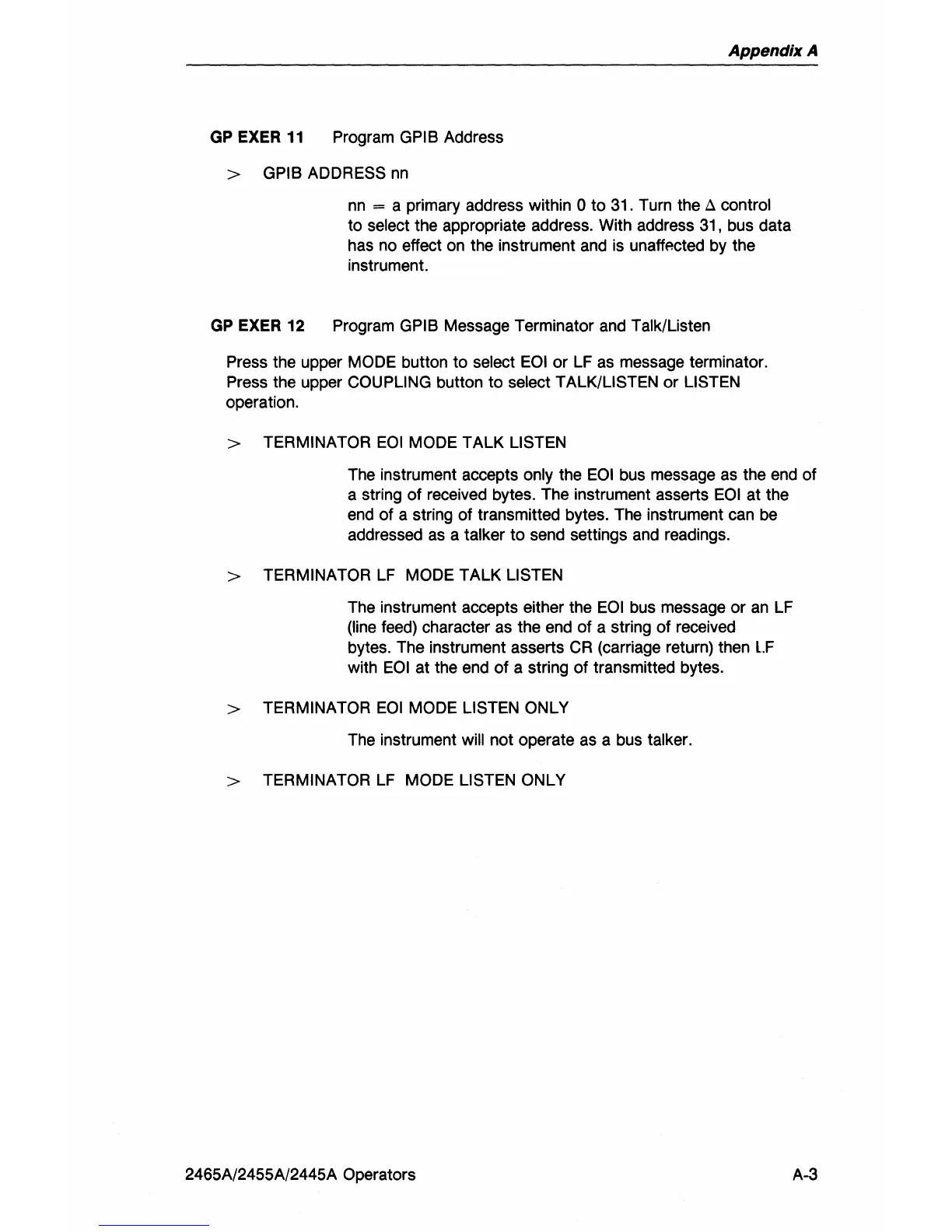

Appendix A
GP EXER 11 Program GPIB Address
> GPIB ADDRESS nn
nn
= a primary address within 0 to 31. Turn the ~ control
to select the appropriate address. With address 31, bus data
has no effect on the instrument and is
unaffflcted by the
instrument.
GP EXER 12 Program GPIB Message Terminator and Talk/Listen
Press
the upper MODE button to select EOI or LF as message terminator.
Press the upper COUPLING button to select TALK/LISTEN or LISTEN
operation.
> TERMINATOR EOI MODE TALK LISTEN
The instrument accepts
only the EOI bus message as the end of
a string of received bytes. The instrument asserts
EOI at the
end of a string of transmitted bytes. The instrument can
be
addressed as a talker to send settings and readings.
> TERMINATOR LF MODE TALK LISTEN
The instrument accepts either the
EOI bus message or an LF
(line feed) character as the end of a string of received
bytes. The instrument asserts
CR (carriage return) then LF
with EOI at the end of a string of transmitted bytes.
> TERMINATOR EOI MODE LISTEN ONLY
The instrument will not operate as a bus talker.
> TERMINATOR LF MODE LISTEN ONLY
2465A/2455A/2445A Operators
A-3
