Operation
Sweep to
Delay
A
B

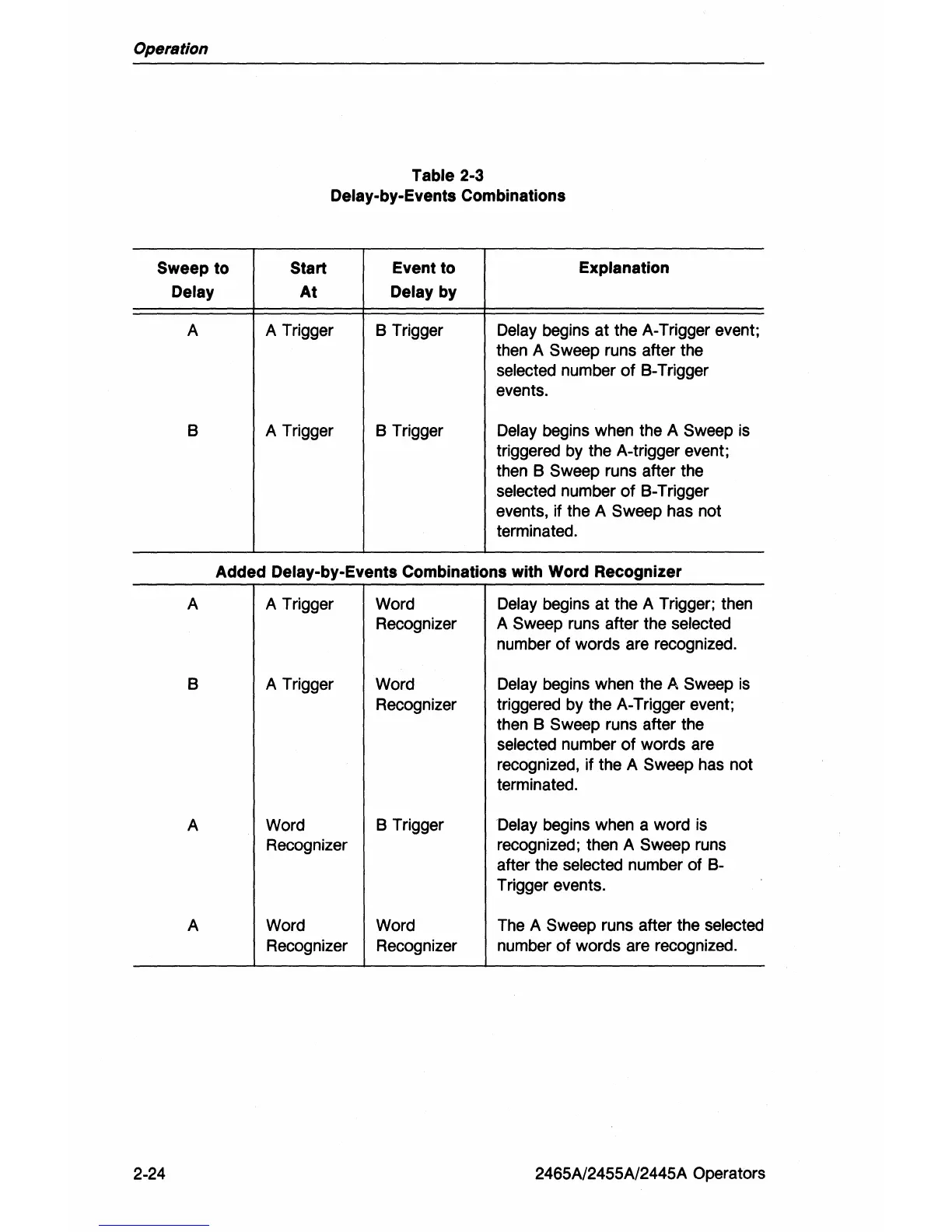

Table 2-3
Delay-by-Events Combinations
Start
Event to Explanation
At Delay by
A Trigger B Trigger Delay begins
at
the A-Trigger event;
then A Sweep runs after the
selected number
of
B-Trigger
events.
A Trigger B Trigger
Delay begins when the A Sweep is
triggered by the A-trigger event;
then B Sweep runs after the
selected number
of
B-Trigger
events, if the A Sweep has not
terminated.
Added Delay-by-Events Combinations with Word Recognizer
A A Trigger Word
Delay begins
at
the A Trigger; then
Recognizer A Sweep runs after the selected
number of words are recognized.
B A Trigger Word
Delay begins when the A Sweep
is
Recognizer
triggered by the A-Trigger event;
then B Sweep runs after the
selected number
of
words are
recognized, if the A Sweep has not
terminated.
A Word
B Trigger Delay begins when a word is
Recognizer
recognized; then A Sweep runs
after the selected number
of
B-
Trigger events.
A
Word Word The A Sweep runs after the selected
Recognizer Recognizer number of words are recognized.
2-24
2465A/2455A/2445A Operators
