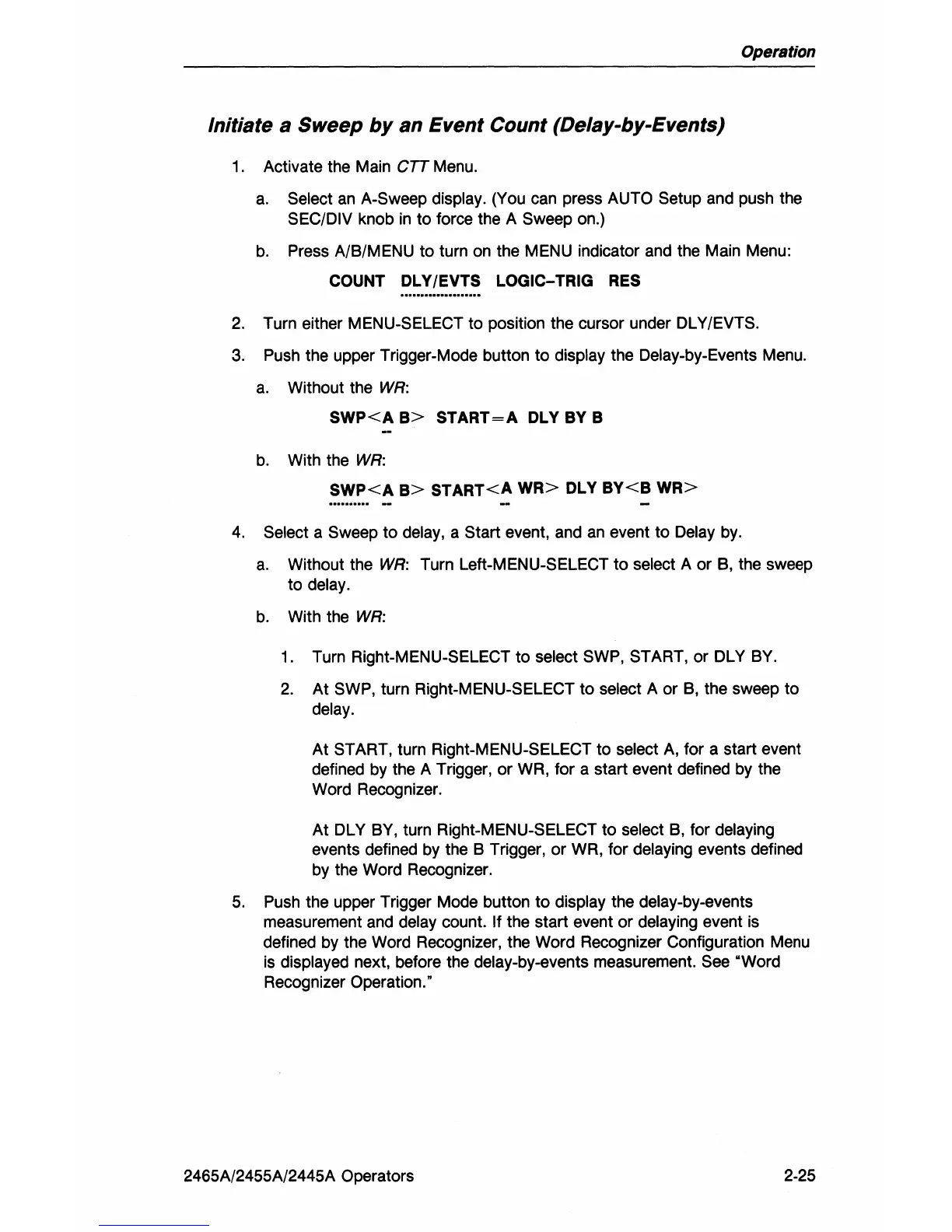

Operation
Initiate a Sweep
by
an Event Count (Delay-by-Events)
1.
Activate the Main
CIT
Menu.
a.
Select
an
A-Sweep display. (You can press AUTO Setup and push the
SEC/DIV knob
in
to force the A Sweep on.)
b.
Press A/B/MENU to turn
on
the MENU indicator
and
the Main Menu:
COUNT
DL
Y /EVTS LOGIC-TRIG
RES
2.
Turn either MENU-SELECT to position the cursor under
DL
Y/EVTS.
3.
Push the upper Trigger-Mode button to display the Delay-by-Events Menu.
a.
Without the
WR:
SWP<A
B>
START=A
DLY
BY
B
b.
With the
WR:
SWP<A
B>
START<A
WR>
DLY
BY<B
WR>
4.
Select a Sweep to delay, a Start event, and
an
event to Delay
by.
a.
Without the
WR:
Turn Left-MENU-SELECT to select A or
B,
the sweep
to
delay.
b.
With the
WR:
1.
Turn Right-MENU-SELECT to select SWP, START, or DLY BY.
2.
At SWP, turn Right-MENU-SELECT to select A or
B,
the sweep to
delay.
At START, turn Right-MENU-SELECT to select
A,
for a start event
defined by the A Trigger,
or
WR, for a start event defined by the
Word Recognizer.
At DL Y BY, turn Right-MENU-SELECT to select
B,
for delaying
events defined by the B Trigger, or
WR,
for delaying events defined
by the Word Recognizer.
5.
Push
the upper Trigger Mode button to display the delay-by-events
measurement
and
delay count. If the start event or delaying event is
defined by the Word Recognizer, the Word Recognizer Configuration
Menu
is
displayed next, before the delay-by-events measurement. See 'Word
Recognizer Operation."
2465A/2455A/2445A Operators 2-25
