Appendix C: Using Logo Generator
C-8 SPG600 & SPG300 Sync Pulse Generators User Manual
Miscellaneous Settings Dialog Box. The Miscellaneous Settings dialog box (see
Figure C-3) appears when you click the Miscellaneous command.

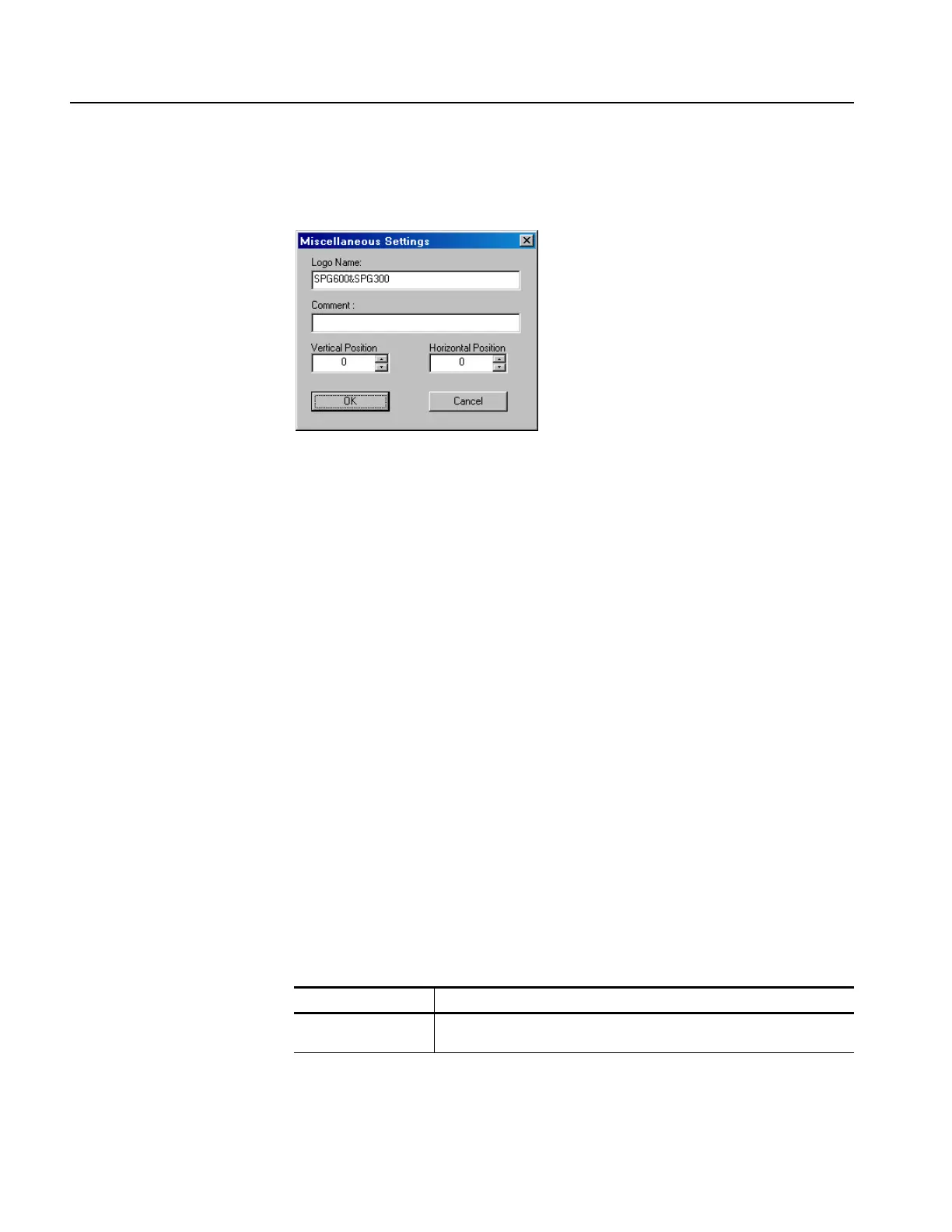

Figure C-3: Miscellaneous Settings dialog box
In this dialog box, you can set the following parameters:
Logo Name: Sets the logo name. This logo name is used when you select a
logo from the Logo submenu in the sync pulse generator. The default logo
name is the file name.
Comment: Sets the user comment to be described in the logo file. You need
not enter any comments in general use.
Vertical Position: Sets the vertical position where the logo is displayed on the
monitor. You can set the value from -100% to 0%. The vertical position can
also be set from the Logo submenu in the sync pulse generator.
Horizontal Position: Sets the horizontal position where the logo is displayed
on the monitor. You can set the value from -100% to 0%. The horizontal
position can also be set from the Logo submenu in the sync pulse generator.
OK button enables all of the settings in the dialog box and closes the dialog box.
Cancel button cancels all of the settings in the dialog box and closes the dialog box.
Help Menu
The Help menu contains command that display the version information about the
Logo Generator application. Table C-6 describes the Help menu command.
Table C-6: Help menu command
Command Function
About LogoGen Displays information including the Logo Generator software version
number and copyright information.
