Menus
3-6 SPG600 & SPG300 Sync Pulse Generators User Manual
Test Signal (Analog)
Submenu
This menu allows you to select a test signal for a analog output(s). Use the up (S)
or down (
T) arrow button to scroll through the menu. Figure 3-3 shows the Test
signal (analog) submenu diagram.

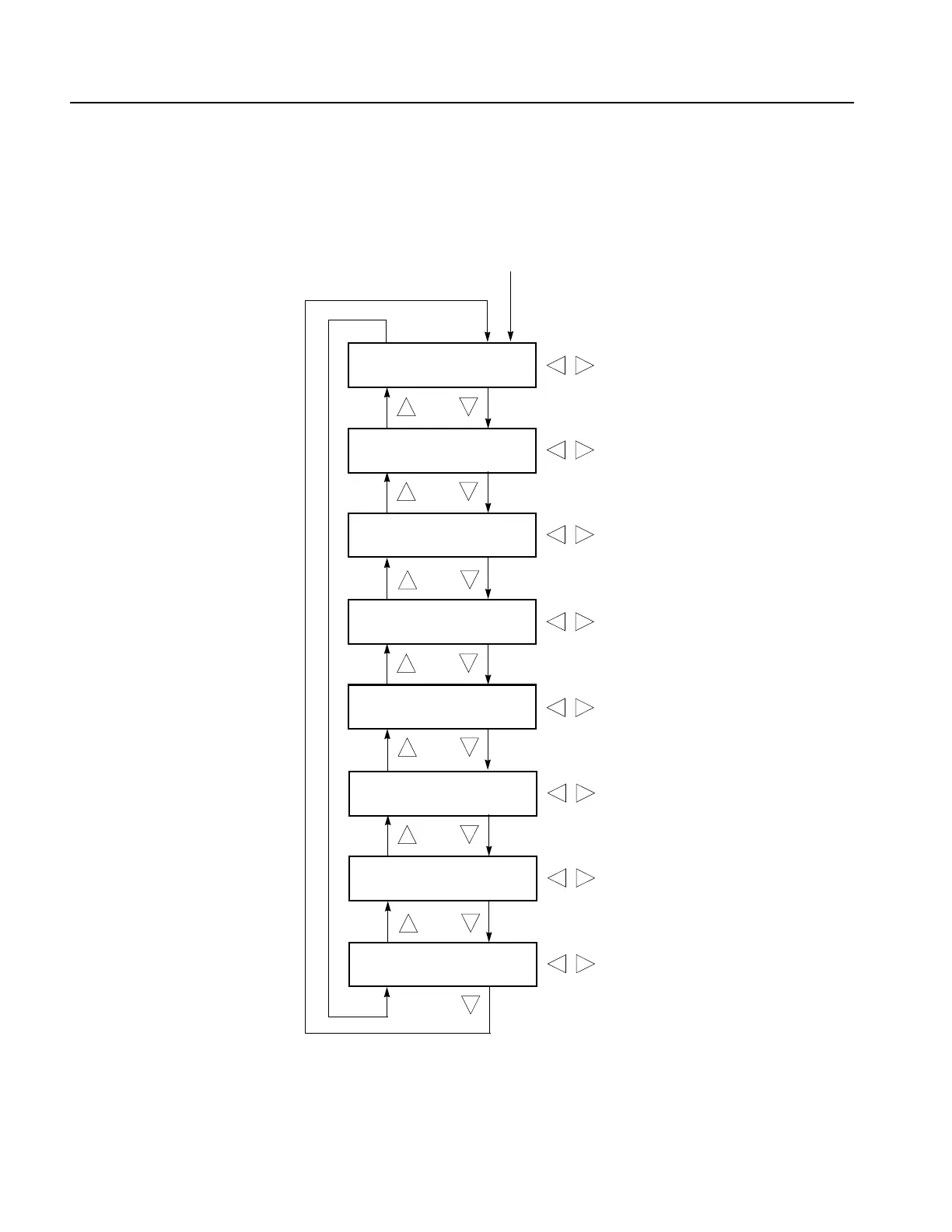

Figure 3-3: Test signal (analog) submenu diagram
Select TEST SIGNAL (ANALOG) in the Video menu
Select a signal
PULSE BAR
2T Pulse & Bar
SWEEP
100% Sweep
MULTIBURST
100% Multiburst
MONITOR
100% Red Field
LINEARITY
10 Step
FLAT FIELD
0% Flat Field
COLOR BAR
SMPTE Color Bars
Select a signal
OTHER
FCC Composite
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
Select a signal
