Timing (Analog) Submenu
This menu allows you to adjust the timing offset of the selected analog output
relative to the genlock signal or the internal reference signal. Use the up (
S) or
down (
T) arrow button to scroll through the menu. Figure 3-5 shows the Timing
(analog) submenu diagram.

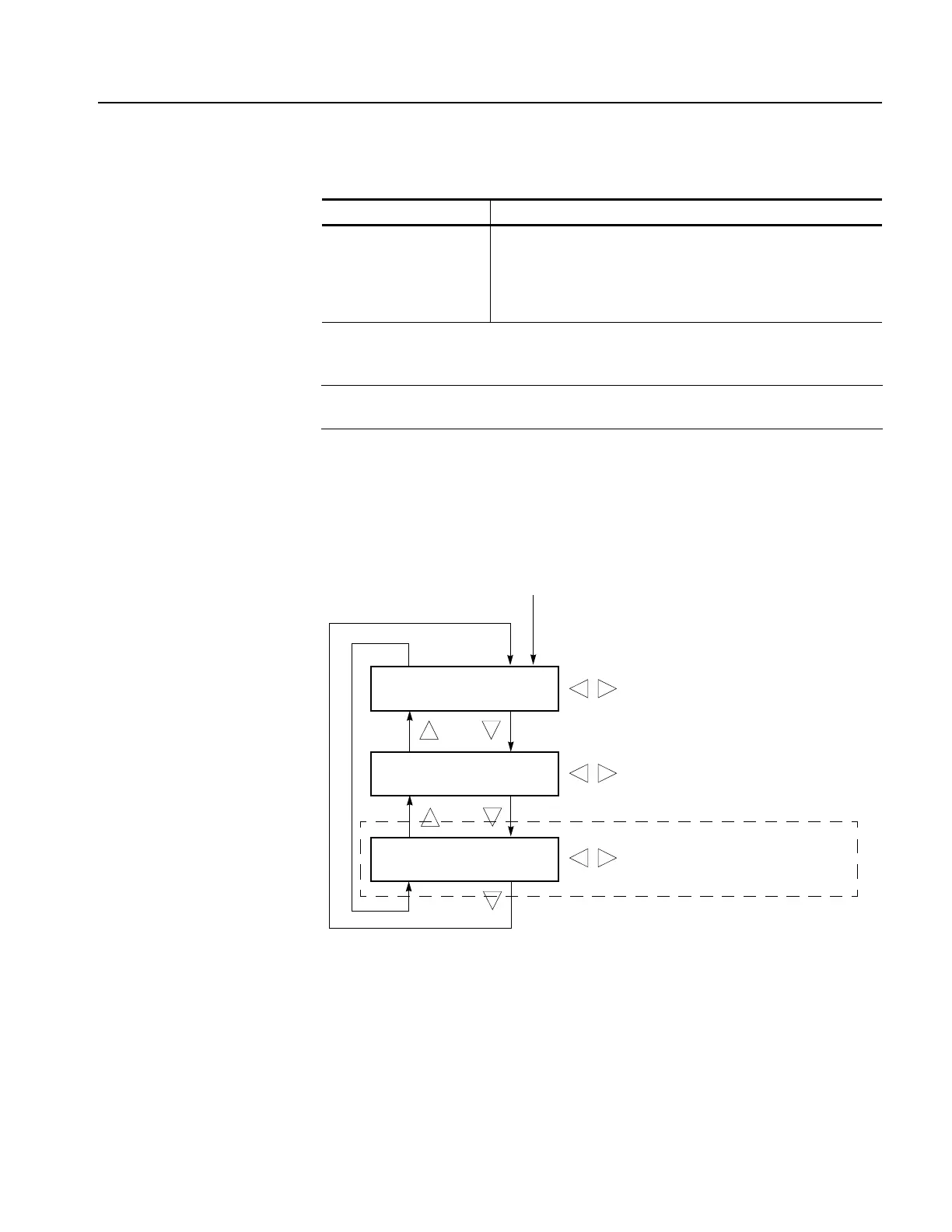

Figure 3-5: Timing (analog) submenu diagram
VERTICAL. Use the left (
W) or right (X) arrow button to adjust the vertical offset.
The value wraps around, so when the maximum value is reached the next value is
the minimum value. The range of the timing adjustment depends on the selected
video standard. Refer to Table 3-4 for the appropriate range.
REC 801 100% Colour Bars, 75% Colour Bars, Black, Grey, White,
End-of-Line Pulses, Black-White Ramp, Yellow-Grey Ramp,
Grey-Blue Ramp, Cyan-Grey Ramp, Grey-Red Ramp,
Cb-Y-Cr-Y Ramp, White End-of-Line, Blue End-o- Line,
Red End-of-Line, Yellow End-of-LIne, Cyan End-of-Line
* These signals are only available in SPG600 Option 03.
Table 3-3: Selectable signals in each signal set (SDI) (cont.)
Signal set name Selectable signals
NOTE. The contents of each signal set are subject to change without notice due to
continuous improvements of the instrument.
Select TIMING (ANALOG) in the VIDEO menu
Set the vertical timing in 1 line steps
Set the horizontal timing in 1 clock steps
Set the horizontal timing in 0.1 ns steps
TIMING : VERTICAL
0 Line (s)
TIMING : HORIZONTAL
0.0000
µsec
TIMING : FINE
0.0 nsec
Option 01 only
To Next Page
