Overlay Submenu
This menu allows you to select an item (logo or ID text) that is overlaid on the
output test signal, and to set the blinking mode for the overlay. Use the up (
S) or
down (
T) arrow button to scroll through the menu. Figure 3-7 shows the Overlay
submenu diagram.

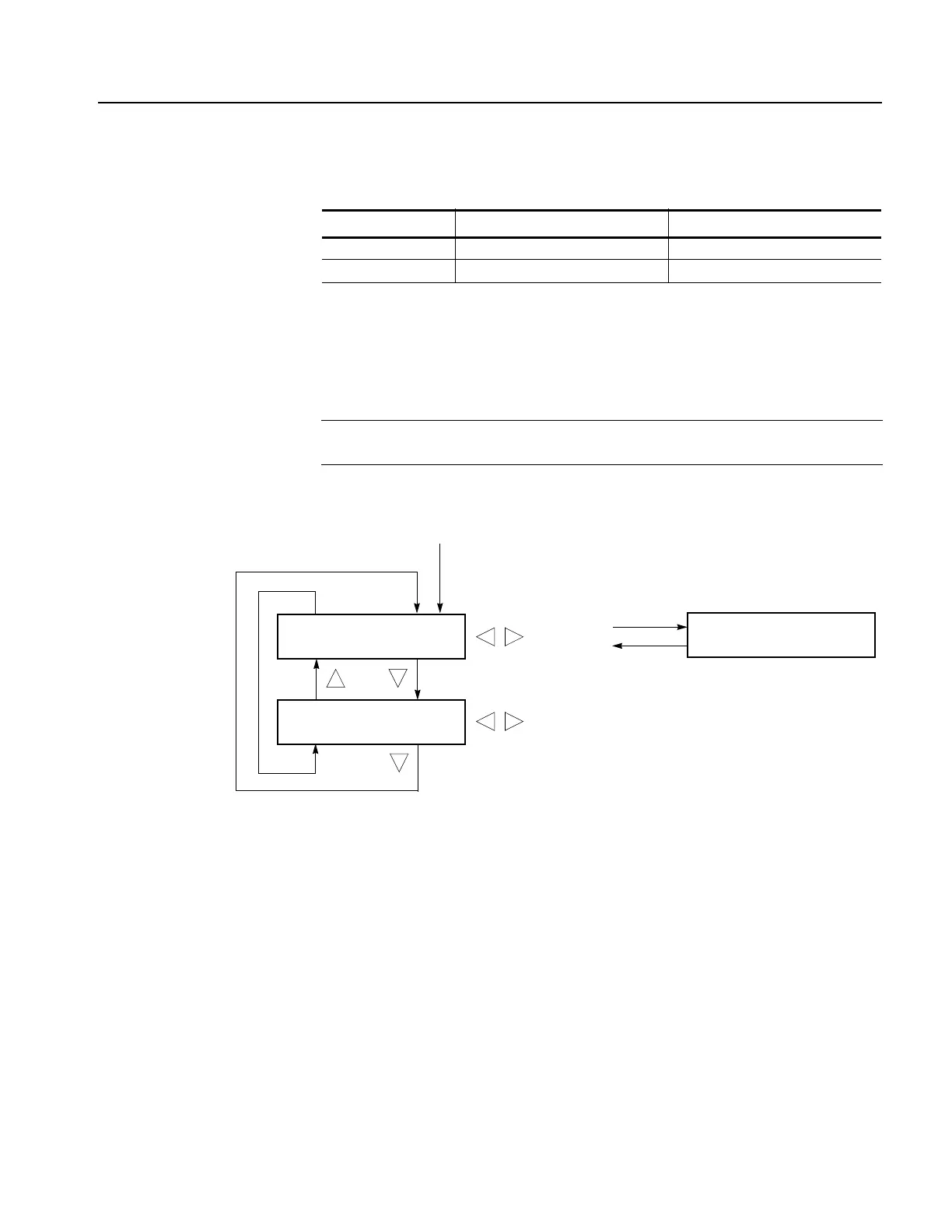

Figure 3-7: Overlay submenu diagram
Object. Selects an item that is overlaid on the output test signal. Use the left (
W) or
right (
X) arrow button to select Logo or ID Text. When you select either of these
items and then press the ENTER button, you will access the submenu for setting
that overlay. Refer to Logo Submenu on page 3-14 or ID Text Submenu on
page 3-15 for detailed information.
Blink. Sets the blinking mode for the overlay. Use the left (
W) or right (X) arrow
button to select OFF, Fast (blinks approximately at a 1.0 second interval) or Slow
(blinks approximately at a 2.0 second interval). Press the ENTER button to
confirm the selection.
Table 3-5: SDI output timing range
Format name Vertical settings (line)
Horizontal settings (
µs)
525-270 -525 to +525 -63.5556 to +63.5185
625-270 -625 to +625 -63.9630 to +63.9630
NOTE. The contents of the Overlay submenu are common for both analog and
serial digital signals except for the menu title on the first line (ANALOG or SDI).
Select OVERLAY in the Video menu
ENTER
CANCEL
To Logo submenu (page 3-14)
To ID text submenu (page 3-15)
