Menus
3-20 SPG600 & SPG300 Sync Pulse Generators User Manual
Delay. Adjust the timing offset of the audio signal outputs relative to the internal
reference signal (frame reset signal). Use the left (
W) or right (X) arrow button to
change the value. You can set the value from -160 ms to +160 ms (PAL) in 1 µs
steps. A plus timing value is set as Delay and minus timing value is set as Advance.
Embedded Submenu
This menu allows you to enable or disable the generation of embedded audio, select
an audio channel, set the state of the audio emphasis bits, and set the resolution of
the serial digital audio signal data. Use the up (
S) or down (T) arrow button to
scroll through the menu. Figure 3-13 shows the Embedded submenu diagram.

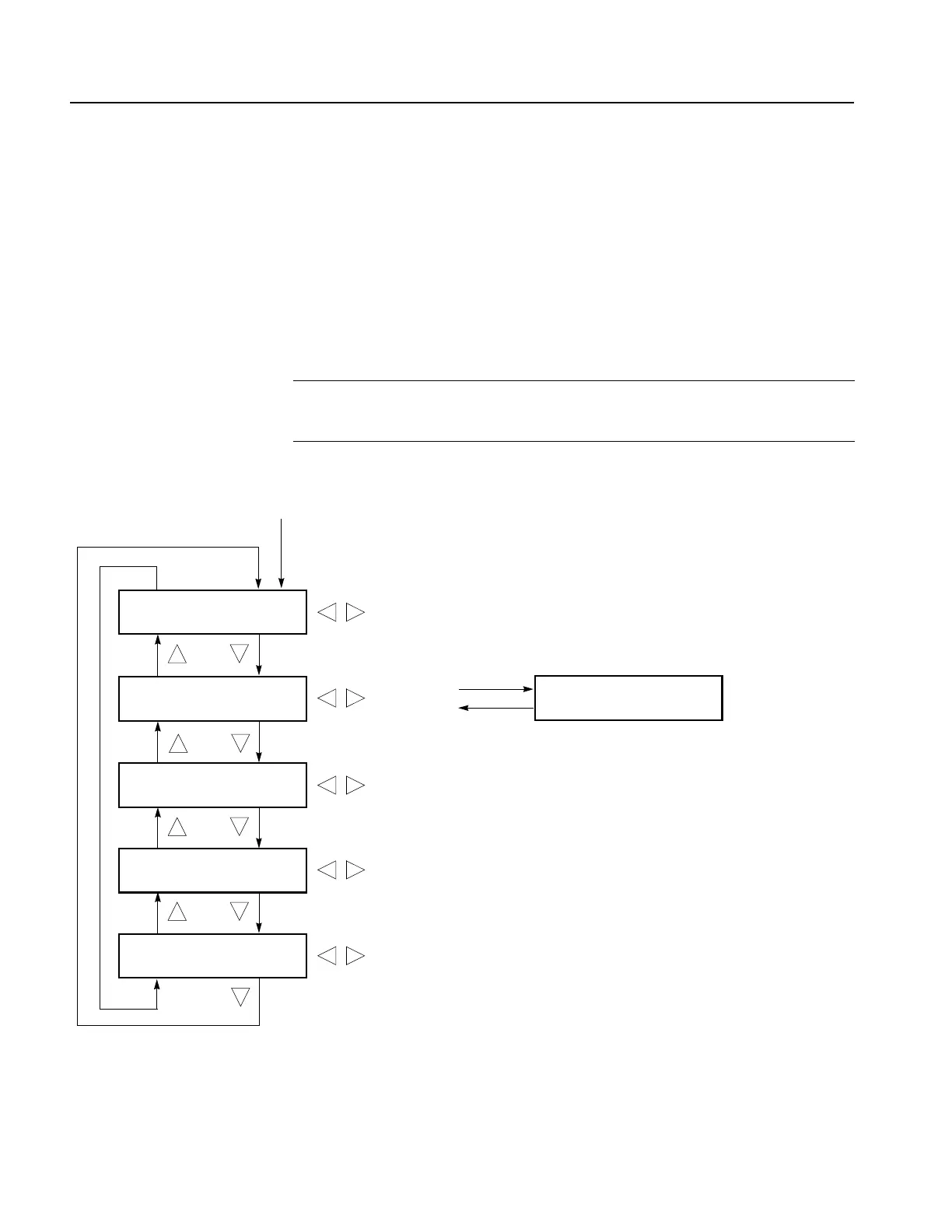

Figure 3-13: Embedded submenu diagram
NOTE. The contents of the Embedded submenu are common for the serial digital
black signals and the serial digital test signals except for the menu title on the first
line.
Status: Disable
Status: Enable
Emphasis: NO
Emphasis: CD
Emphasis: CCITT
STD/BLK : GRP-1
■ Resolution: 20 bits ↵
STD/BLK : GRP-1
■ Sync: Frame ↵
STD/BLK : GRP-1
■ Emphasis: NO ↵
STD/BLK : GRP-1
Channel: 1
STD/BLK : GRP-1
■ Status: Disable ↵
Select EMBEDDED in the Audio menu
ENTER
CANCEL
To Audio Channel submenu
(page 3-21)
Channel: 1
Channel: 2
Channel: 3
Channel: 4
Channel: ALL
Sync: Frame
Sync: w/o Frame No
Sync: Async
Resolution: 20 bits
Resolution: 24 bits
To Next Page
