Menus
SPG600 & SPG300 Sync Pulse Generators User Manual 3-15
ID Text Submenu
This menu allows you to edit and position a text string that is overlaid on the output
test signal. Use the up (
S) or down (T) arrow button to scroll through the menu.

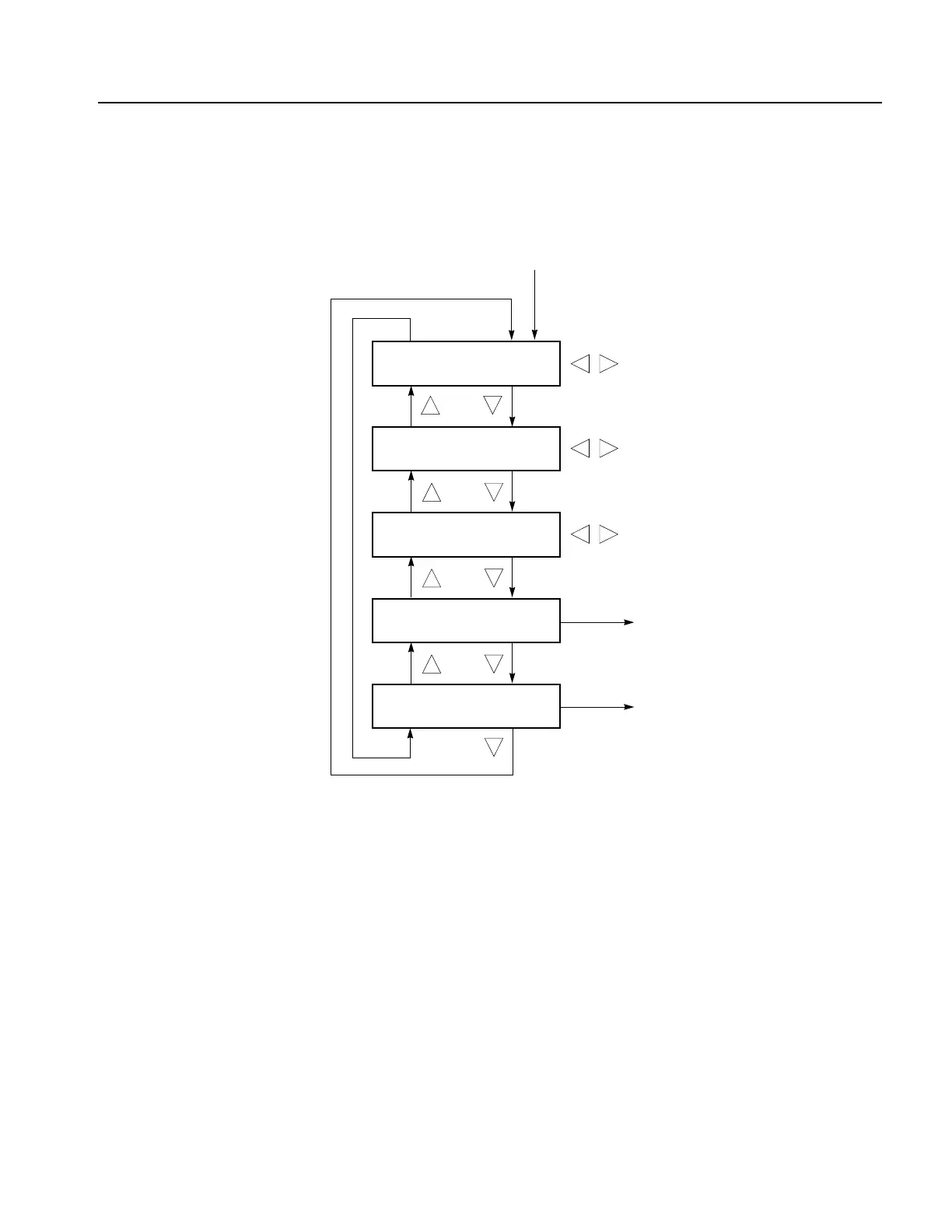

Figure 3-9 shows the ID text submenu diagram.
Figure 3-9: ID text submenu diagram
Status. Enables or disables the text overlay. Use the left (
W) or right (X) arrow
button to select between Disable and Enable. Press the ENTER button to confirm
the selection.
X. Sets the horizontal position of the text. The position is set as a percentage of
active picture width. Use the left (
W) or right (X) arrow button to change the
position. You can set the value from -100.0% to 0.0% in 1% steps.
Y. Sets the vertical position of the text. The position is set as a percentage of active
picture width. Use the left (
W) or right (X) arrow button to change the position.
You can set the value from -100.0% to 0.0% in 1% steps.
Select ID Text in the Overlay submenu
Disable
Enable
Set the horizontal position
Save the text to the signal file
: ID TEXT
■ Status: Disable ↵
: ID TEXT
X : 10.0 %APH
: ID TEXT : SAVE
Press ENTER
↵
Set the vertical position
: ID TEXT
Y : 80.0 %APH
ENTER
Edit text
: ID TEXT : EDIT
ENTER
