Disassembly
7-6
TCPA300/400 Amplifiers and TCP300/400 Series Current Probes Instruction Manual
4. Remove the 4 screws that secure the left-side inner panel to the chassis. See
Figure 7--3.
Left--side panel
Amplifier
Screws (4)
Torque screws to 8 in-lbs
when reassembling

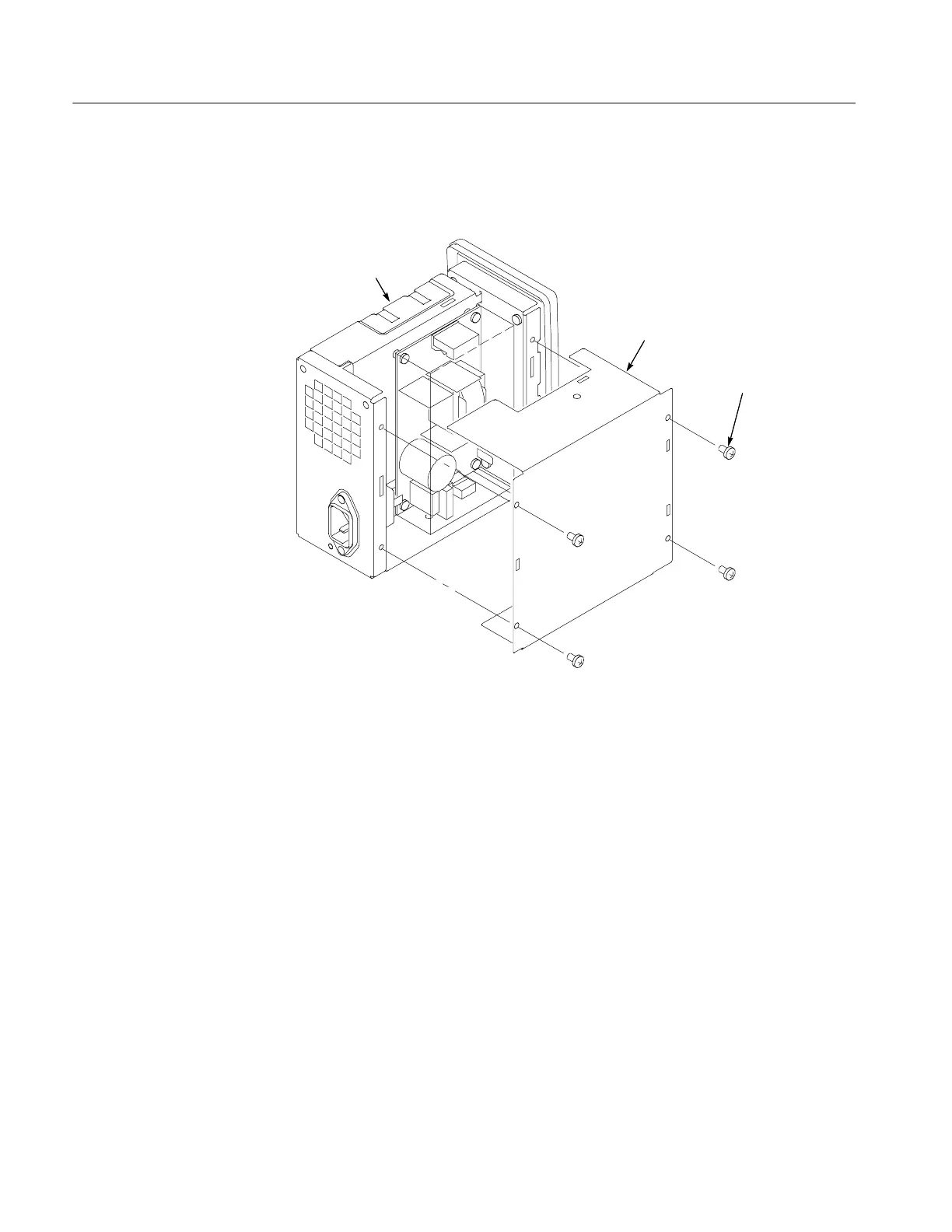

Figure 7- 3: Removing the left-side inner panel
You now have exposed access to the amplifier adjustments. If you need to
replace any of the internal components, refer to the following instructions.
