Specifications
4-4
TCPA300/400 Amplifiers and TCP300/400 Series Current Probes Instruction Manual
Mechanical characteristics of the probes are listed in Table 4--4.
Table 4- 4: Probe mechanical characteristics
TCP305 and TCP312 TCP303 and TCP404XL
Probe dim ensions
Length:..............
Width:..............
Height:..............
20 cm (7.77 i nches)
1.6 cm (0.625 inches)
3.2 cm (1.25 inches)
268 cm (10.55 i nches)
41 cm (1.60 i nches)
156 cm (6.13 i nches)
Cable length 1.5 m (5 feet) TCP303: 2 m (6.6 feet)
TCP404XL: 8 m (26.25 feet)
Weight 0.15 kg (0.33 lb) TCP303: 0.66 kg (1.45 lb)
TCP404XL: 0.88 kg (1.90 lb)
TCP305 and TCP312
TCP303 and TCP404XL
41 mm
(1.6 in)
67 mm
(2.7 in)
21 mm
(0.83 in)
25 mm
(1.0 in)
11.9 mm
(0.470 in)
18.9 mm
(0.745 in)
Maximum wire size
3.8 mm (0.15 in)
Maximum wire size
21 mm (0.83 in)

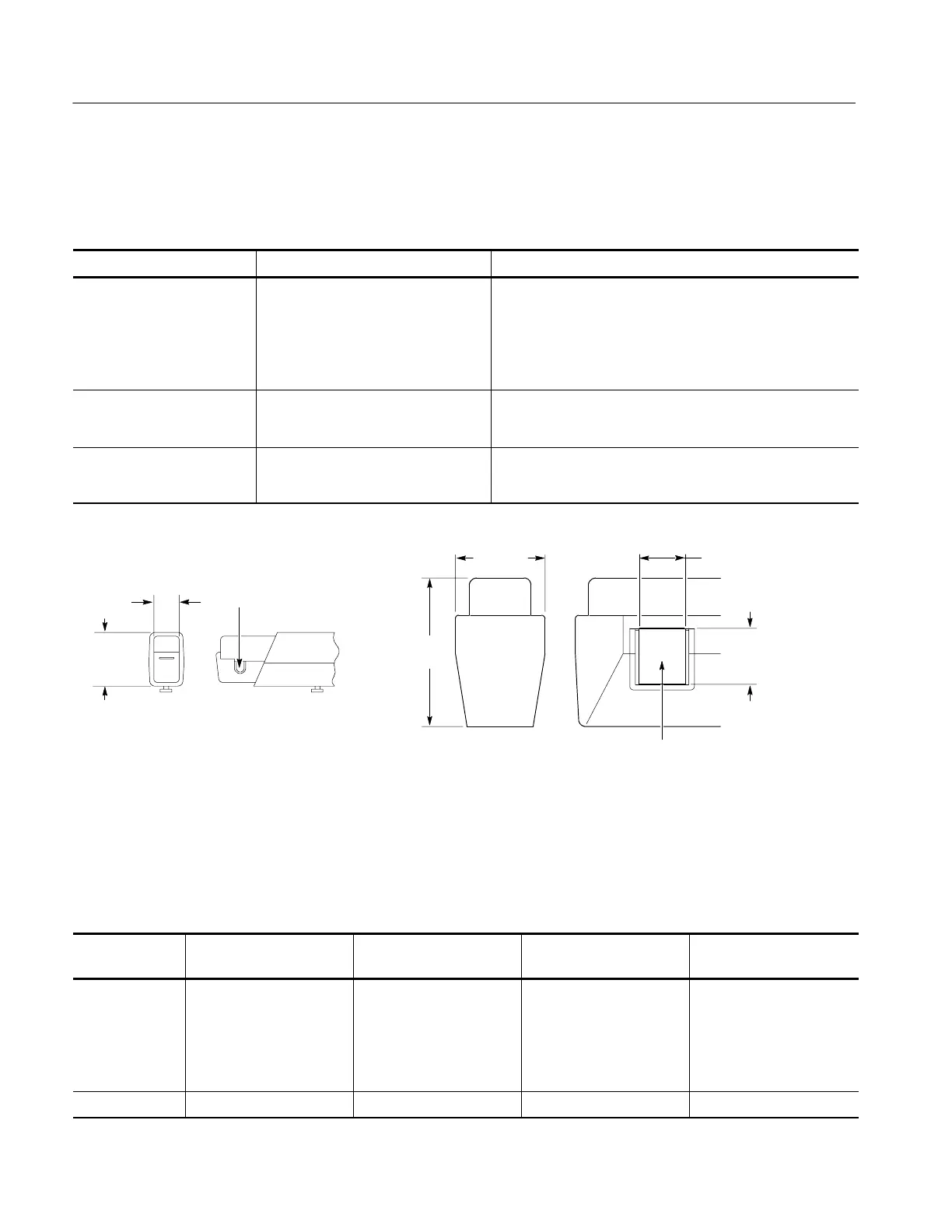

Figure 4- 1: Probe jaw dimensions (nominal)
Shipping weights and dimensions are listed in Table 4--5.
Table 4- 5: Shipping weights and dimensions
TCPA300 and TCPA400
Amplifiers
TCP305 and TCP312
Current Probes
TCP303
Current Probe
TCP404XL
Current Probe
Dimensions
Length:.......
Width:.......
Height:.......
298.5 mm (11.75 inches)
298.5 mm (11.75 inches)
254 mm (10.00 inches)
330 mm (13.00 inches)
254 mm (10.00 inches)
108 mm (4.25 inches)
375 mm (14.75 inches)
318 mm (12.50 inches)
127 mm (5.00 inches)
375 mm (14.75 inches)
318 mm (12.50 inches)
127 mm (5.00 inches)
Weight 2.7 k g (6.00 lb) 0.585 kg (1.29 l b) 1.33 kg (2.93 lb) 1.55 kg (3.42 l b)
