Specifications
TCPA300/400 Amplifiers and TCP300/400 Series Current Probes Instruction Manual
4-13
Duty cycle (%)
0102030405060
5
10
15
20
25
Maximum measurement
time (min)
0
300A Continuous
400A Continuous
500A Continuous
200A Continuous
0A Continuous
Measuring 750A at 23 _C ambient

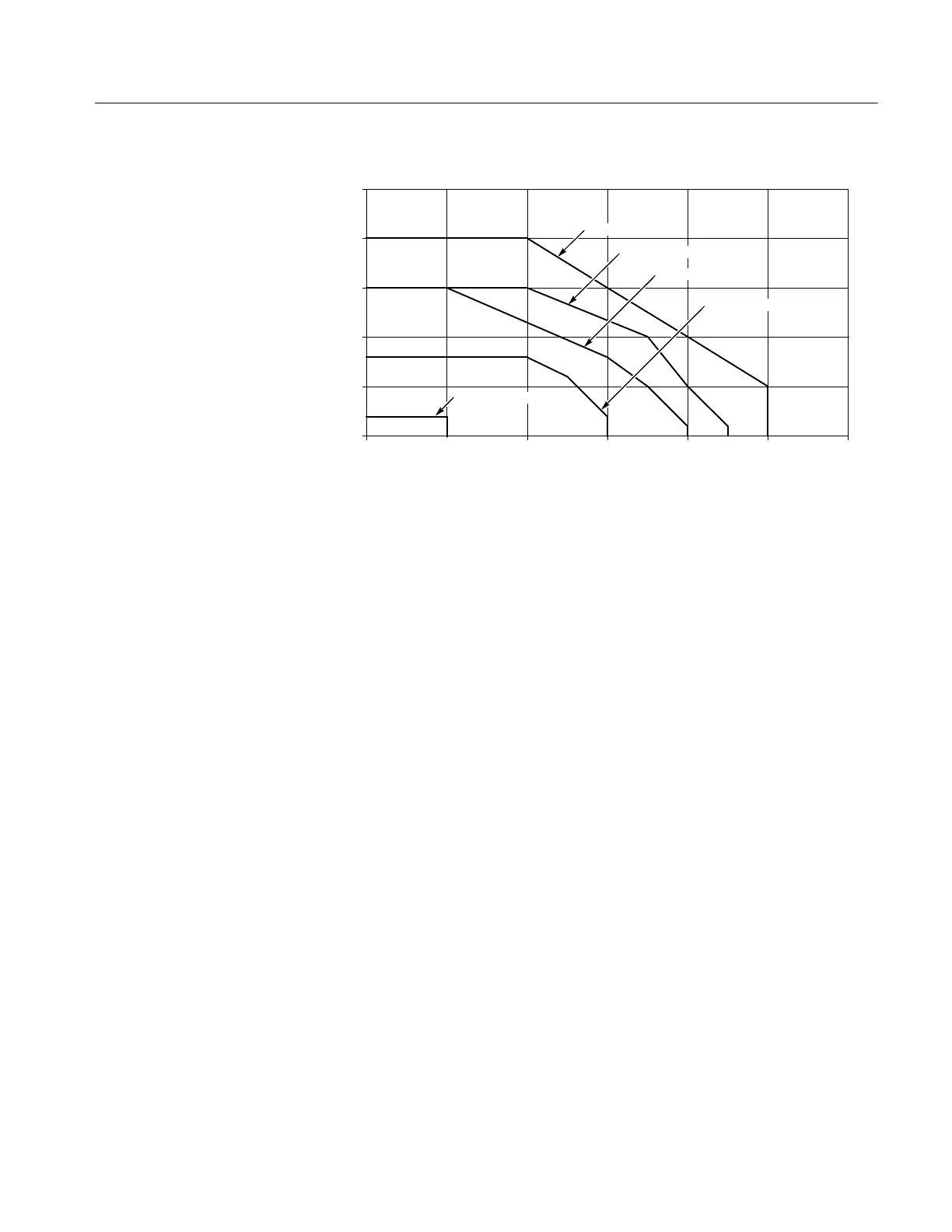

Figure 4- 10: Measuring 750A noncontinuous at 23 °C ambient temper ature
At 23 degrees ambient temperature, 600 A can be measured continuously with
the TCP404XL probe.
