Reference
Key Po ints
Cursor Movemen
t. Use the multipurpose knob to move Cursor 1 or Cursor 2.
You can move the cursors only while the Cursor Menu is displayed. The active
cursor is represented by a solid line.

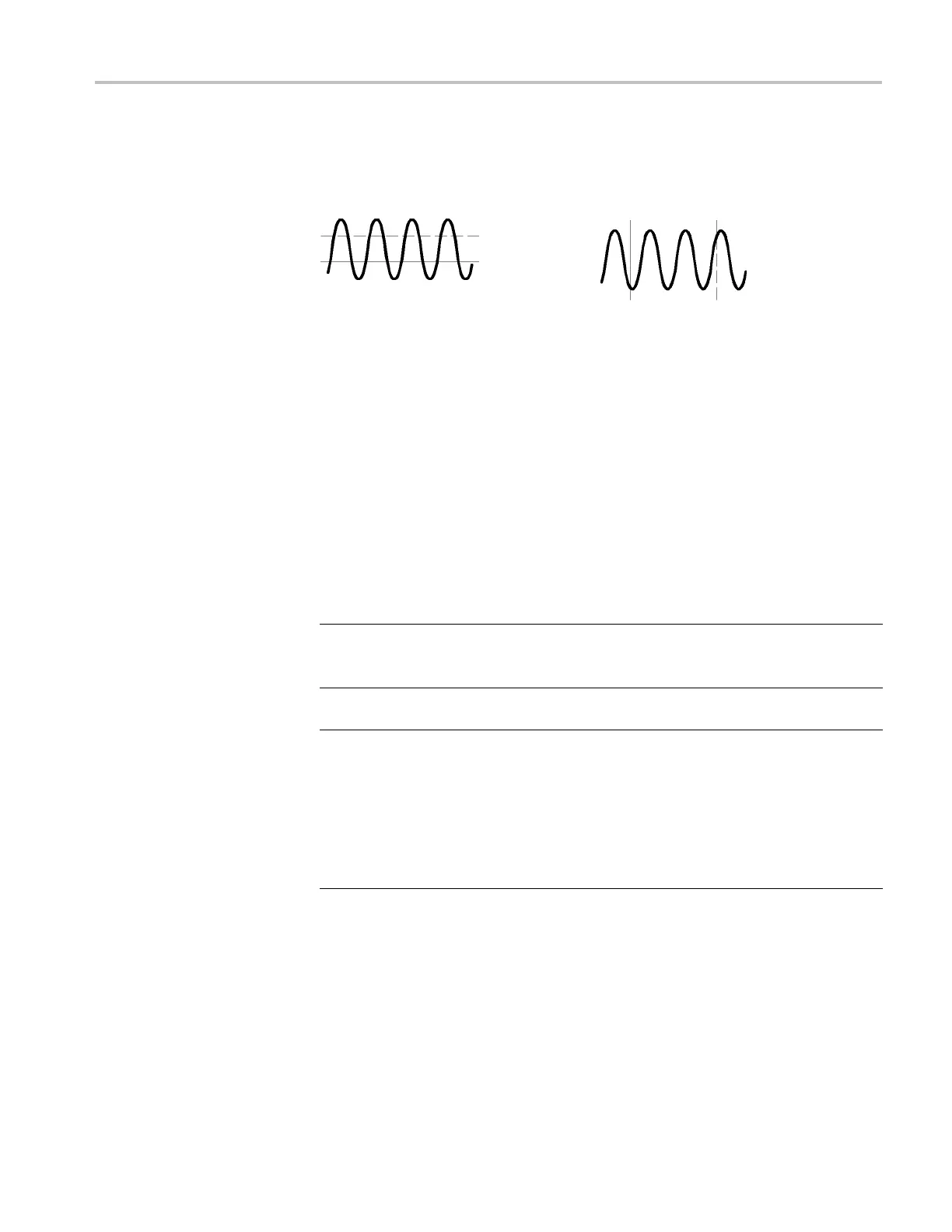

Amplitude cursors Time cursors
Default Setup
Push the Default Setup button to recall most of the factory option and control
settings, but not all. Appendix D lists the default settings that will be recalled.
Display
Push the Display button to choose how waveforms are presented and to change
the appearance of the entire display.
Options Settings Comments
Ty pe Ve ctors, Dots
Vectors fill the space between adjacent
sample points in the display
Dots display only the sample points
Persist
OFF, 1 sec, 2 sec,
5sec,Infinite
Sets the length of time each displayed
sample point remains displayed
Format YT, XY
YT format displays the v ertical voltage in
relation to time (horizontal scale)
XY format displays a dot each time a sample
is acquired on channel 1 and channel 2
Channel 1 voltage or current determines the
X coordinate of the dot (horizontal) and the
channel 2 voltage or current determines the
Y coordinate (vertical)
De
pending on the type, waveforms will be displayed in three different styles:
solid, dimmed, and broken.
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual 83
