Operating Basics
1menu)buttona
nd then push the top option button to cycle through the
Vertical (channel) Coupling options.
In some lists, you can use the multipurposeknobtoselectanoption.Ahint
line tells you when the multipurpose knob can be used, and an LED by the
multipurpose knob lights when the knob is active. (See page 15, Menu and
Control Buttons.)
Action: The oscilloscope displays the type of action that w ill immediately
occurwhenyoupushanActionoptionbutton. For example, when the Help
Index is visible, and you push the Page Down option button, the oscilloscope
immediately displays the next page of index e ntries.
Radio: The oscilloscope uses a different button for each option. The
currently-selected option is highlighted. For example, the oscilloscope
displays various acquisition mode options when you push the Acquire Menu
button. To select an option, push the corresponding button.

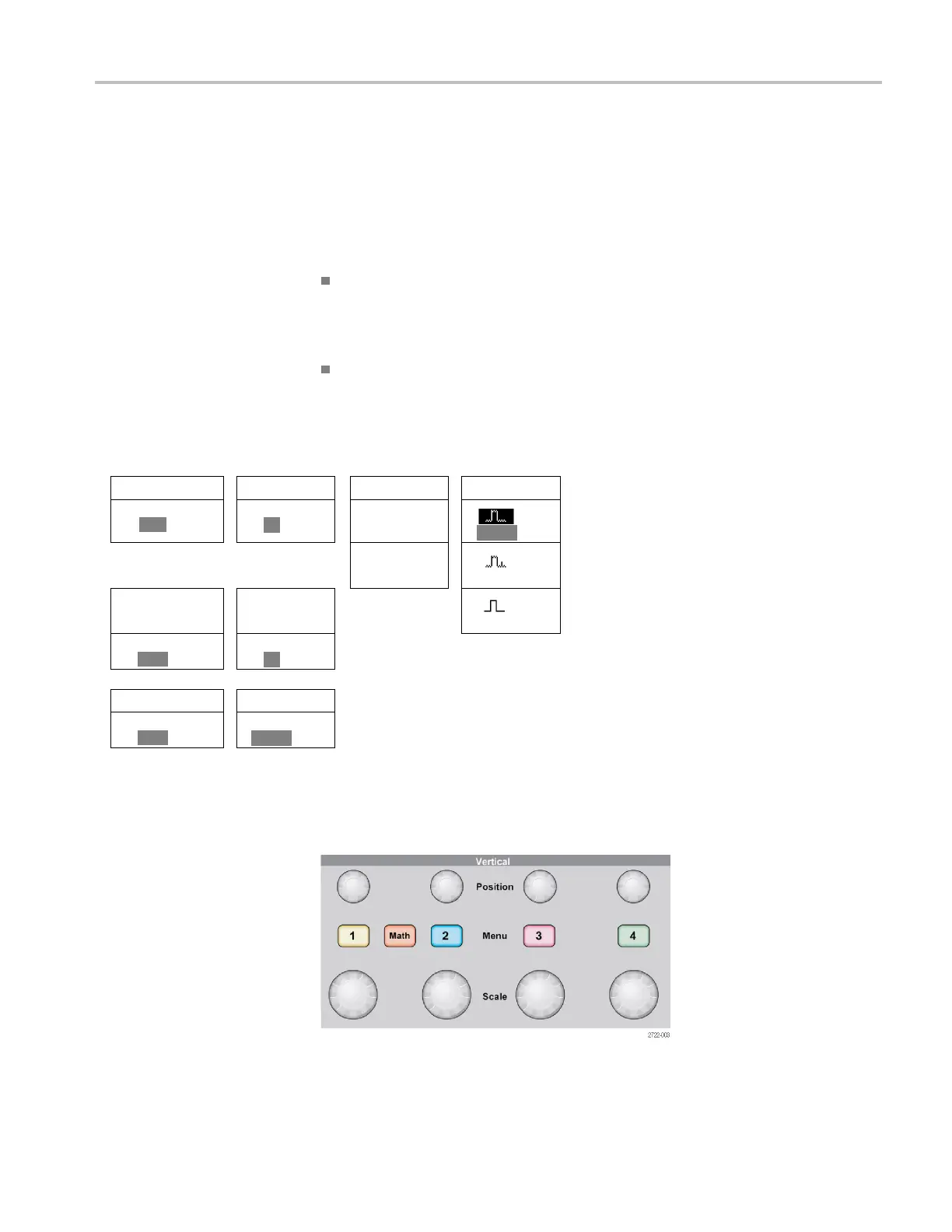

Page Selection Circular List
Action Radio
TRIGGER CH1
HELP
ACQUIRE
Type
Edge
Coupling
DC
Page
Up
Sample
or or
Page
Down
Peak Detect
TRIGGER CH1
Average
Type
Video
Coupling
AC
or or
TRIGGER CH1
Type
Pulse
Coupling
Ground
Vertical Controls
All models, 4-channel shown
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual 13
