Tektronix TDS2000C series User Manual

Reference

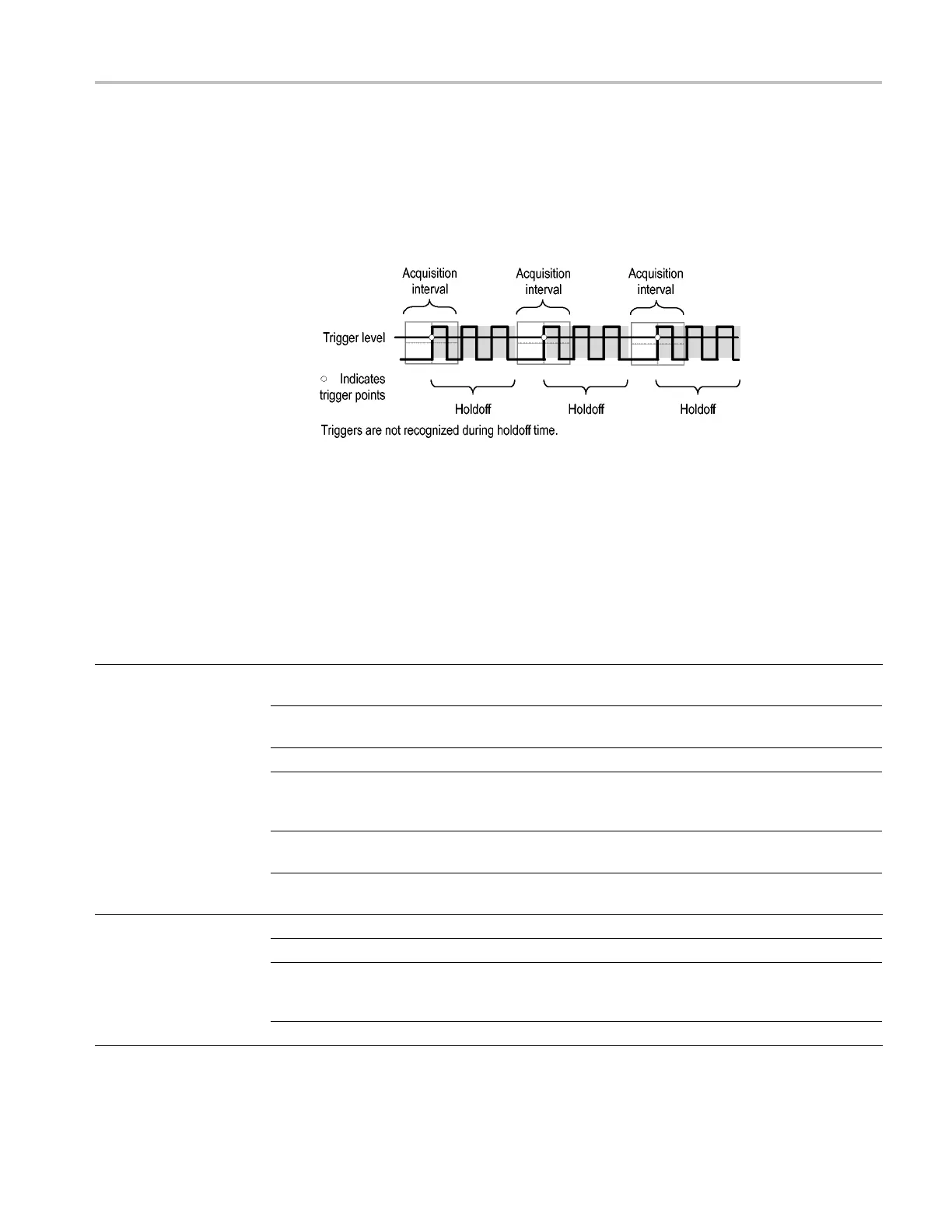

Holdoff. You ca
n use the Trigger Holdoff function to produce a stable display of
complex waveforms, such as pulse trains. Holdoff is the time between when
the oscilloscope detects one trigger and when it is ready to detect another. The
oscilloscope will not trigger during the holdoff time. For a pulse train, you can
adjust the holdoff time so the oscilloscope triggers only on the first pulse in the
train.
To use Tri
gger Holdoff, push the Horiz ► Set Trigger Holdoff option button
and use the multipurpose k nob to adjust the holdoff. The resolution of the trigger
holdoff varies depending on the horizontal scale setting.
Utility
Push the Utility button to display the Utility Menu.
Optio
ns
Setti
ngs
Comme
nts
Sourc
e
Define
s the source of the waveforms against w hich to run
the template waveform
Compare To Specifies the limit test template against w hich to compare
the signals defined with the Source menu item.
Run/Stop Test
Toggles between whether to start or stop the limit test
Template Setup Sets up a limit test waveform template. This is the mask
si
gnal you define as the boundary to compare with the input
source signal. Do this before running a limit test
Ac
tion on Violation
Defines the actions the oscilloscope will take after detecting
a violation
Limit Test
(Not
available on
TDS1000C-EDU models)
Stop After Defines the conditions that will cause the oscilloscope to
e
nd limit testing
Data Logging
Sets the data logging feature on or off
Source Sets the signal source to log data from
Duration
Sets the time duration of data logging in half hour increments,
from 0.5 hour to 8 hours, or in one hour increments, from 8
hours to 24 hours, or to indefinite
Data Logging
(Not available on
TDS1000C-EDU models)
Select Folder Sets the folder to save the waveform data to
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual 101
