Application Examples
11. Turn the multip
urpose knob to place a cursor at the point where the waveform
crosses the second graticule line below center screen. This is the 10% level
of the waveform.
12. Push the Cursor 2 option button.
13. Turn the mul
tipurpose knob to place a cursor at the point where the waveform
crosses the second graticule line above center screen. This is the 90% level
of the waveform.

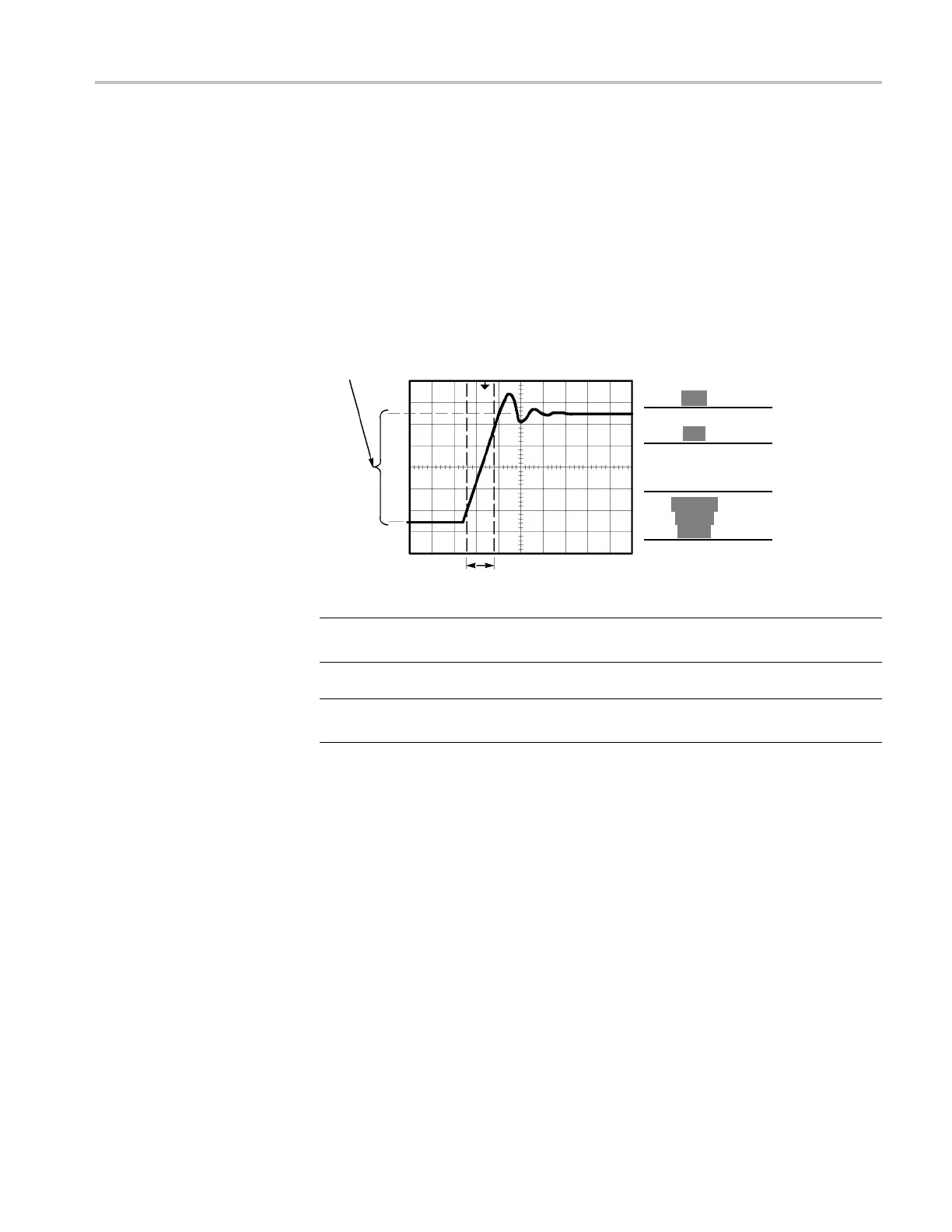

The Δt readout in the Cursor Menu is the rise time of the waveform.
5 divisions
Type
Time
Source
CH1
Δt 140.0ns
1/Δt 7.143MHz
ΔV 2.08V
Cursor 1
-80.0ns
-1.02V
Cursor 2
60.0ns
1.06V
NOTE. The Rise Time measurement is available as an automatic measurement in
the M easure Menu. (See page 89, Taking Measurements.)
NOTE. The Rise Time measurement also disp lays when you select the Rising Edge
option in the AutoSet Menu. (See page 81, Square Wave or Pulse.)
TDS2000C and TDS1000C-EDU Series Oscilloscope User Manual 39
