ELF System
Copper / Fiber :: ELF Family
1.3.3 ELF Wall Bracket (Model ELF-0000-0600)
Wall-mount bracket for one, total front access ELF module (ELF-3006-1100, ELF-3006-1800, ELF-3004-1800, or
ELF -0005-0001). Wall-mounting hardware is not included.
4.50 (114.3)
0.12
(3.0)
6.00 (152.4)
4.50 (114.3)
1.78
(54.2)
1.00 (25.4)
2.25 (57.2)
4.00 (101.6)
Grounding Hardware Included
#4 Lockwasher
#4 Lug for 16-14 AWG
Note: Dimensions are in in. (mm)

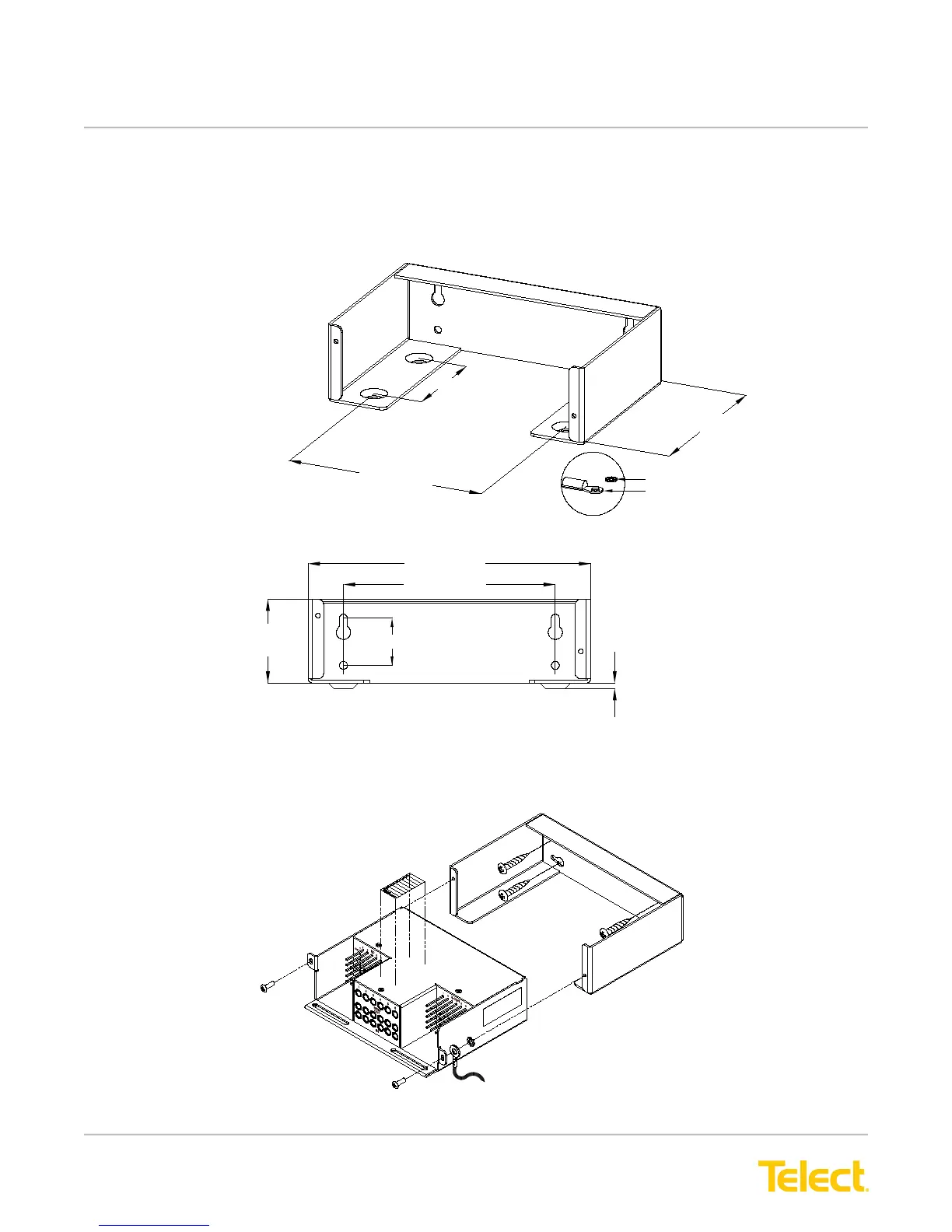

Figure 7 - ELF Wall Bracket Dimensions
The following illustration shows a typical installation.
Figure 8 - Typical ELF Wall Bracket Installation
